Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel (IP) cluster trim plate. Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER .
Remove the radio screws.

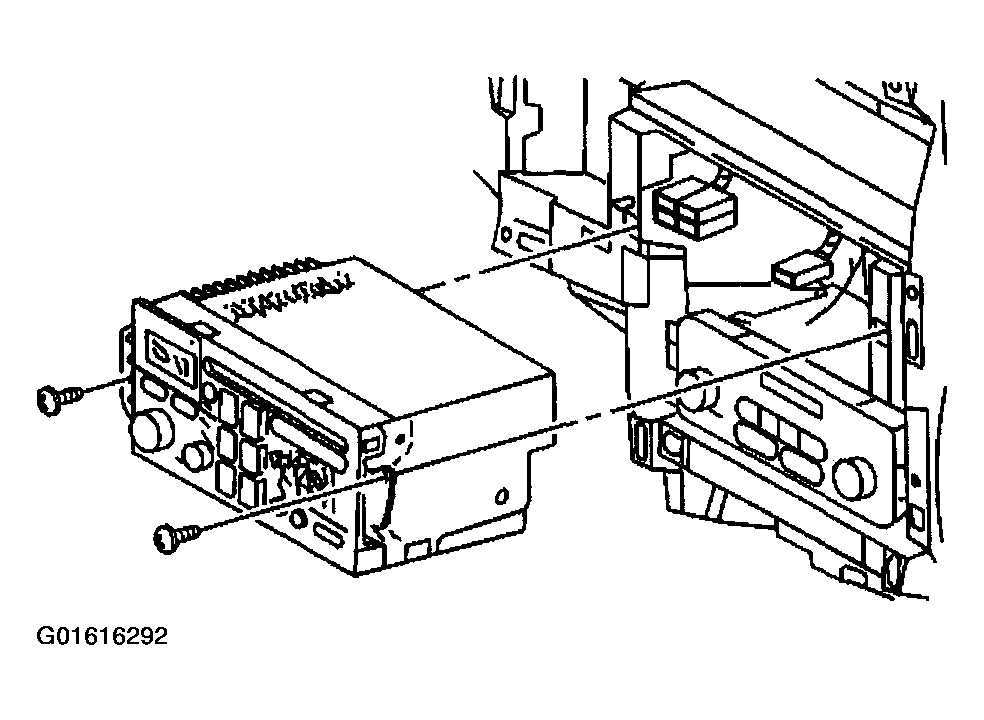

Fig 1: Radio Screws
Courtesy of GENERAL MOTORS CORP.
Pull the radio away from the IP.
Disconnect the electrical/audio electrical connectors from the radio.
Disconnect the coaxial cable connector from the radio.
Remove the radio.

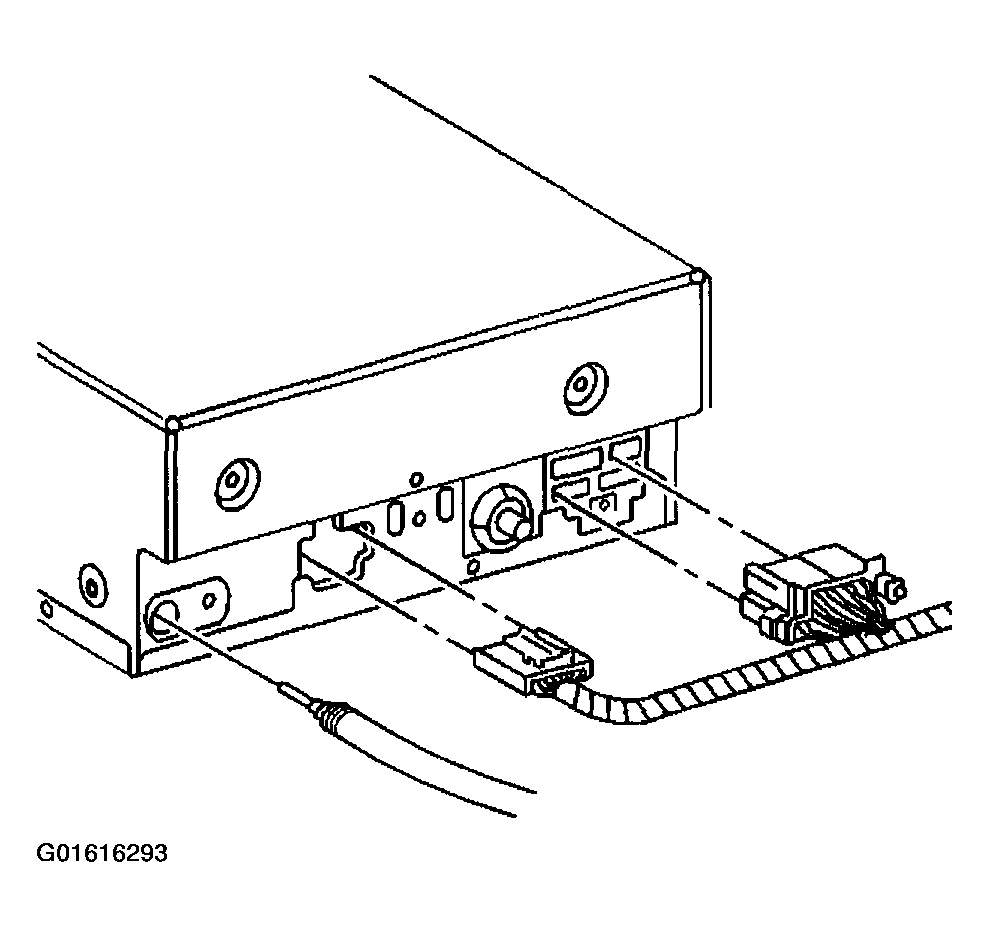

Fig 2: Radio, Electrical/Audio Electrical Connectors & Coaxial Cable Connector
Courtesy of GENERAL MOTORS CORP.
