Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb(s) to the overhead console lamp socket(s).

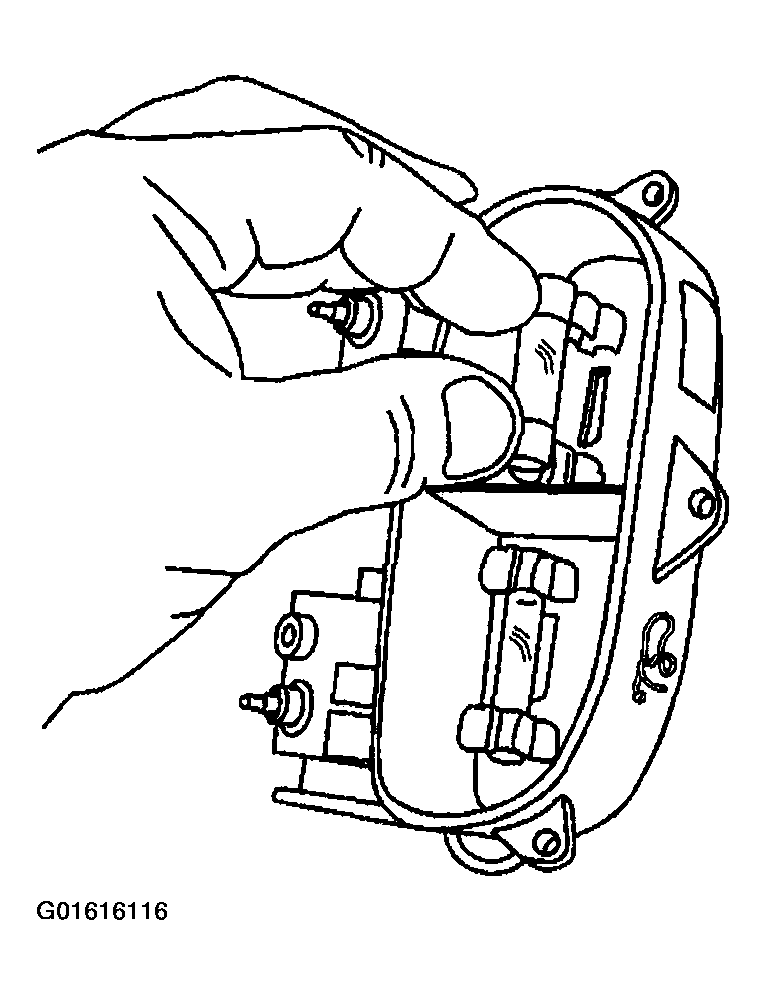

Fig 1: Installing Bulbs
Courtesy of GENERAL MOTORS CORP.
Position the lamp lens and the bezel to the overhead console lamp housing.

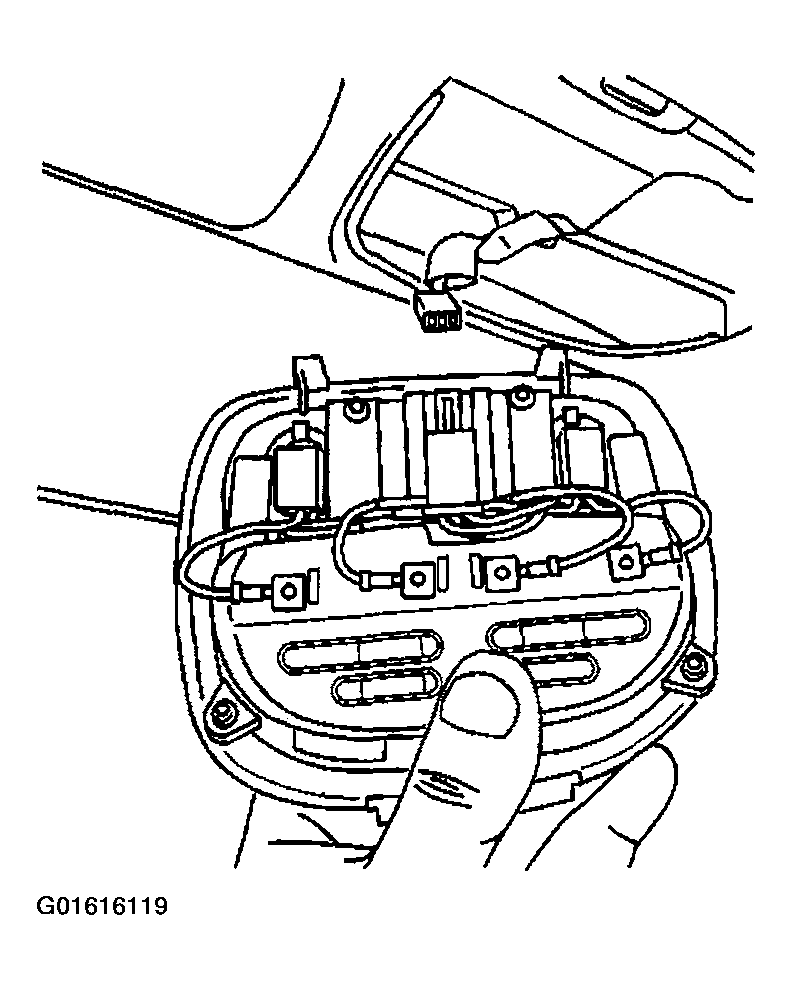

Fig 2: Positioning Bezel & Lens To Lamp Housing
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the overhead console lamp housing screws.
Tighten

Tighten the screws to 11 N.m (97 lb in).

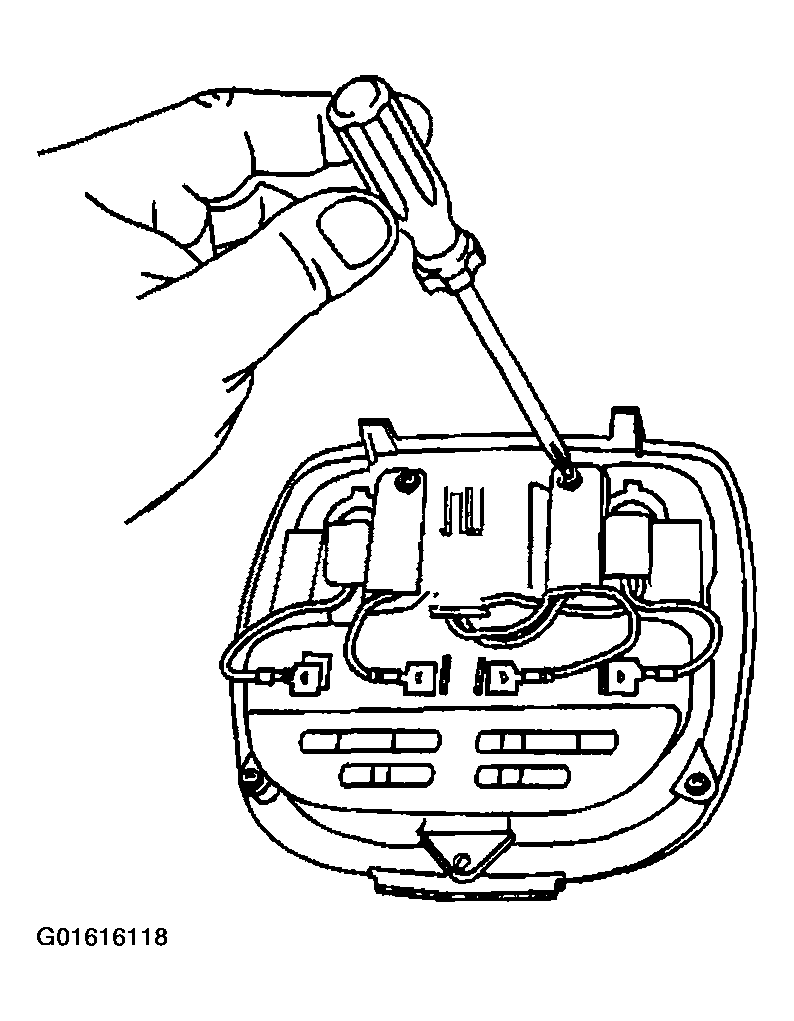

Fig 3: Installing Overhead Console Lamp Housing Screws
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the overhead console lamp.

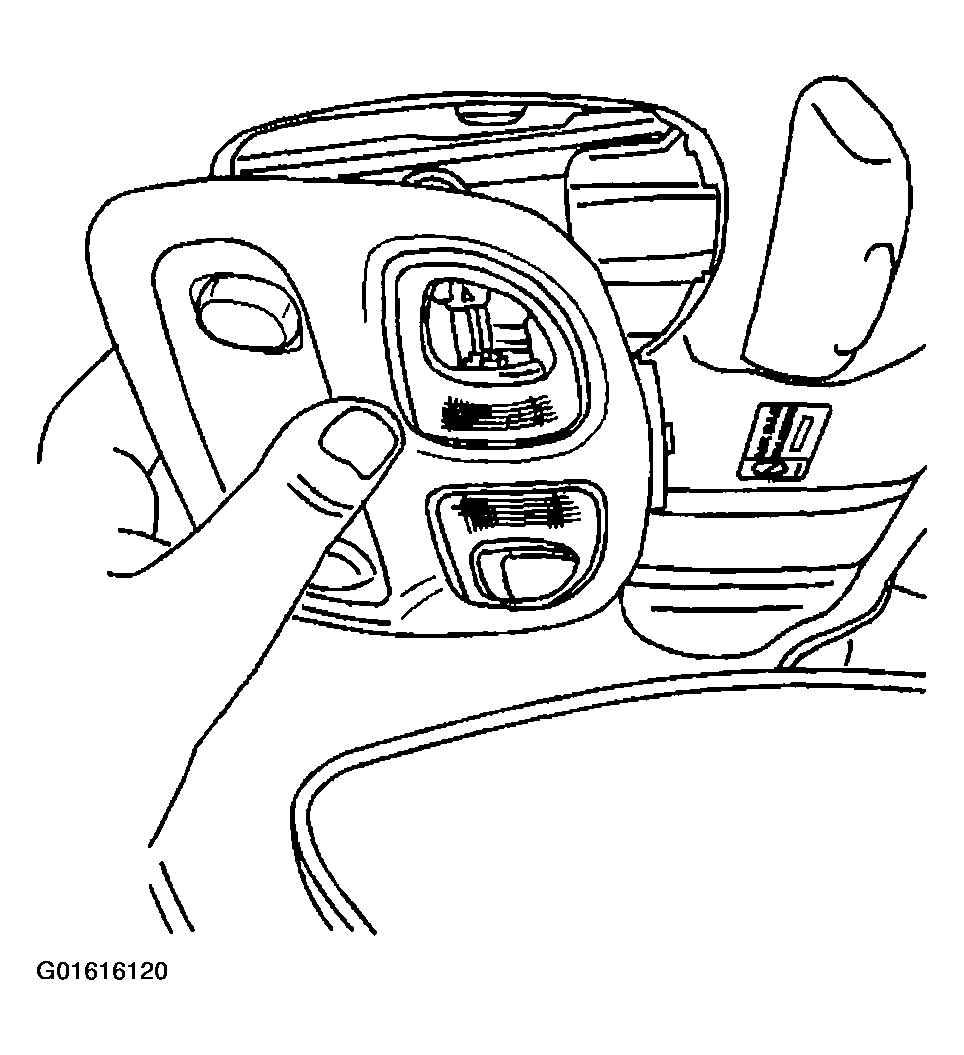

Fig 4: Connecting Electrical Connectors To Overhead Console Lamp
Courtesy of GENERAL MOTORS CORP.
Position the forward locating tab of the overhead console lamp bezel to the overhead console.

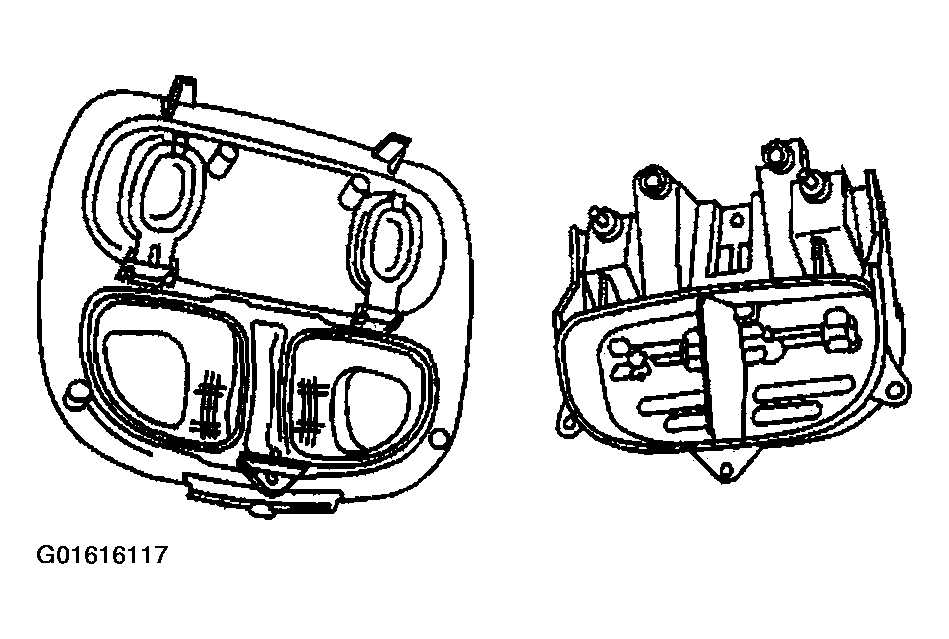

Fig 5: Positioning Forward Locating Tab Of Lamp Bezel To Overhead Console
Courtesy of GENERAL MOTORS CORP.
Position the 2 rear retaining tabs to the overhead console.
Install the overhead console lamp bezel pressing the bezel into place until fully seated.

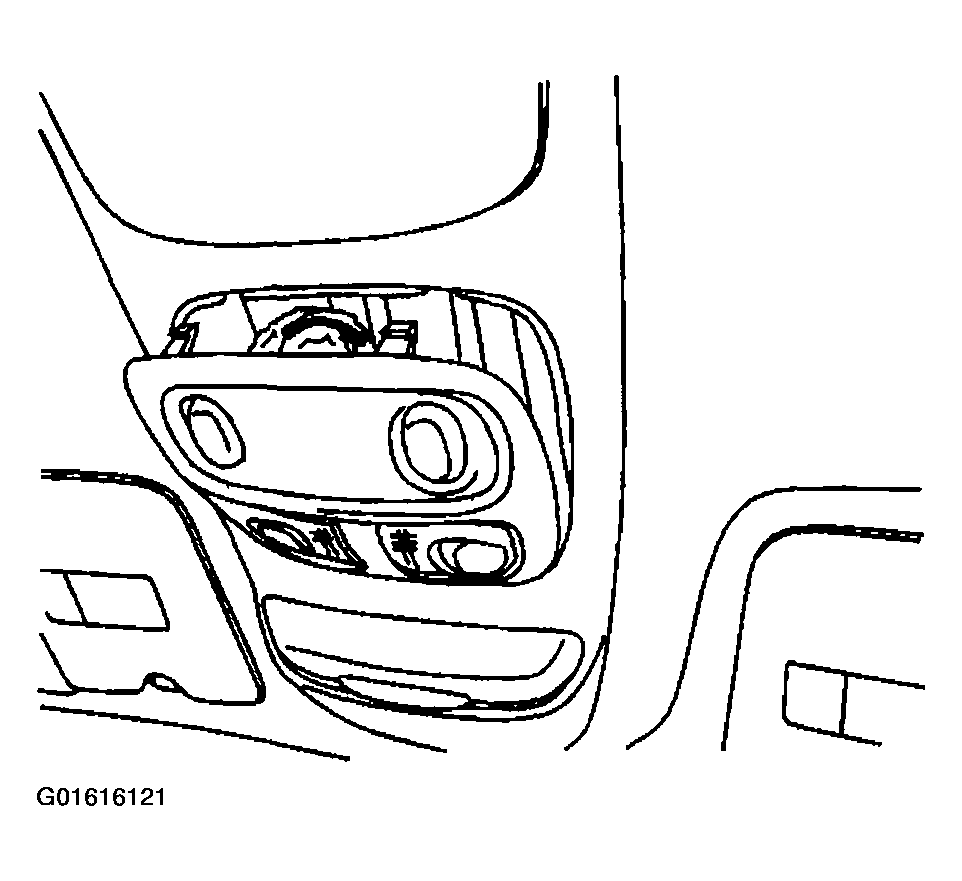

Fig 6: Overhead Console Lamp Bezel
