Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp bulb/socket to the fog lamp, turning clockwise, if required.
    Fig 1: Installing Fog Lamp Bulb/Socket
    G01616157Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the fog lamp bulb/socket.

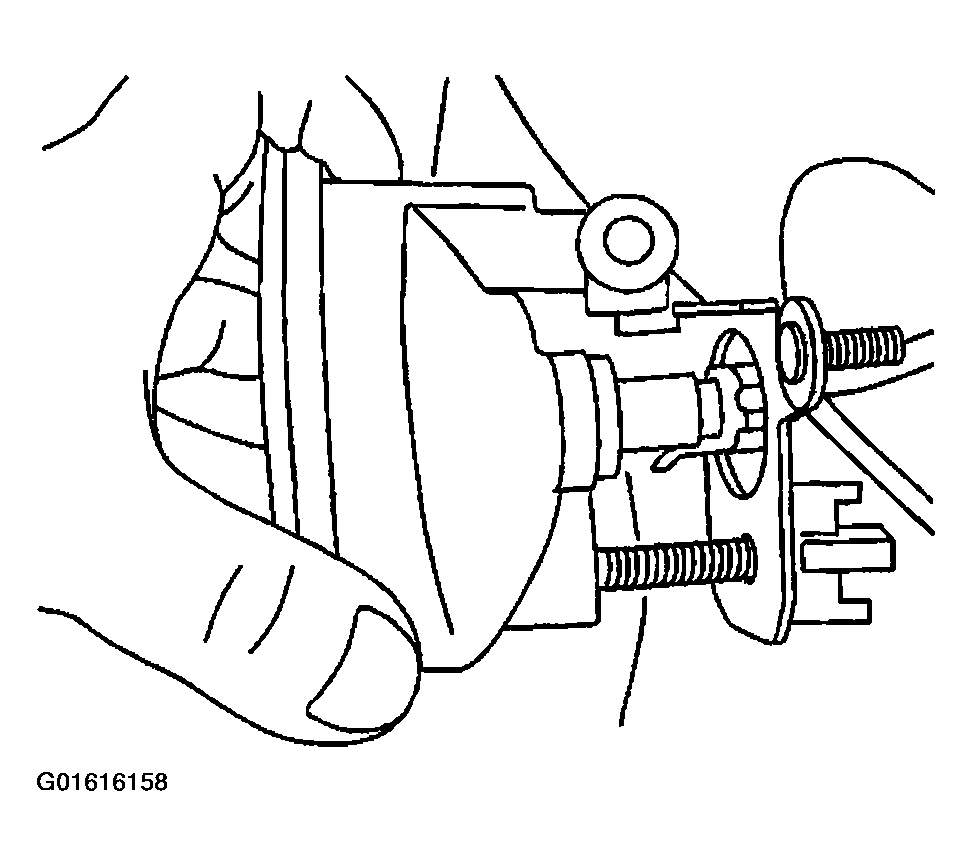

    Fig 2: Connecting Fog Lamp Bulb/Socket Electrical Connector
    G01616158Courtesy of GENERAL MOTORS CORP.
  3. Install the fog lamp to the front bumper fascia.

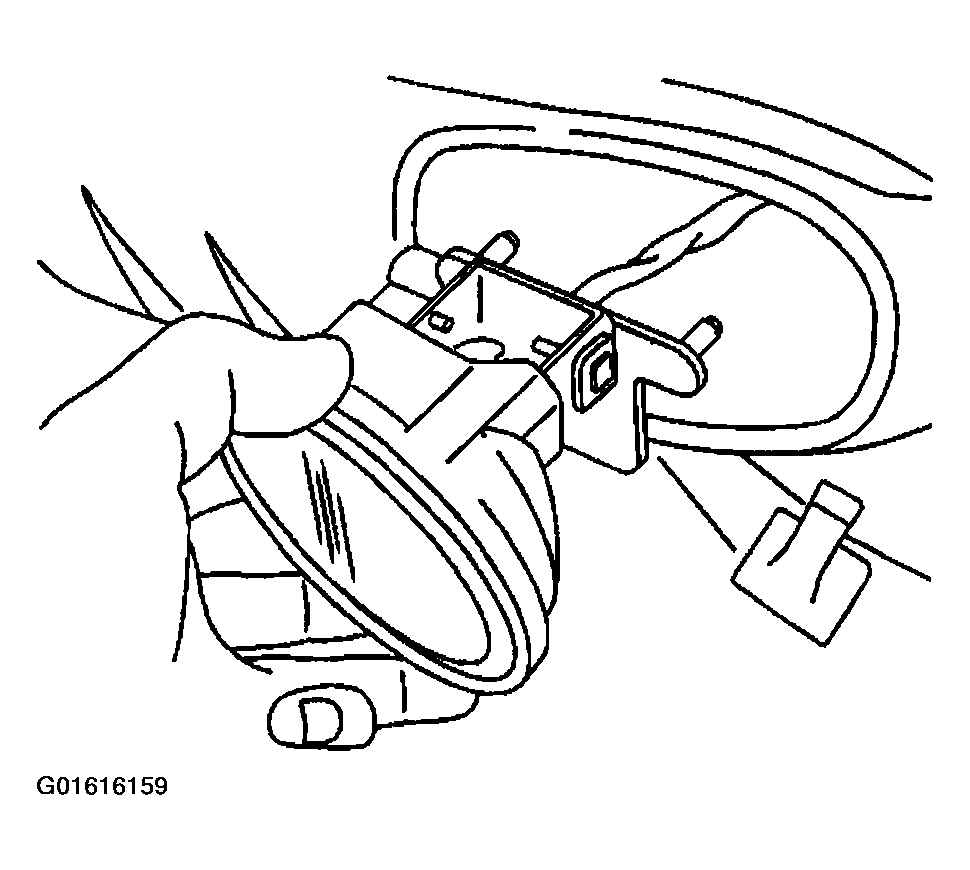

    Fig 3: Installing Fog Lamp
    G01616159Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the front fog lamp nuts to the fog lamp.

    Tighten

    Tighten the front fog lamp nuts to 10 N.m (89 lb in).

  5. Lower the vehicle.
  6. Check and adjust the front fog lamp aim as necessary. Refer to Fog Lamp Aiming Procedure .

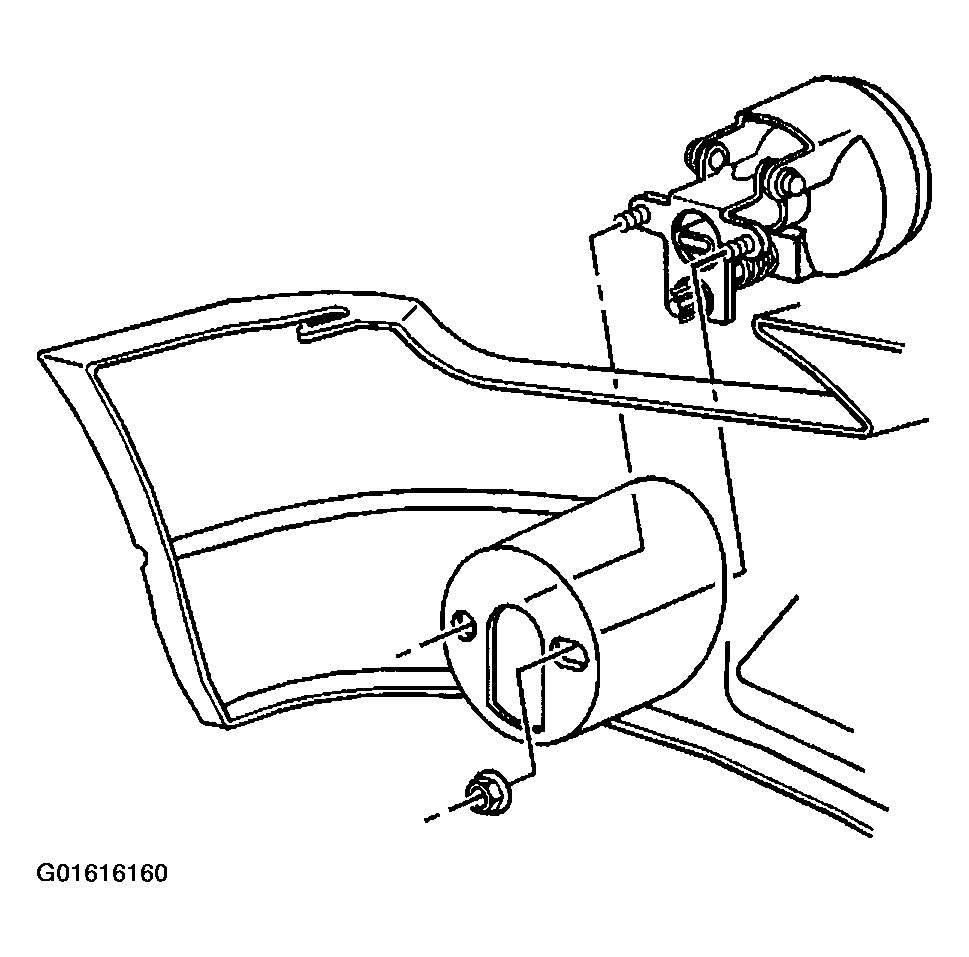

    Fig 4: Installing Front Fog Lamp Nuts
    G01616160Courtesy of GENERAL MOTORS CORP.
