Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the fog lamp switch to the IPC trim plate, then press into place to secure.
  2. Connect the electrical connector to the fog lamp switch.
  3. Install the IPC trim plate to the IP. Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER .

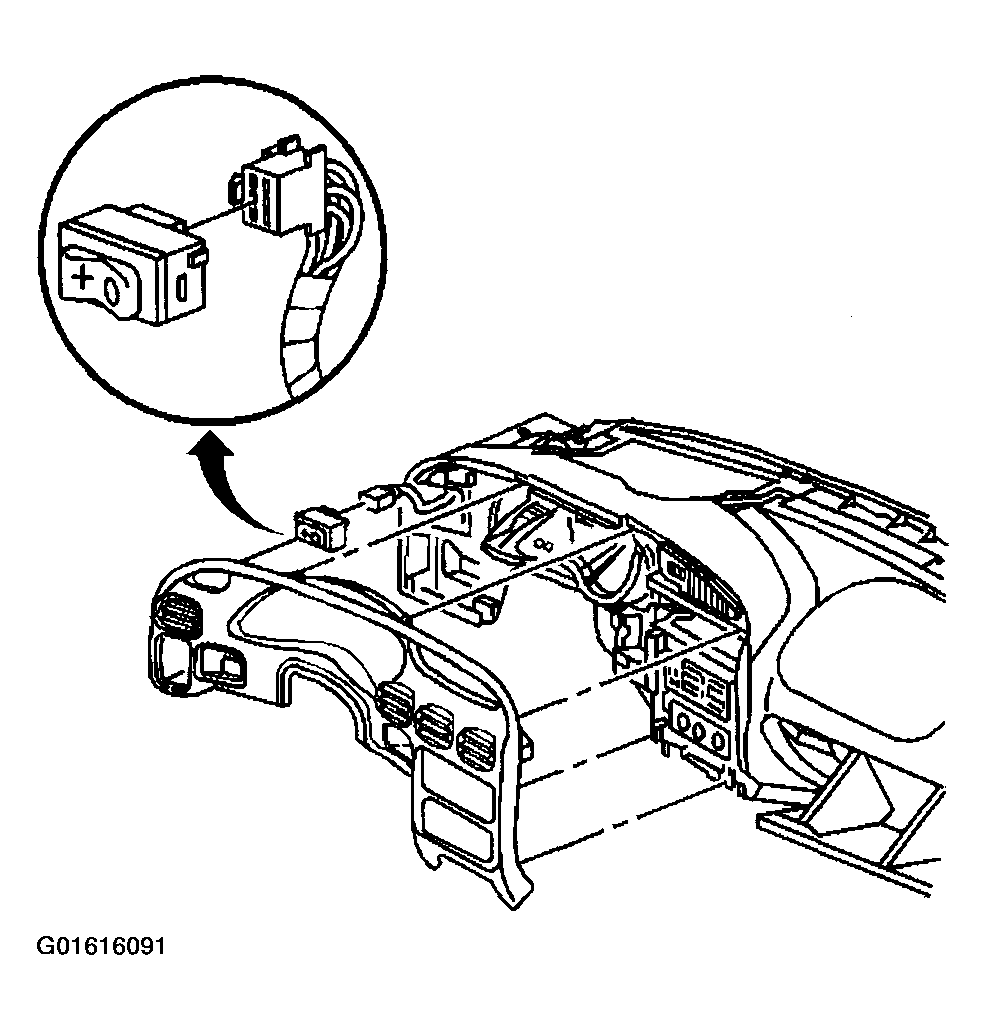

    Fig 1: Fog Lamp Switch
    G01616091Courtesy of GENERAL MOTORS CORP.
