Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) trim plate. Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER .
  2. Grasp the headlamp switch and pull firmly to release the retaining tabs from the instrument panel.
  3. Disconnect the electrical connector from the headlamp switch.
  4. Remove the headlamp switch.

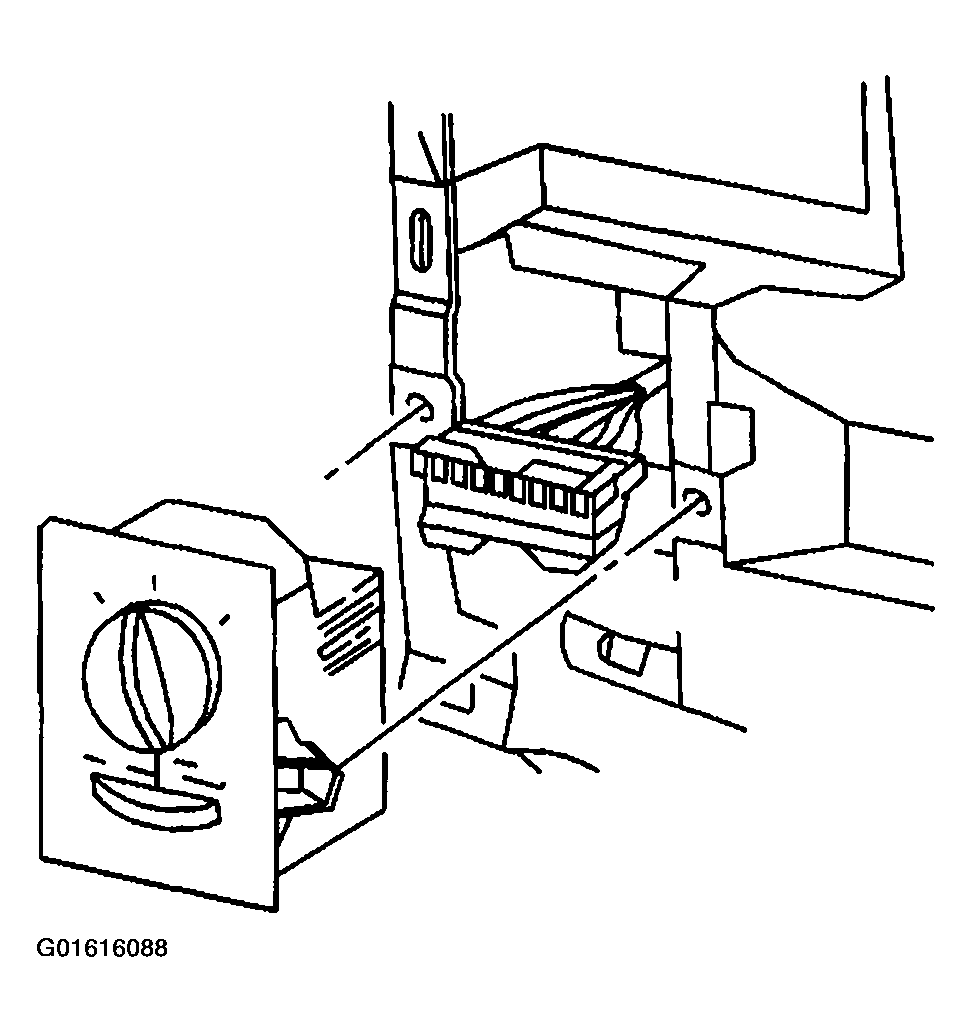

    Fig 1: Headlamp Switch
    G01616088Courtesy of GENERAL MOTORS CORP.
