Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the IP compartment lamp switch.
  2. Align the lamp switch to the switch opening in the IP compartment support panel, then press the switch into place to secure the retaining tabs.
  3. Install the IP compartment. Refer COMPARTMENT REPLACEMENT -- IP .

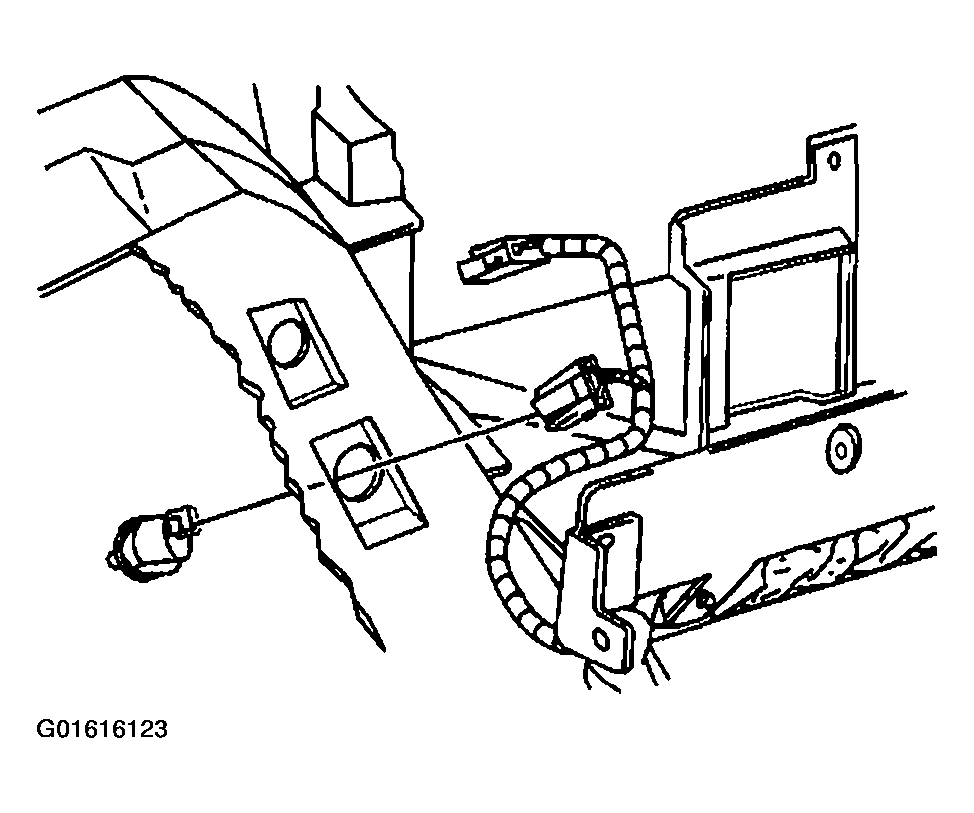

    Fig 1: Connecting I/P Compartment Switch Electrical Connector
    G01616123Courtesy of GENERAL MOTORS CORP.
