Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE .
Grasp the floor shift control trim bezel and lift to release the retaining tabs.
Rotate the floor shift control indicator lamp socket counterclockwise to release from the trim bezel.
Remove the bulb from the socket.

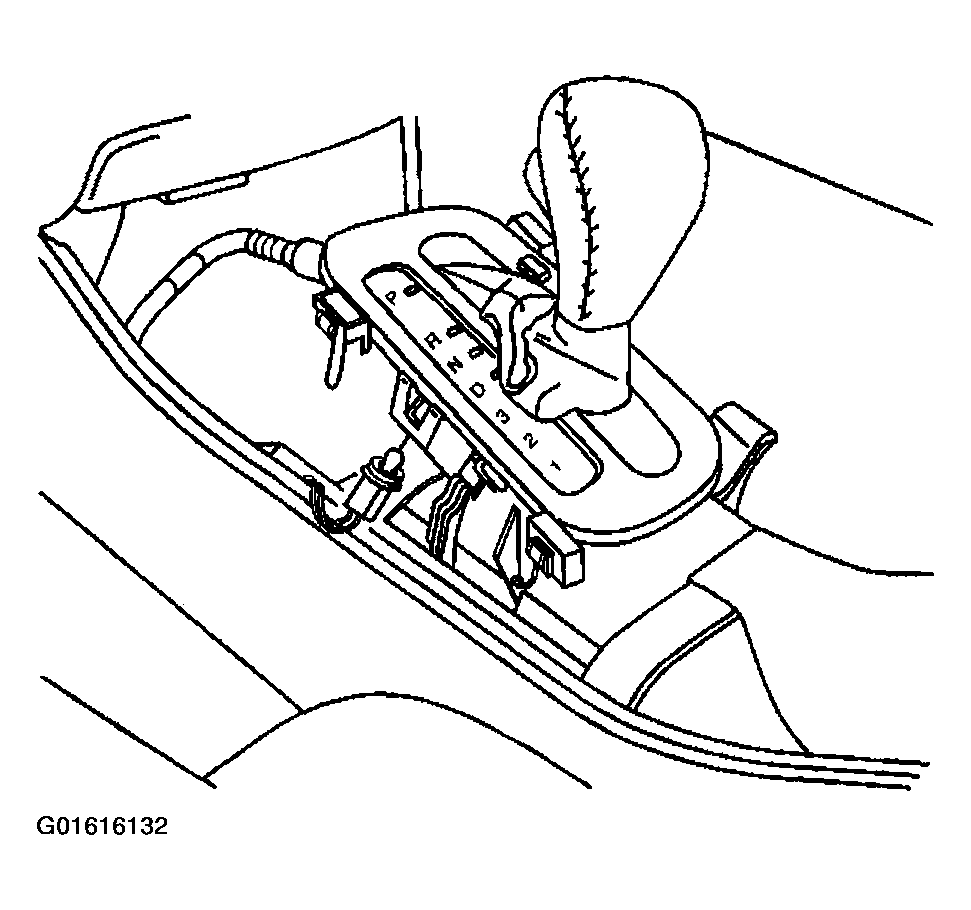

Fig 1: Trans Floor Shift Control Indicator Lamp
Courtesy of GENERAL MOTORS CORP.
