Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb into the socket.

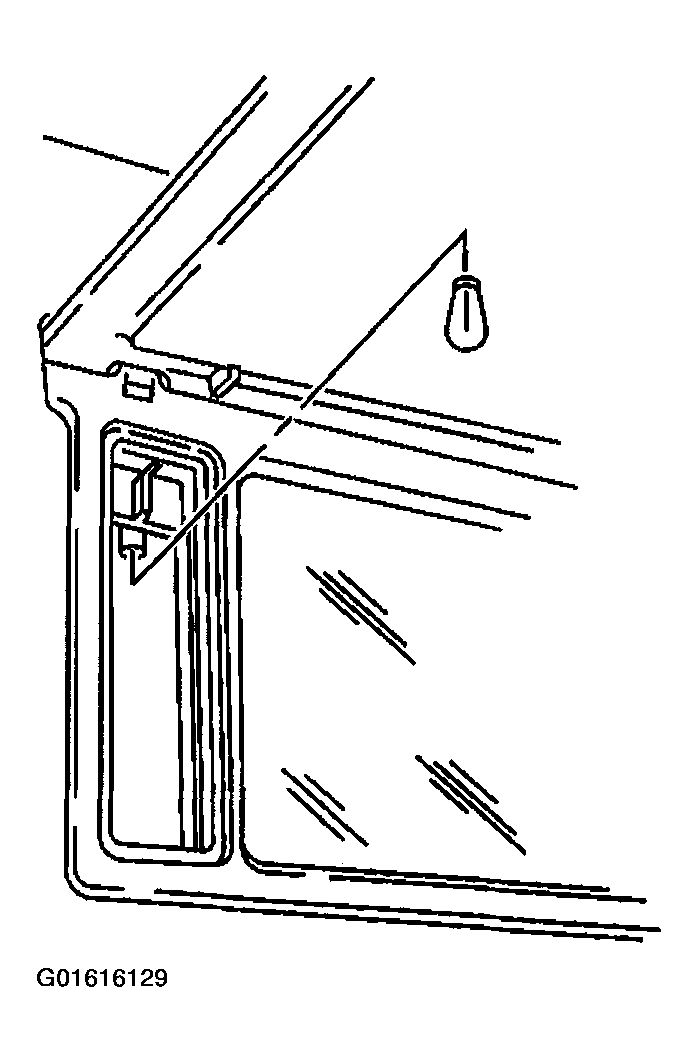

Fig 1: Vanity Mirror Lamp Bulb
Courtesy of GENERAL MOTORS CORP.
Position the vanity mirror lamp lens to the sunshade.
Insert the upper edge of the lens first, by placing the lens tabs into the housing slots.

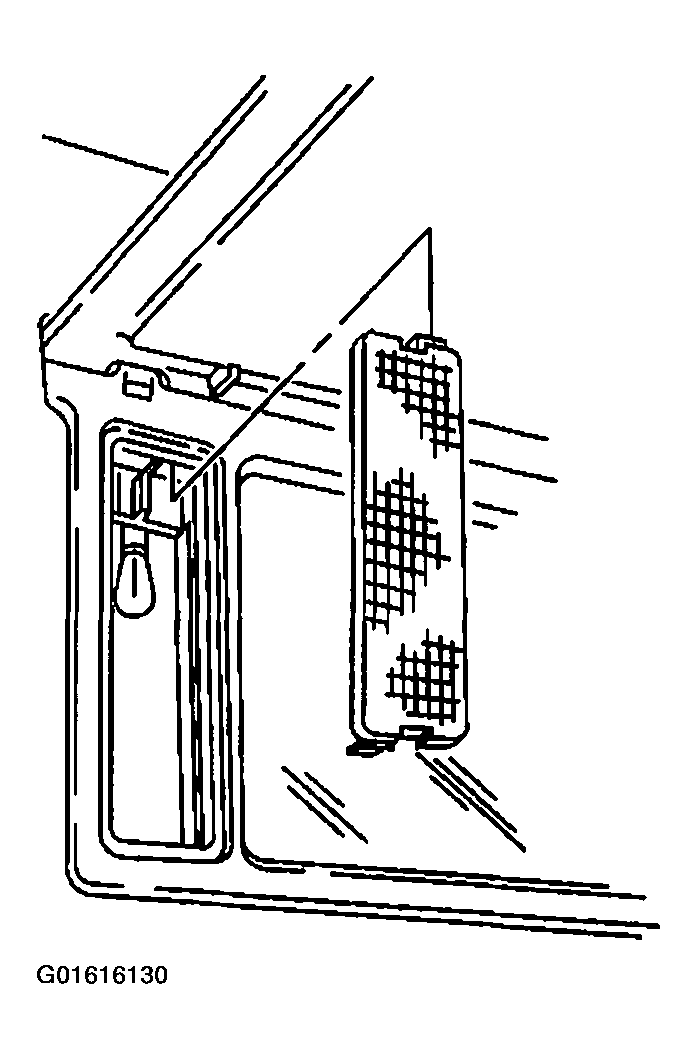

Fig 2: Positioning Vanity Mirror Lamp Lens
Courtesy of GENERAL MOTORS CORP.
Insert a small flat-bladed tool at the lower edge of the vanity mirror lamp lens. Press up to correctly install the lens.
Close the mirror and lamp cover door. Raise the sunshade.

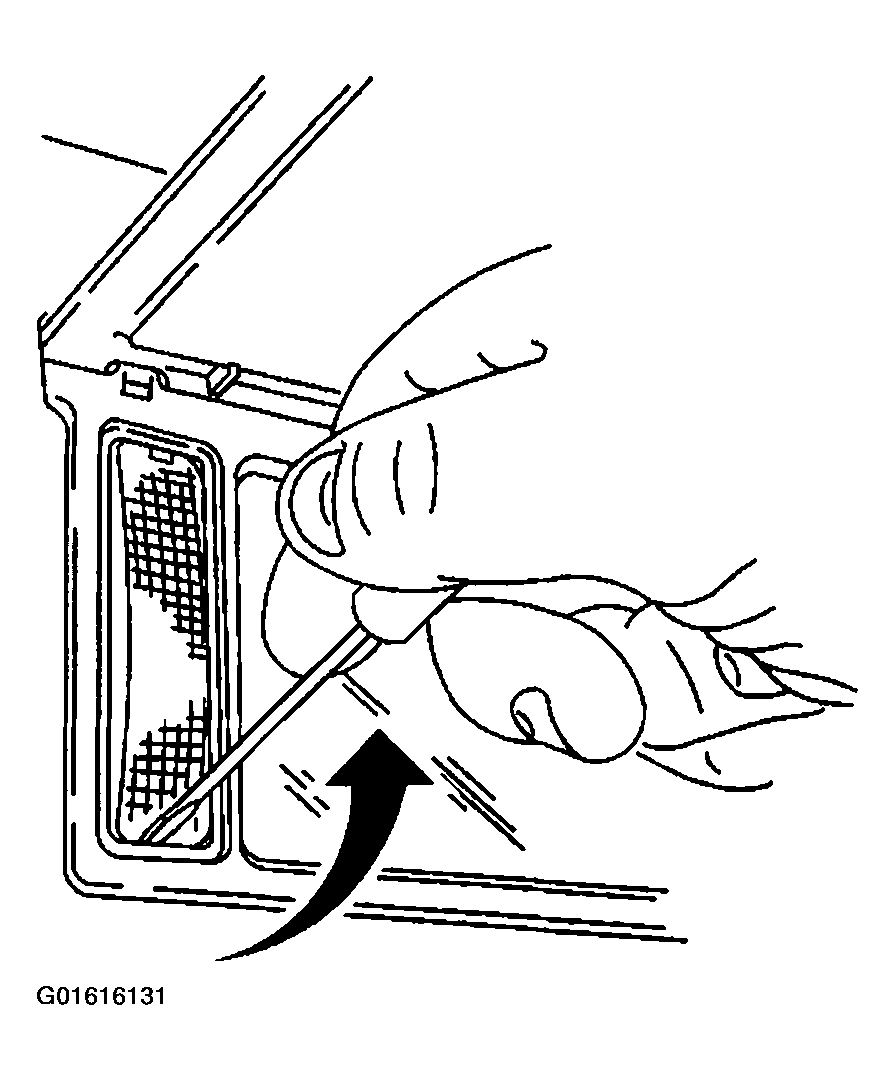

Fig 3: Installing Vanity Mirror Lamp Lens
Courtesy of GENERAL MOTORS CORP.
