Body Rear End Component Views
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

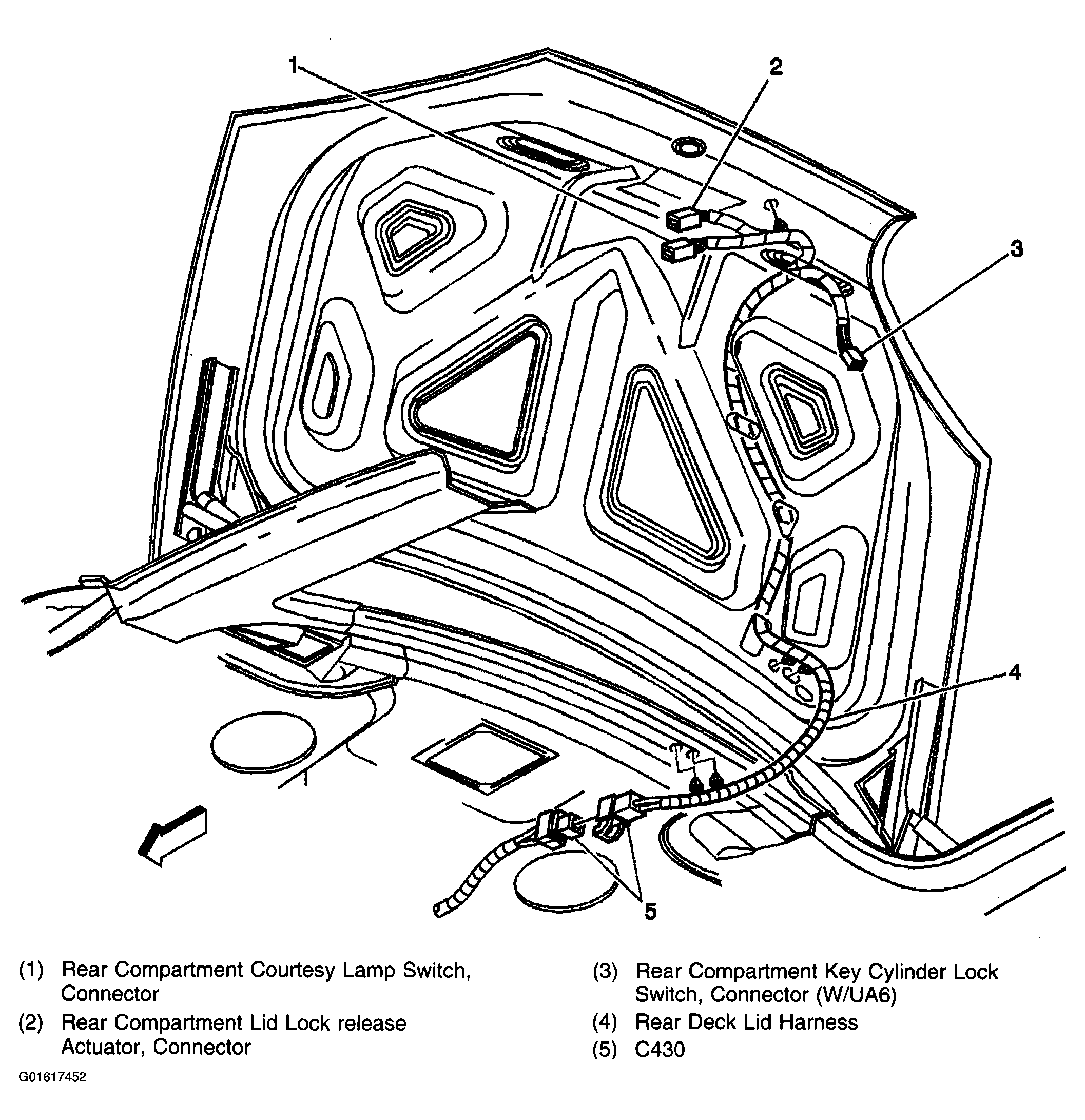

Fig 1: Inside Rear Compartment Lid Component View
Courtesy of GENERAL MOTORS CORP.
Fig 2: LH Side Of I/P Component View
Courtesy of GENERAL MOTORS CORP.
Fig 3: Right Side Of Instrument Panel Component View
