Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

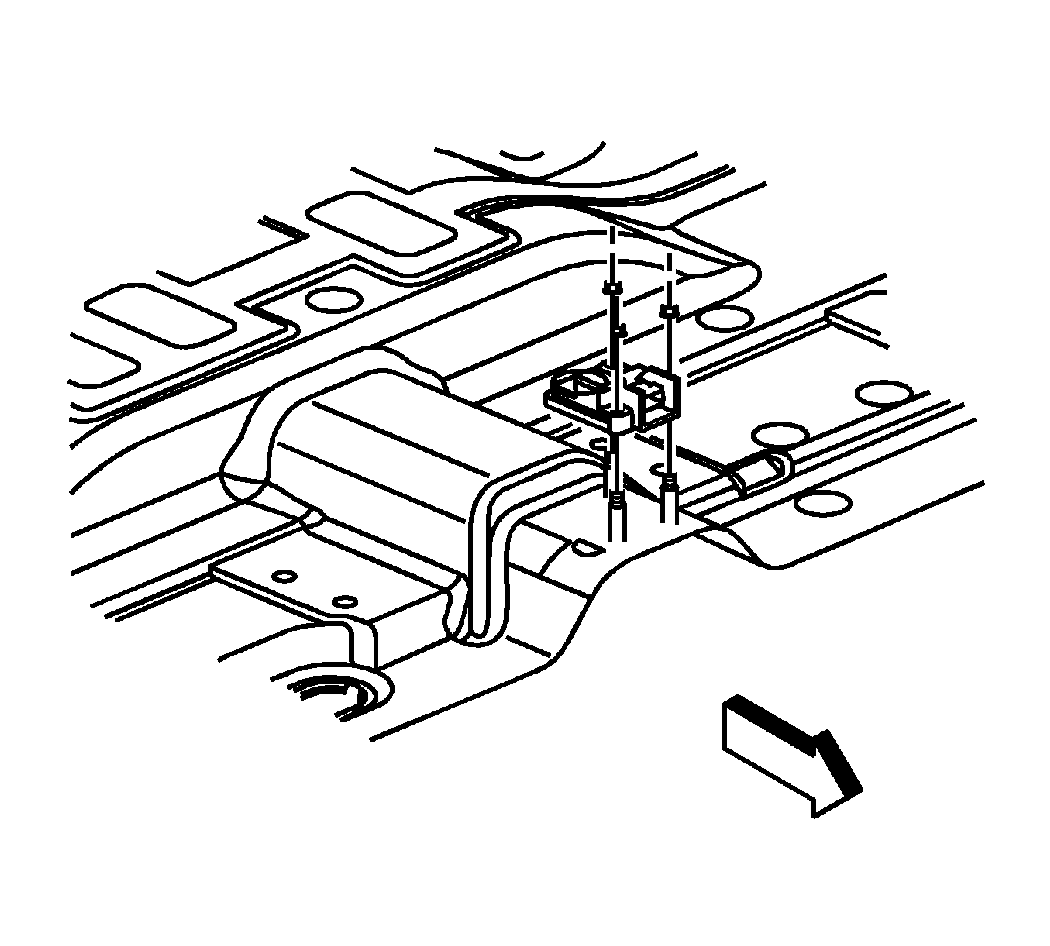

Fig 1: Vehicle Rollover Sensor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the nuts securing the rollover sensor to the floor panel.
Tighten: Tighten the screws to 10 N.m (88 lb in).
Connect the electrical connectors.
Install the rear carpet. Refer to Floor Panel Carpet Replacement .
Enable the SIR system. Refer to SIR Disabling and Enabling .
