Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

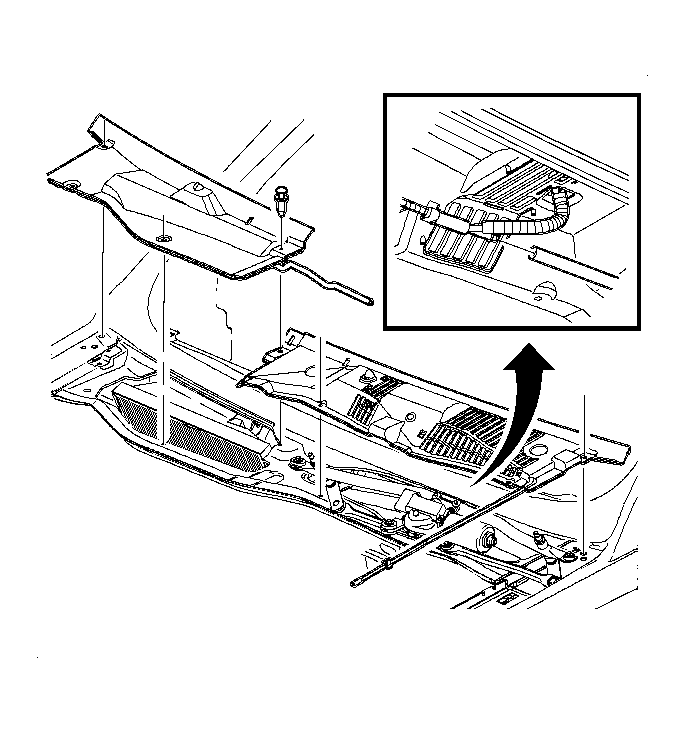

    Fig 1: View Of Air Inlet Grille Panel
    GM932420Courtesy of GENERAL MOTORS CORP.
  1. Connect the front nozzle hose to the front washer solvent container hose that runs along the upper motor compartment rail.
  2. Position the washer hoses into the vehicle.
  3. Install the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
