Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Trailing Blade & Knuckle Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the trailing arm to the knuckle.
Tighten: Tighten the bolts to 135 N.m (100 lb ft).
Position the trailing arm bracket to the trailing arm.
Loosely install the trailing arm bushing to bracket nut and bolt.

Fig 2: View Of Trailing Arm Bracket To Body Bolts

Courtesy of GENERAL MOTORS CORP.

Push upward on the trailing arm and loosely install the front bolt.
Use a drift to align the remaining bolts.
Tighten: Tighten the trailing arm bracket to body bolts to 110 N.m (81 lb ft).
Tighten the trailing arm bushing to bracket nut and bolt.
Tighten: Tighten the bolt to 160 N.m (118 lb ft).

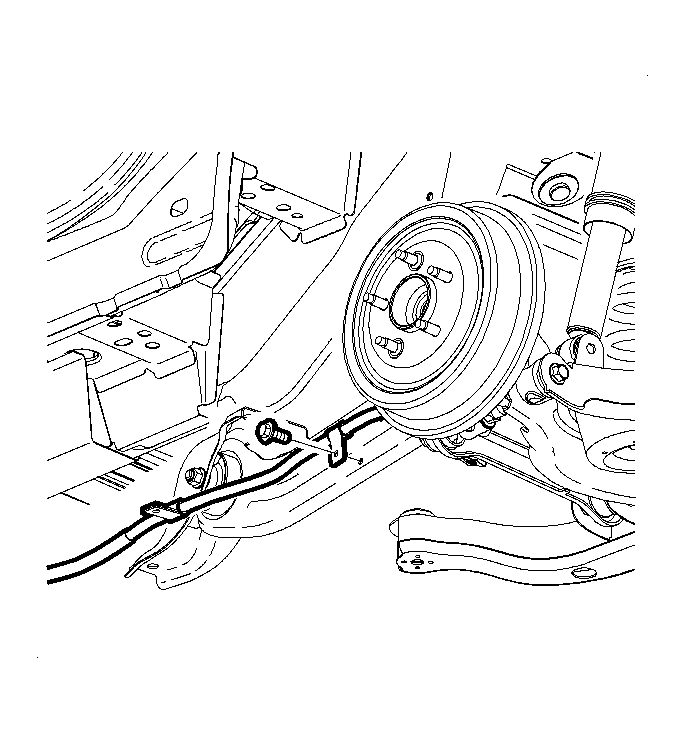

Fig 3: Park Brake Cable Clip & Trailing Arm

Courtesy of GENERAL MOTORS CORP.

Install the park brake cable clip.
Tighten: Tighten the bolt to 25 N.m (18 lb ft).
Lower the vehicle.
