Door Lamp Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

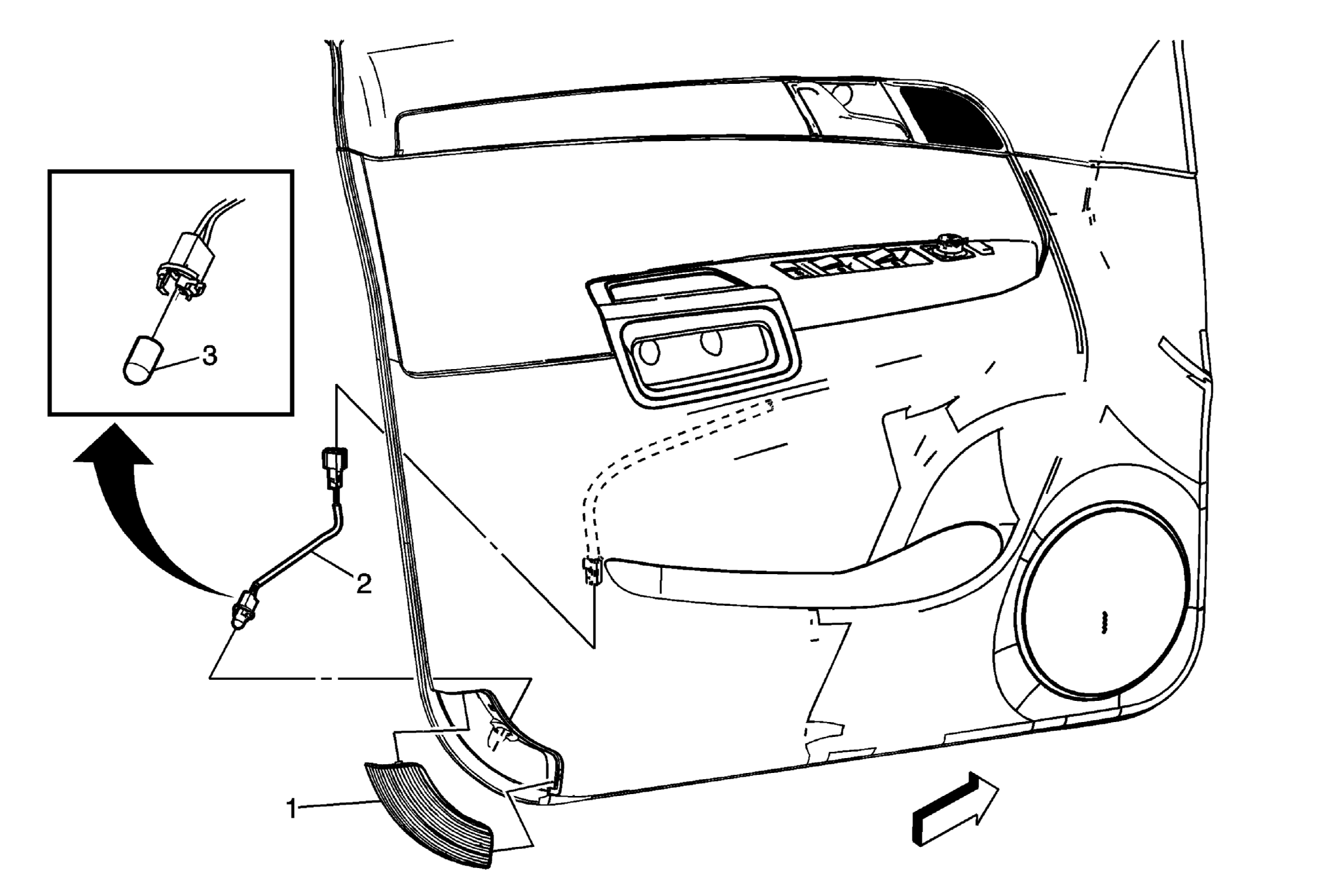

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement . |
|
| 1 | Front Side Door Courtesy Lamp Lens |
| 2 | Front Side Door Courtesy Lamp Retainer Assembly Procedure: Disconnect the electrical connector. |
| 3 | Front Side Door Courtesy Lamp Bulb |
