Front Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

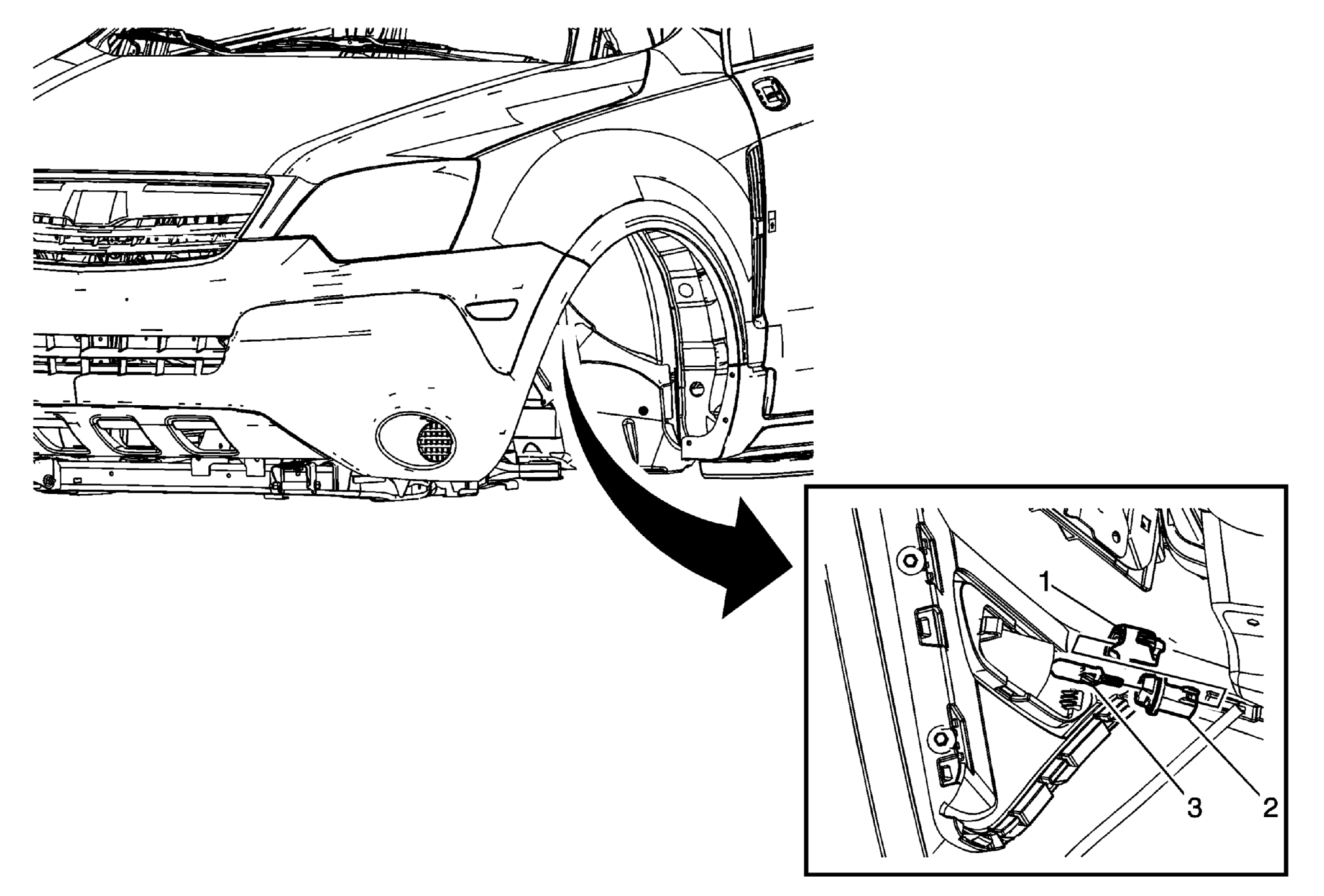

Fig 1: Front Side Marker Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning . Preliminary Procedure: Remove the front wheelhouse liner in order to access the front side marker lamp bulb. Refer to Front Wheelhouse Liner Replacement .
1	Forward Lamp Harness Electrical Connector
2	Front Side Marker Lamp Bulb Socket
3	Front Side Marker Lamp Bulb Pull the bulb straight from the lamp socket.
