Front Side Turn Signal Lamp Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

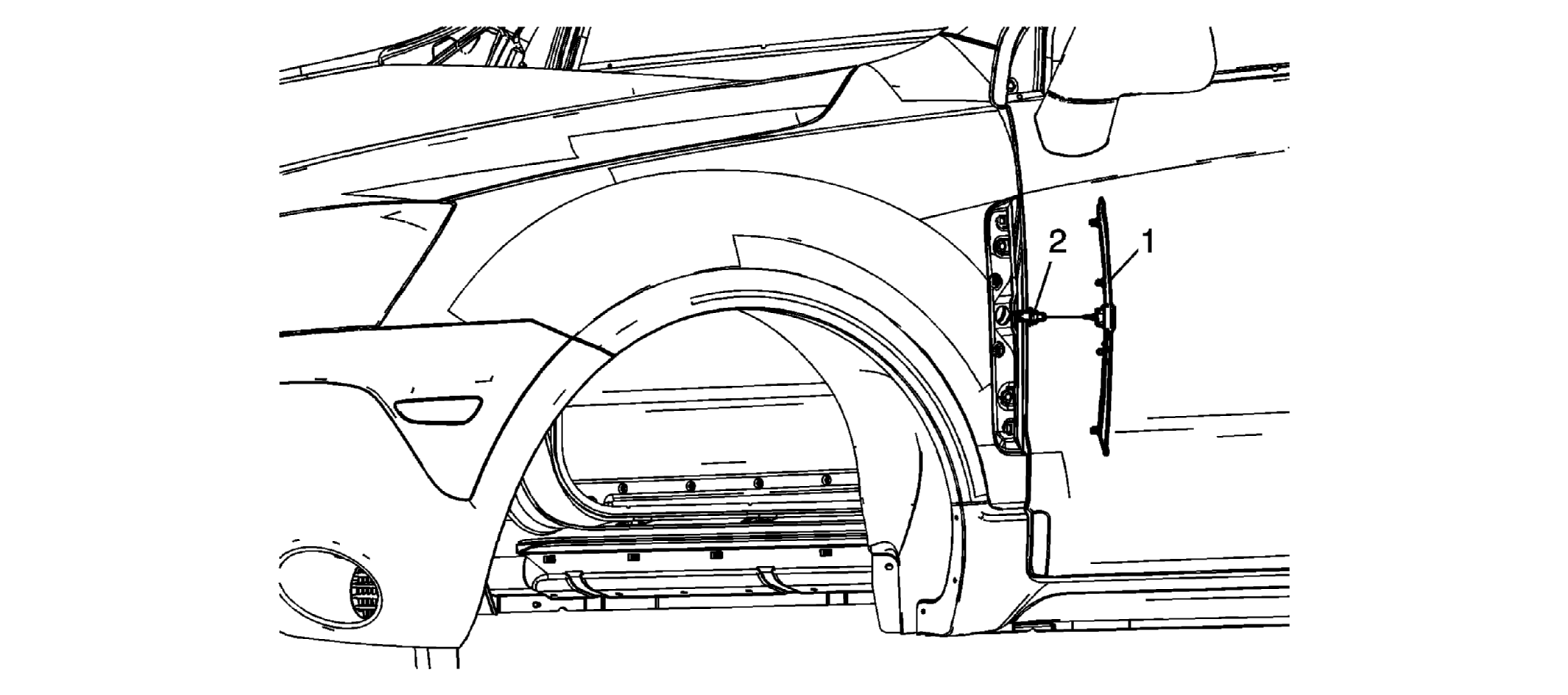

Fig 1: Front Side Turn Signal Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front fender center molding. Refer to Front Fender Center Molding Replacement .
1	Front Fender Center Molding Assembly
2	Front Side Turn Signal Lamp Assembly Procedure: Disconnect the electrical lamp socket prior to removing bulb socket from the front fender center molding assembly.
