Headlamp Bracket Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

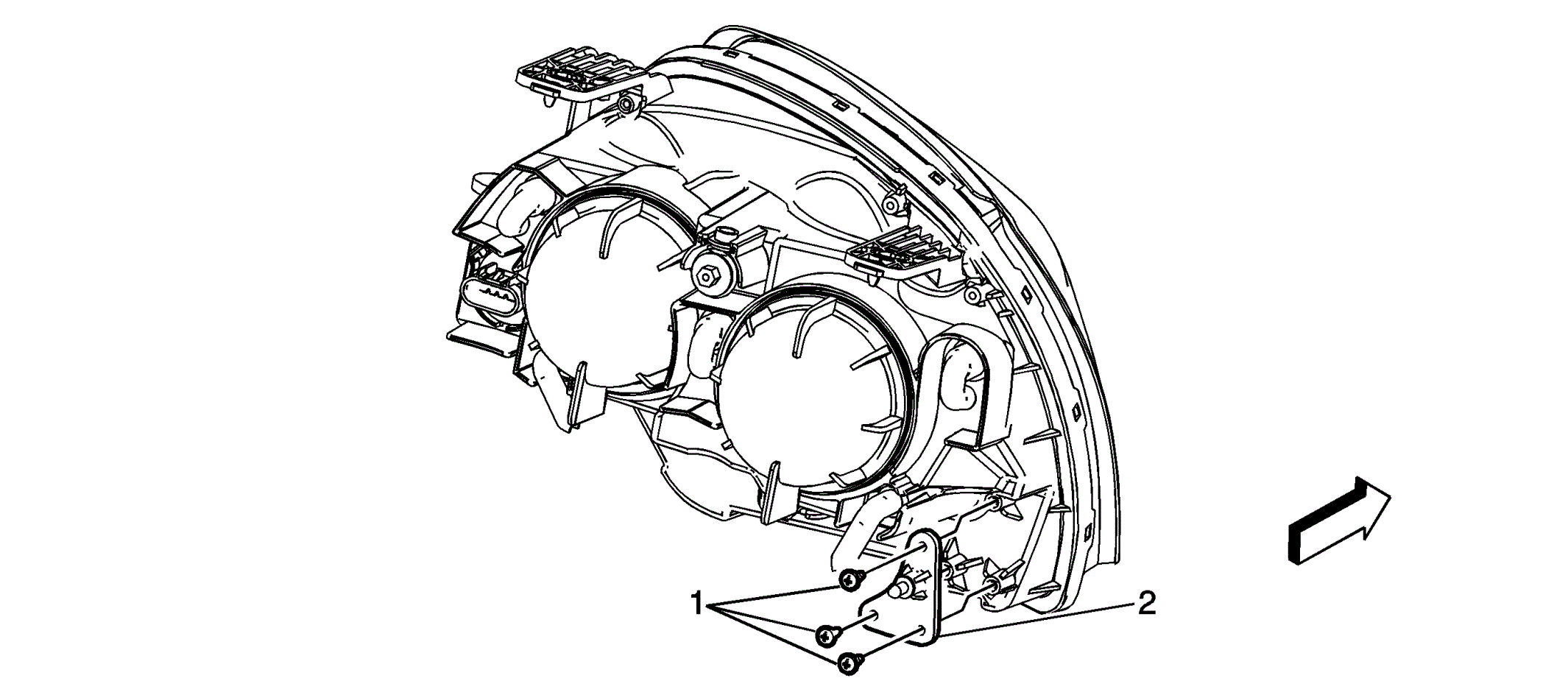

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the headlamp assembly. Refer to Headlamp Replacement . |
|
| 1 | Headlamp Housing Bracket Assembly Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Headlamp Housing Bracket Assembly |
