Tail Lamp Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

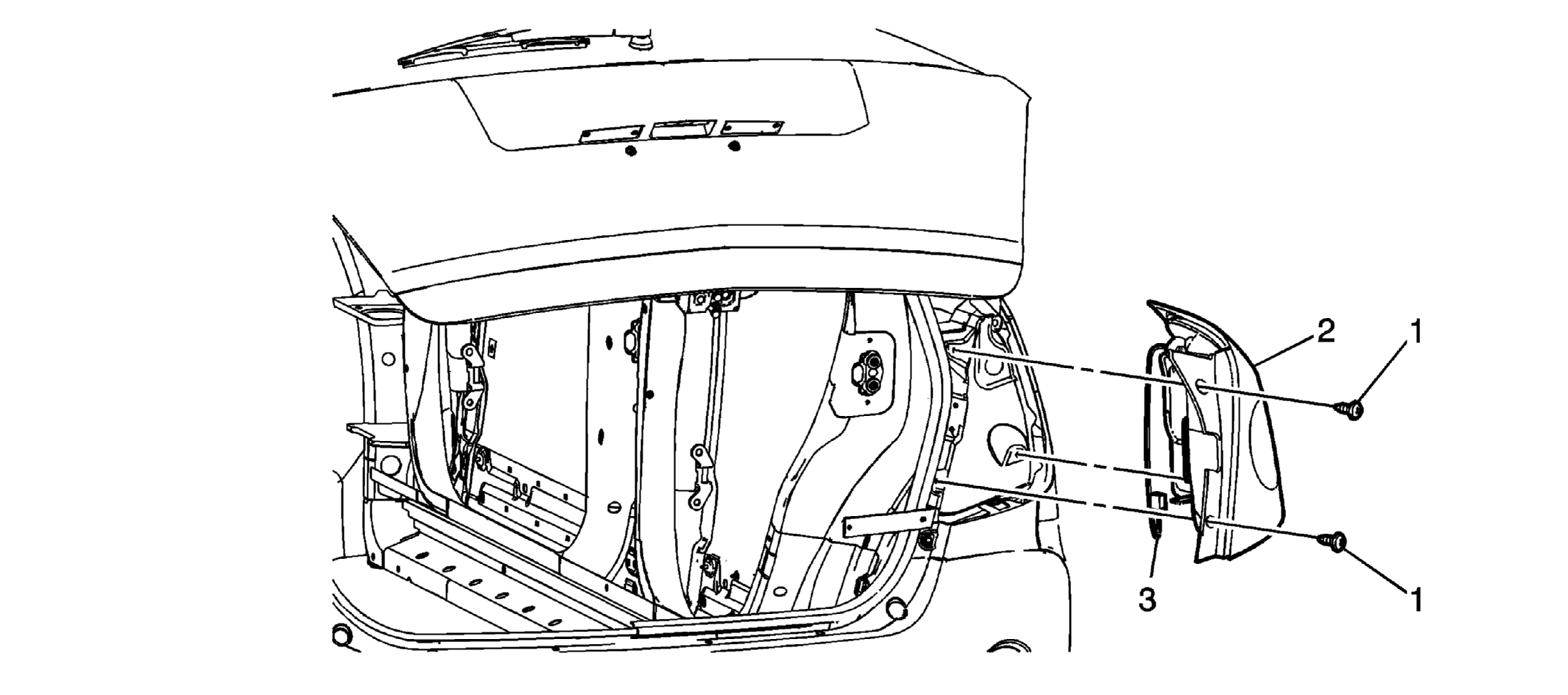

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Open the rear liftgate in order to access and remove the tail lamp screws. |
|
| 1 | Tail Lamp Screw (Qty 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Tail Lamp Assembly Procedure: Pull on the outer edge of the tail lamp assembly in order to release the tail lamp locator pins from the rear bodyside panel. |
| 3 | Tail Lamp Electrical Connector |
