Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Take care not to catch the transmission shift cable or left wheel house plastic trim when installing the stabilizer bar.
  1. Install the stabilizer bar to the vehicle through the left wheel opening.

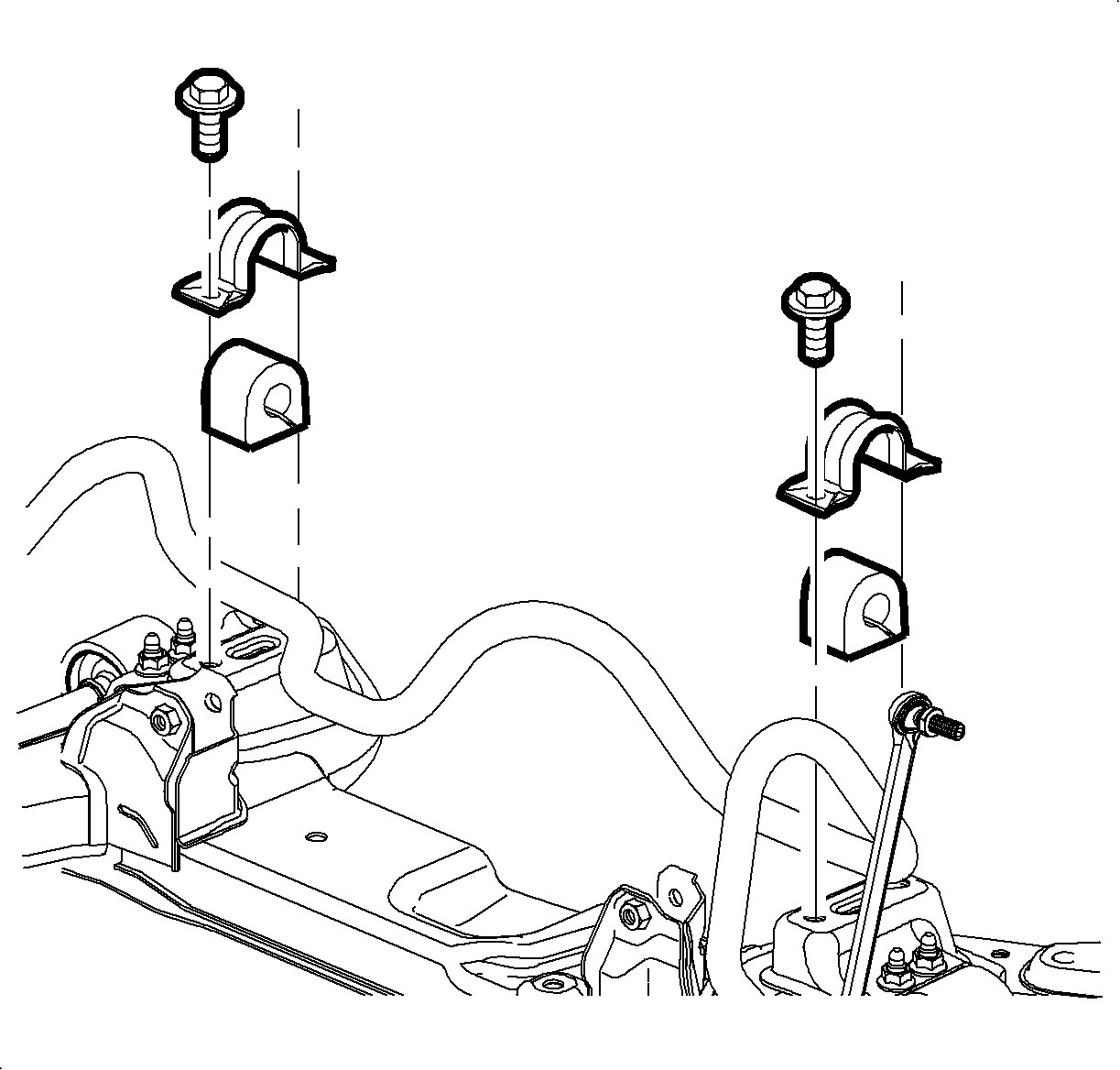

    2. Fig 1: View Of Stabilizer Bar Clamps, Bushings & Bolts
    GM929945Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilizer bar clamps and bushings to the stabilizer bar.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the stabilizer bar clamp bolts and tighten to 50 N.m (37 lb ft).
  4. Inspect the stabilizer link boots for damage and replace the stabilizer link if needed.
    5. Fig 2: View Of Stabilizer Shaft & Link
    GM927949Courtesy of GENERAL MOTORS CORP.
    NOTE: Hold the ball stud when tightening the nut.
  5. Connect the stabilizer links to the stabilizer bar. Do not allow the boot to twist.

    Tighten the bar to link nut to 65 N.m (48 lb ft).

    6. Fig 3: View Of Tie Rod, Knuckle & Tapered Ball Stud
    GM891579Courtesy of GENERAL MOTORS CORP.
  6. Connect the left outer tie rod to the steering knuckle.
  7. Use the J 44015  to seat the ball stud taper to 40 N.m (30 lb ft).
  8. Remove the J 44015  .
  9. Install a new tie rod retention nut and tighten to 50 N.m (37 lb ft).
  10. Install the front tire and wheels. Refer to Tire and Wheel Removal and Installation .
  11. Lower the vehicle.
