Power Seat Switch Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

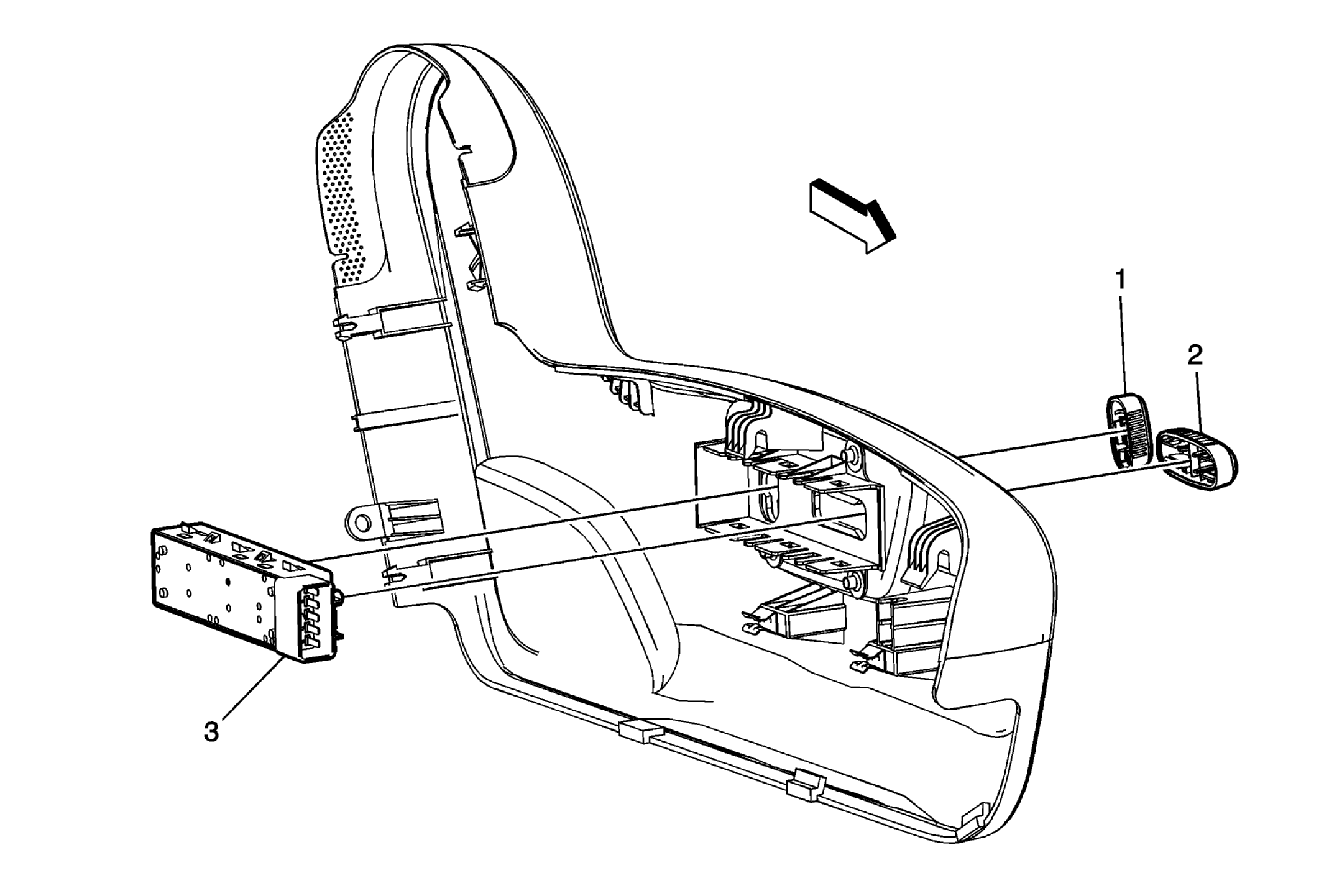

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the front seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement (without Power Seat) or Driver or Passenger Seat Outer Adjuster Finish Cover Replacement (with Power Seat) . |
|
| 1 | Front Seat Back Recliner Knob Tip: Pull the know outward to remove. |
| 2 | Front Seat Adjuster Knob Tip: Pull the know outward to remove. |
| 3 | Front Seat Adjuster and Recliner Switch Tip: Use a small flat bladed tool if necessary to help remove the switch from the adjuster finish cover. |
