Rear Window Wiper/Washer Module

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

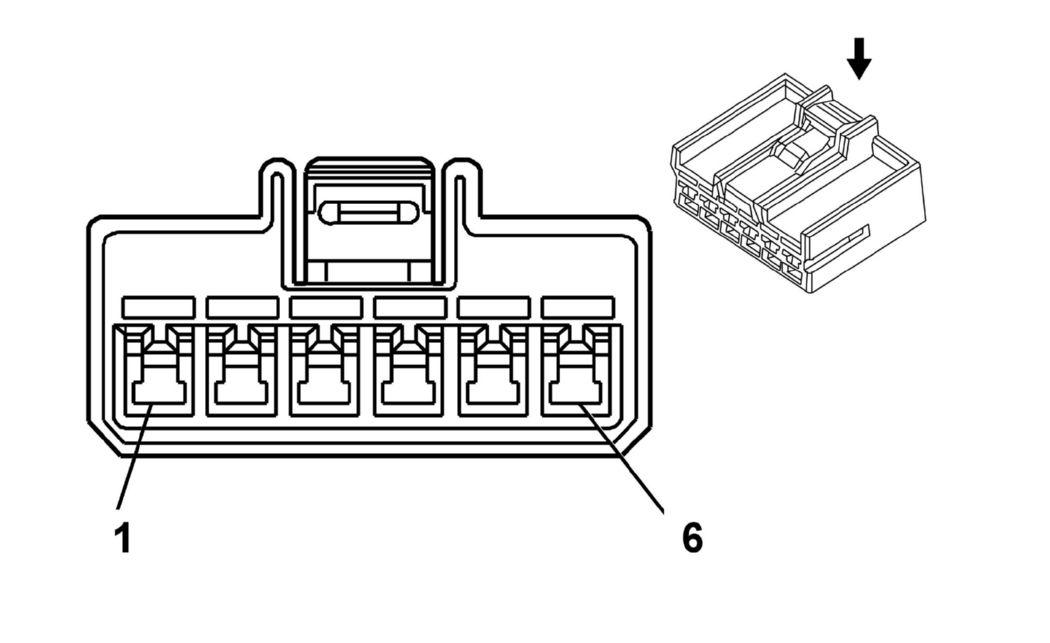

Fig 1: Rear Window Wiper/Washer Module Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 GY	391	Rear Window Wiper Switch Signal
2	-	-	Not Used
3	0.35 PK/BK	1303	Liftgate Ajar Switch Signal
4	1 BK	650	Ground
5	1 RD/WH	2240	Battery Positive Voltage
6	0.8 D-GN	392	Rear Window Washer Pump Control

Connector Part Information

OEM: 936230-1
Service: See Catalog
Description: 6-Way F 090 II Series (NA)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
