Removal & Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument panel center trim panel. See TRIM PANELS under REMOVAL & INSTALLATION in INSTRUMENT PANELS - AURORA article.
  2. Depress spring clip retainers at sides of radio and pull radio straight out to remove. See Fig 1.
  3. On vehicles equipped with navigation radio, disconnect GPS antenna connector.
  4. To install, reverse removal procedure.

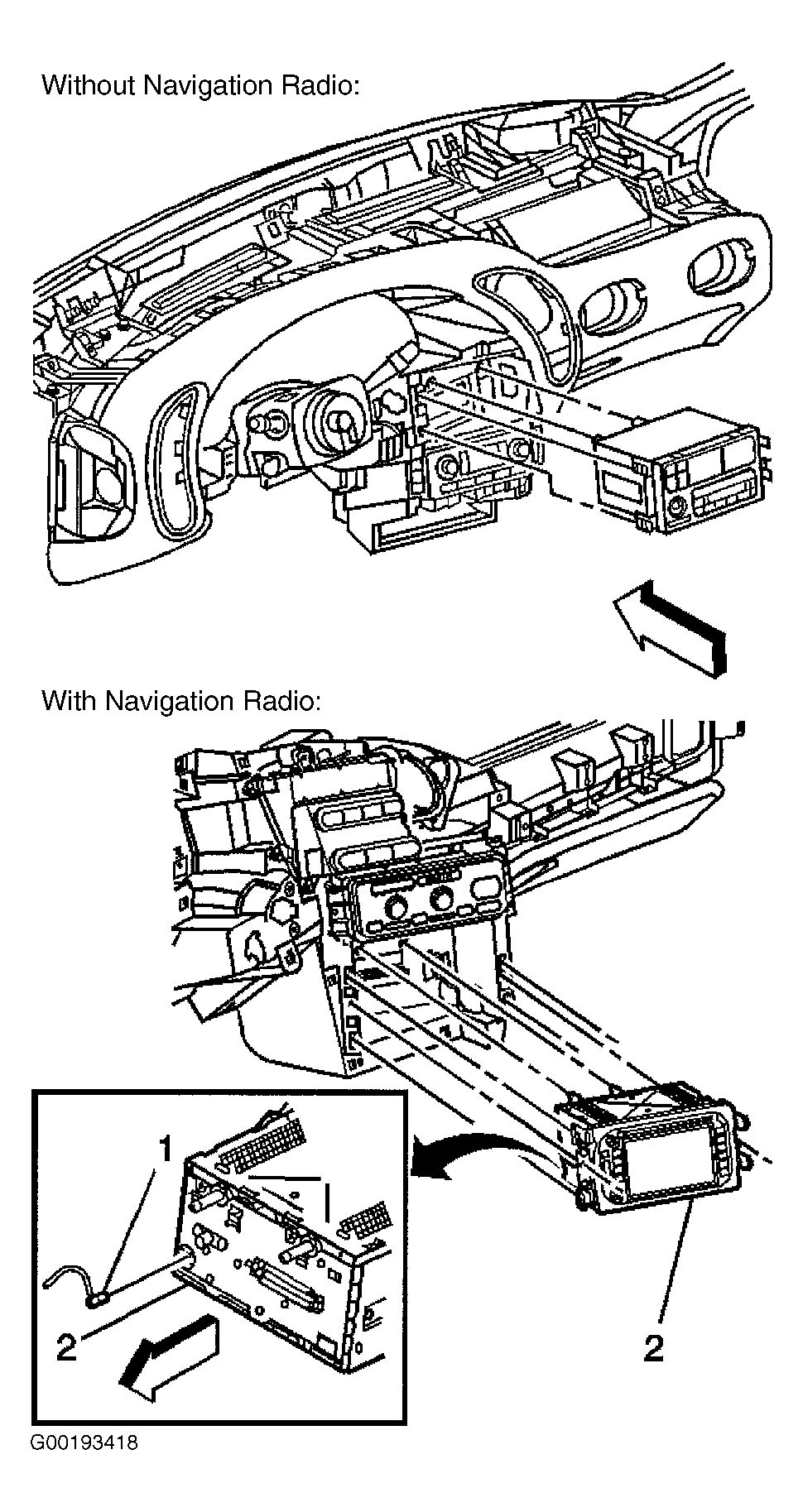

Fig 1: Removing Radio
G00193418Courtesy of GENERAL MOTORS CORP.
