Trim Height Specifications

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

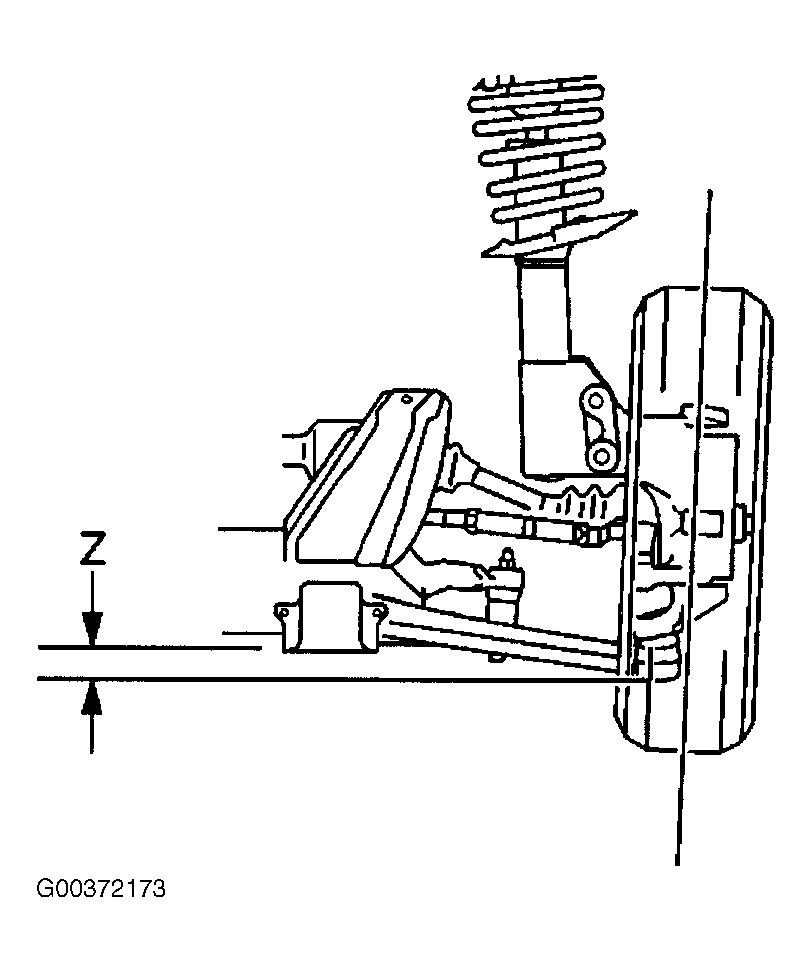

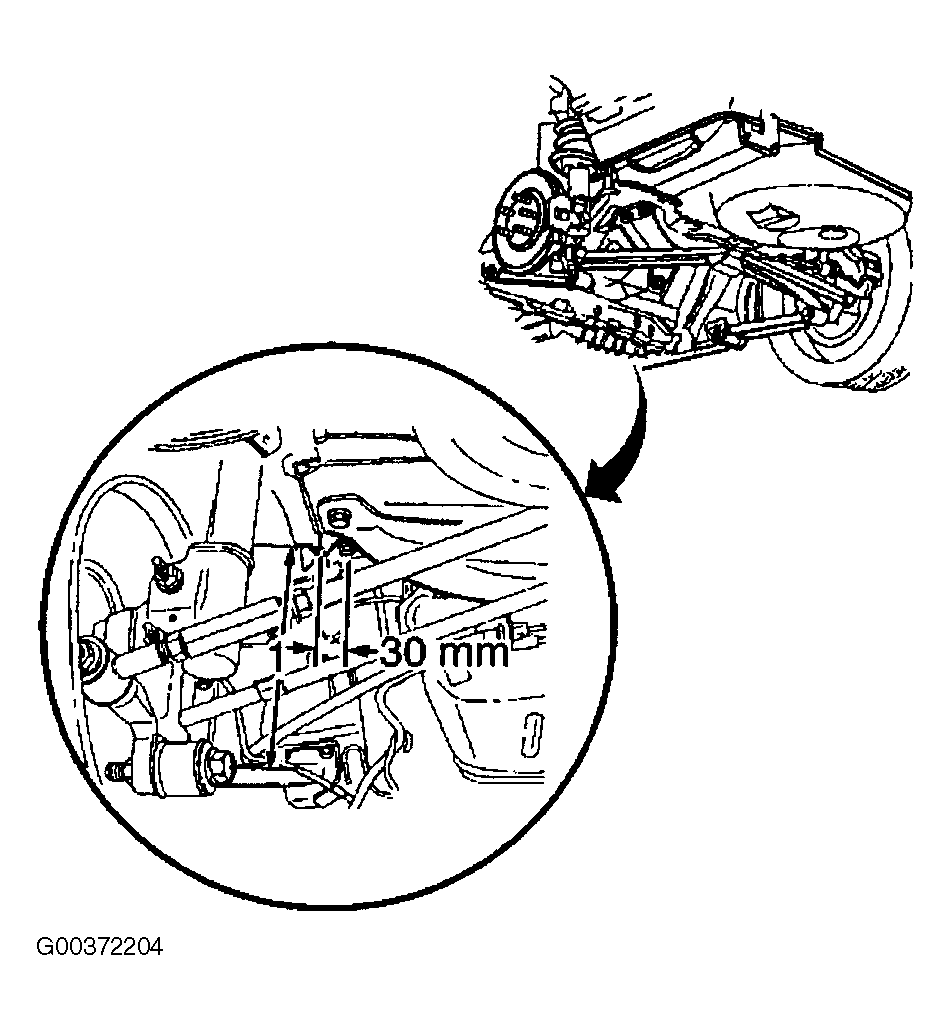

NOTE: To measure D or Z heights, see Figure or Figure .

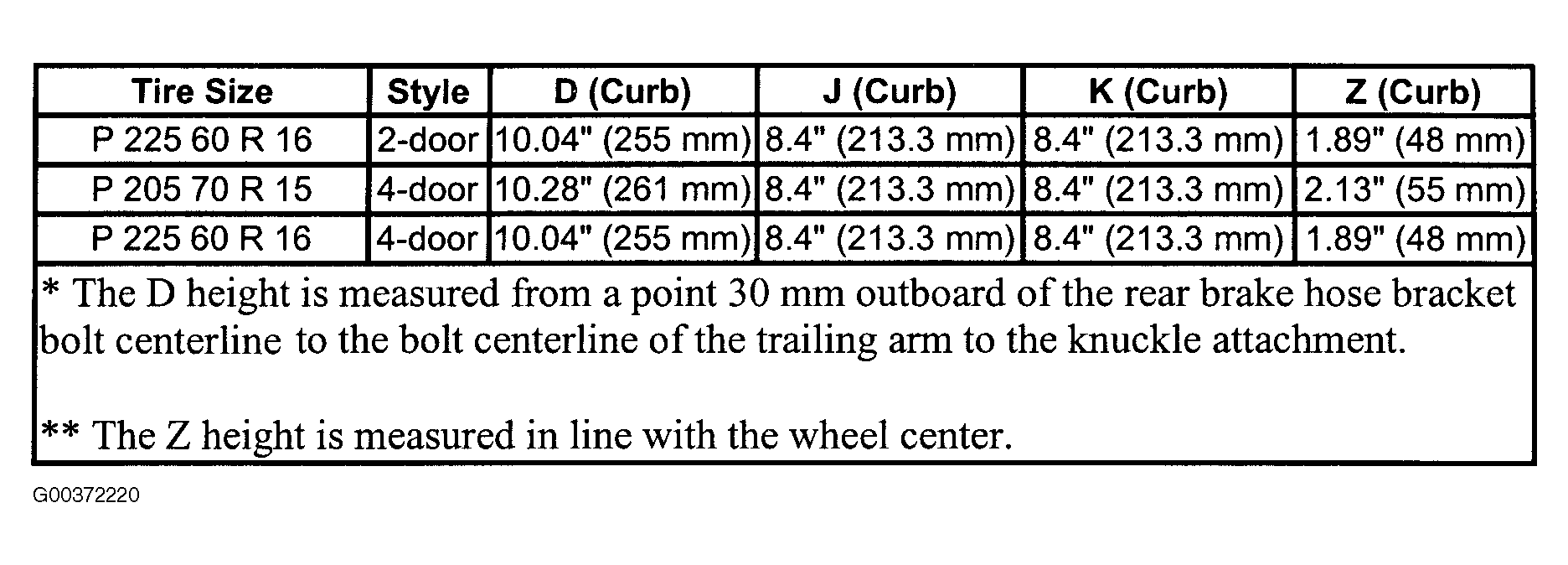

Fig 1: Trim Height Specifications

Courtesy of GENERAL MOTORS CORP.

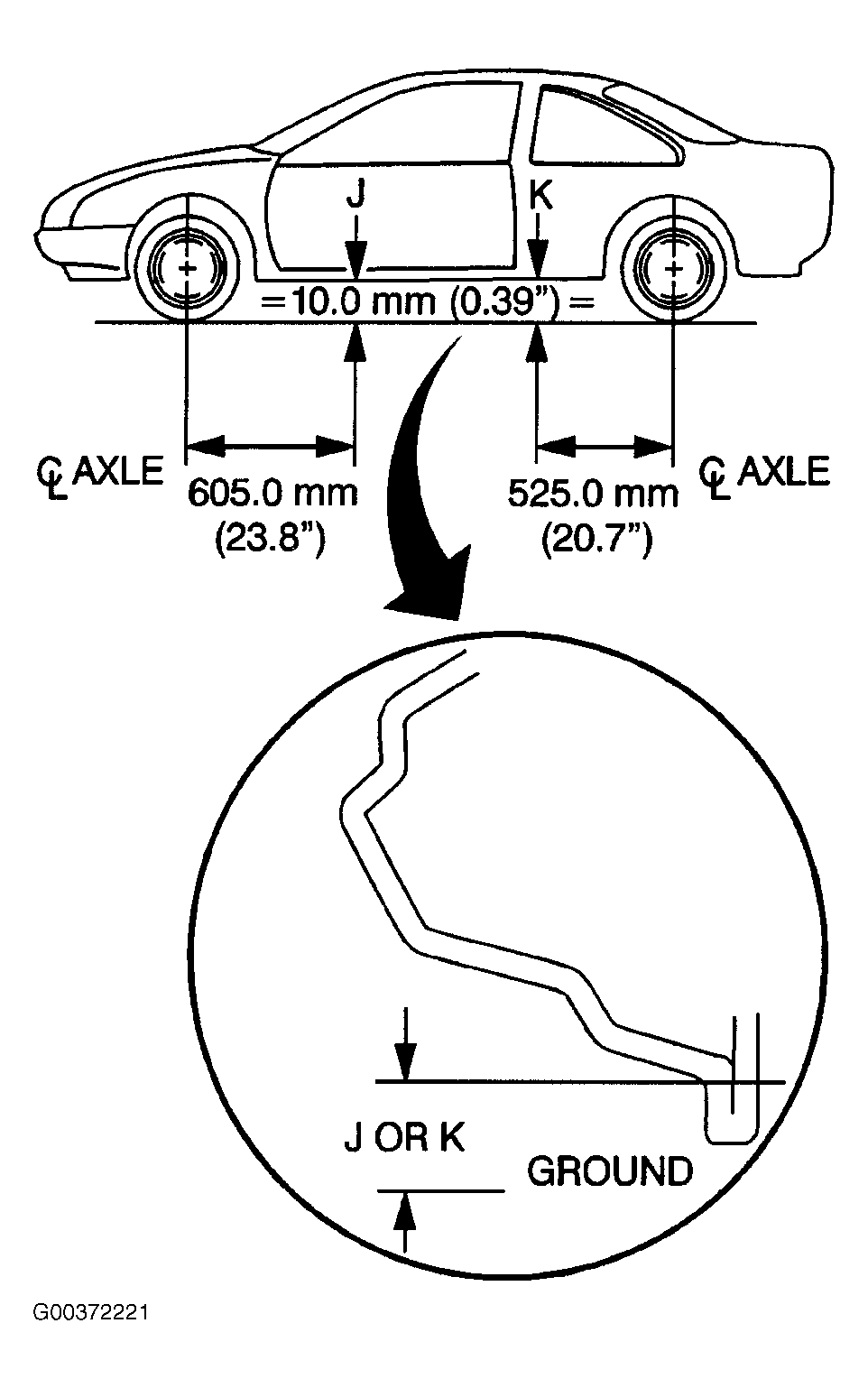

Fig 2: Measuring J Or K Trim Heights

Courtesy of GENERAL MOTORS CORP.
