Fuel Sender Assembly: Removal

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Fuel pump is located in fuel tank and is integral with fuel sender assembly. Remove fuel tank. See FUEL TANK .
Using compressed air, clean area at top of fuel tank around any fittings to be disconnected. Disconnect EVAP and fuel lines at fuel sender assembly. See FUEL LINE DISCONNECT FITTINGS . Disconnect electrical connections at fuel sender assembly.

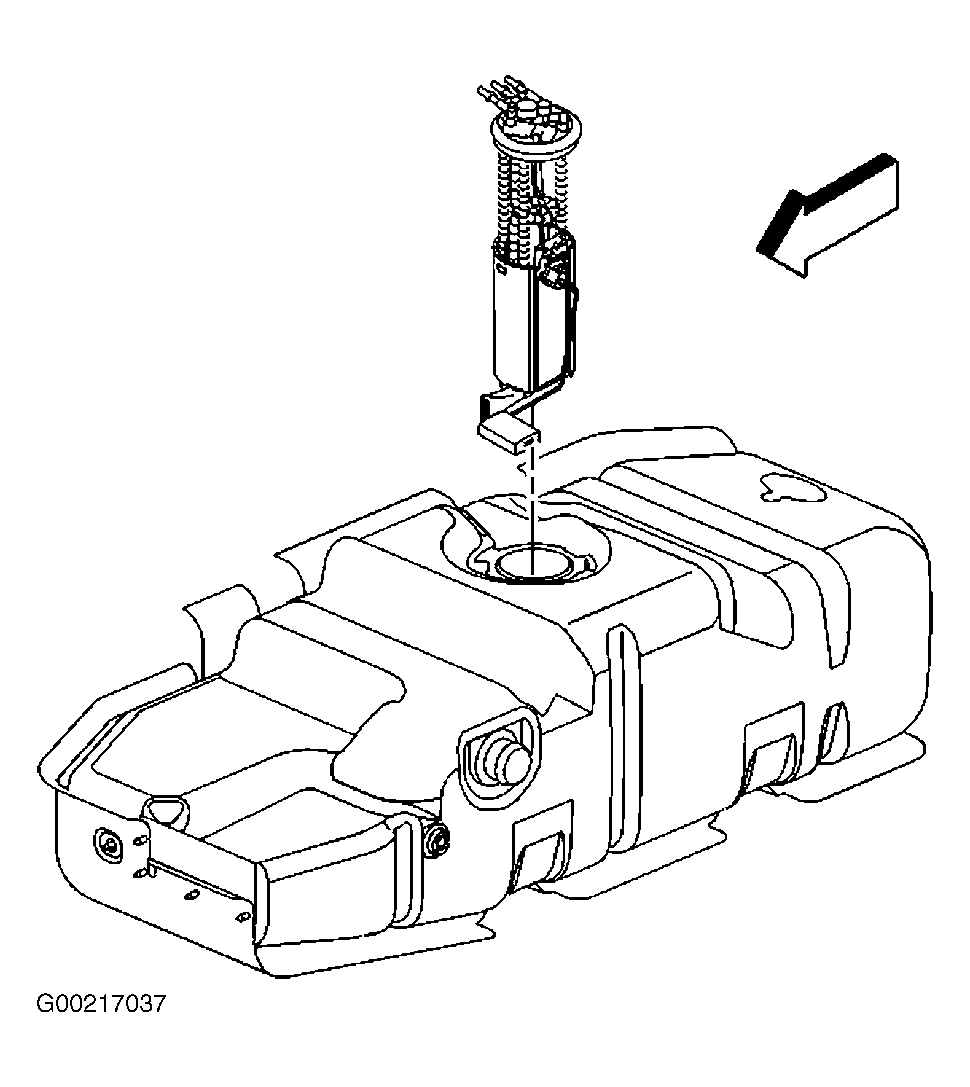

Remove fuel sender assembly retaining ring using Retaining Ring Remover/Installer (J-39765). Lift fuel sender assembly from fuel tank. See Figure . Drain any fuel from the fuel sender assembly into an approved container. Remove and discard fuel sender assembly "O" ring.
