Ignition Coil: Installation
WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

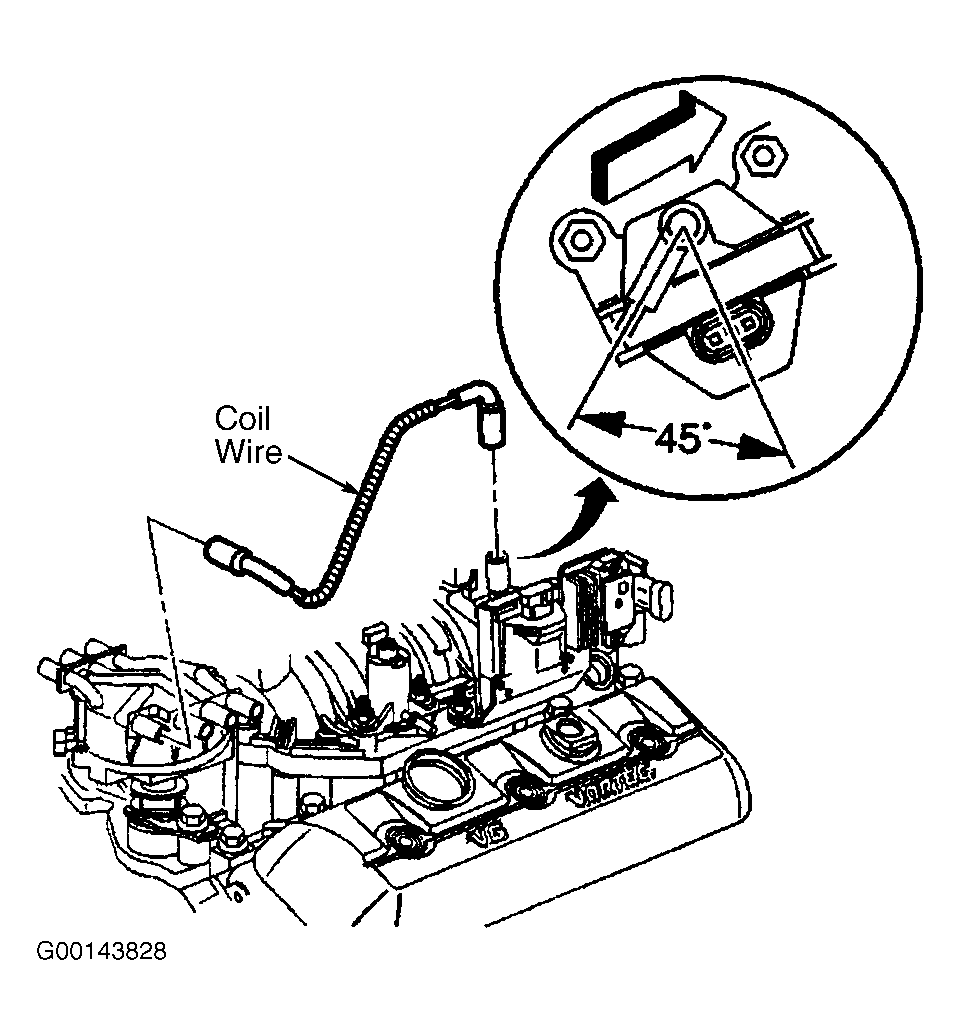

Install ignition coil to bracket with screws supplied with replacement ignition coil. To complete installation, reverse removal procedure. Ensure that the coil wire will not touch anything like the dip stick. See Figure . Rubbing will make a ground or short after time of use. Tighten ignition coil mounting studs to specification. See TORQUE SPECIFICATIONS .
