Removal & Installation: Starter: Installation
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Install the starter. Install the starter to the engine bolts. Tighten the starter bolts to specifications. See TORQUE SPECIFICATIONS .

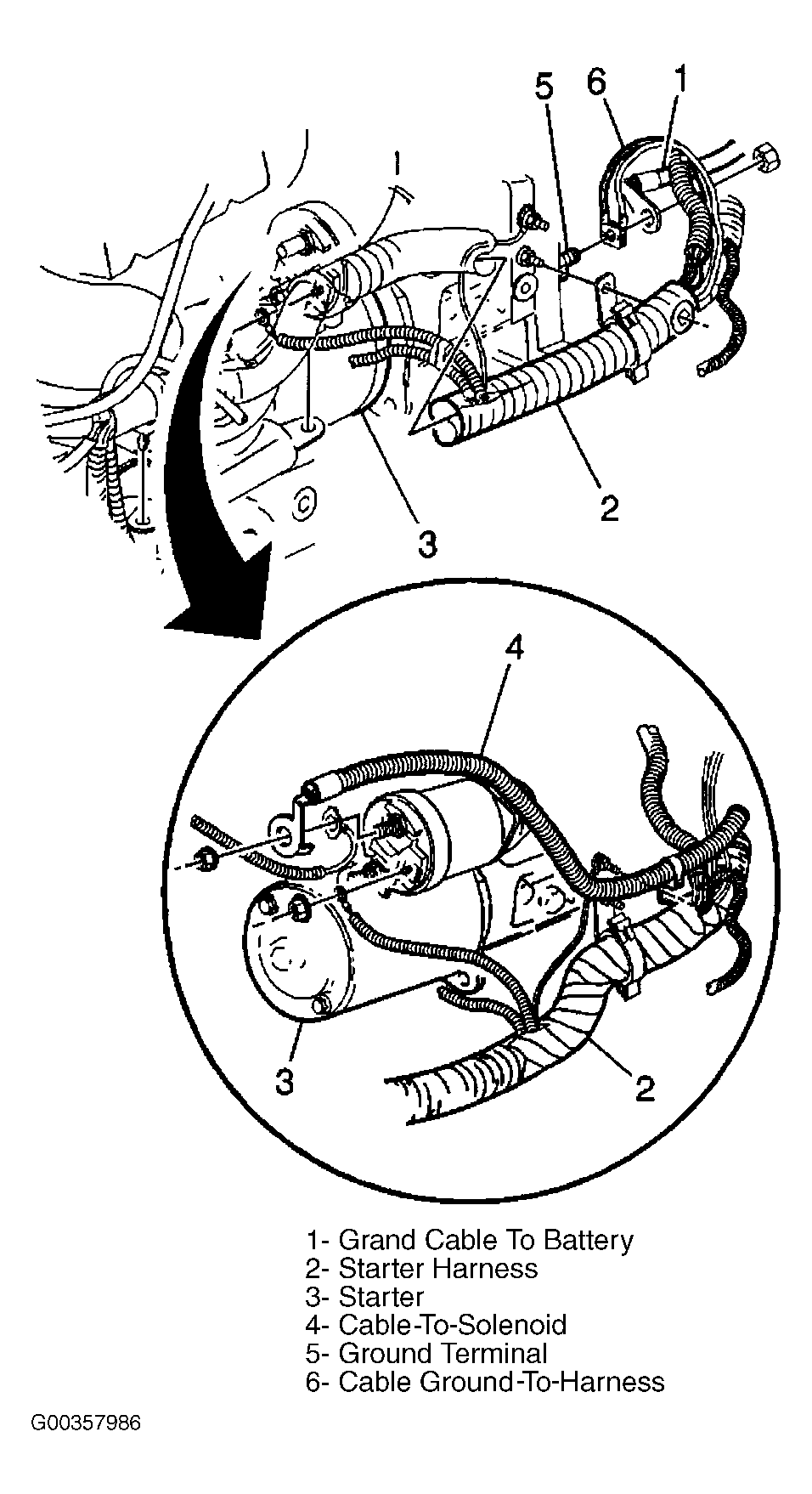

- Install flywheel inspection shield. Connect the leads to the starter. See Figure. Tighten the cable to solenoid nut to specifications. See TORQUE SPECIFICATIONS .
- Install the lower closeout panel. Lower the vehicle. Connect the negative battery cable. Tighten battery cable to specifications. See TORQUE SPECIFICATIONS .
