Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment lid applique. Refer to Compartment Lid Applique Replacement - Rear .
  2. Remove the backup lamp bulb/sockets from the applique by rotating counterclockwise.

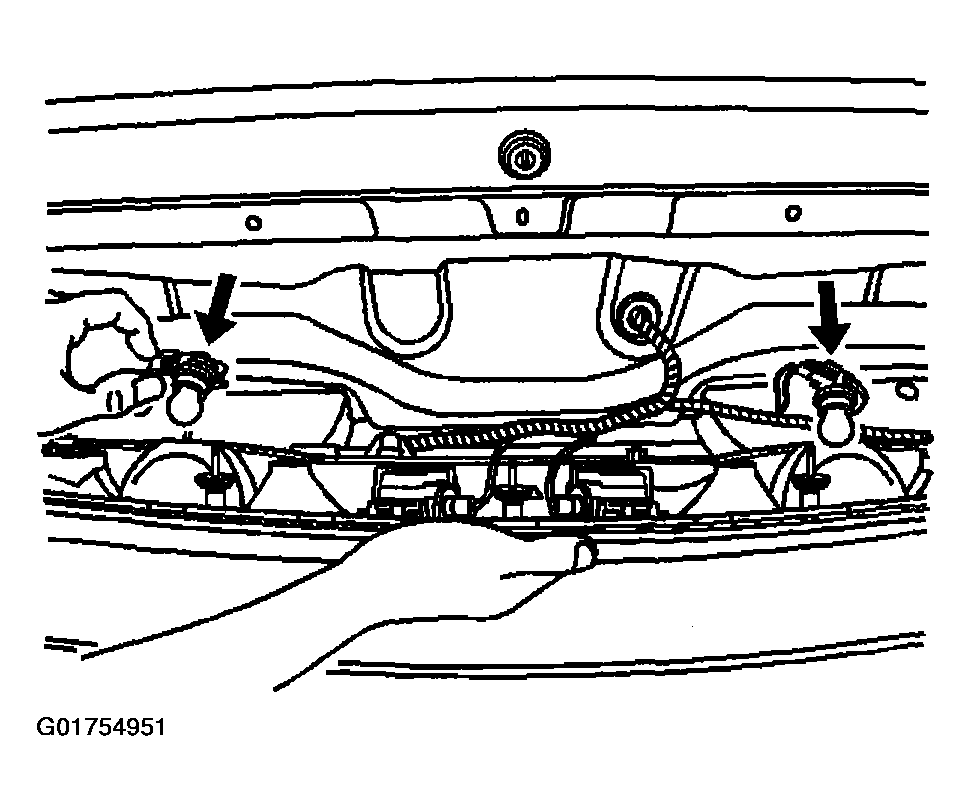

    3. Fig 1: Identifying Backup Lamp Bulb/Sockets
    G01754951Courtesy of GENERAL MOTORS CORP.
  3. Remove the backup lamp bulbs from the sockets, if required.
