Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the dome lamp base plate.
    Fig 1: Identifying Dome Lamp Electrical Connector
    G01754916Courtesy of GENERAL MOTORS CORP.
  2. Position the dome lamp base plate to the roof and install the new rivets to the base plate.
  3. Install the bulb to the dome lamp socket.
  4. Align the dome lamp housing to the base plate and press into place until fully seated.

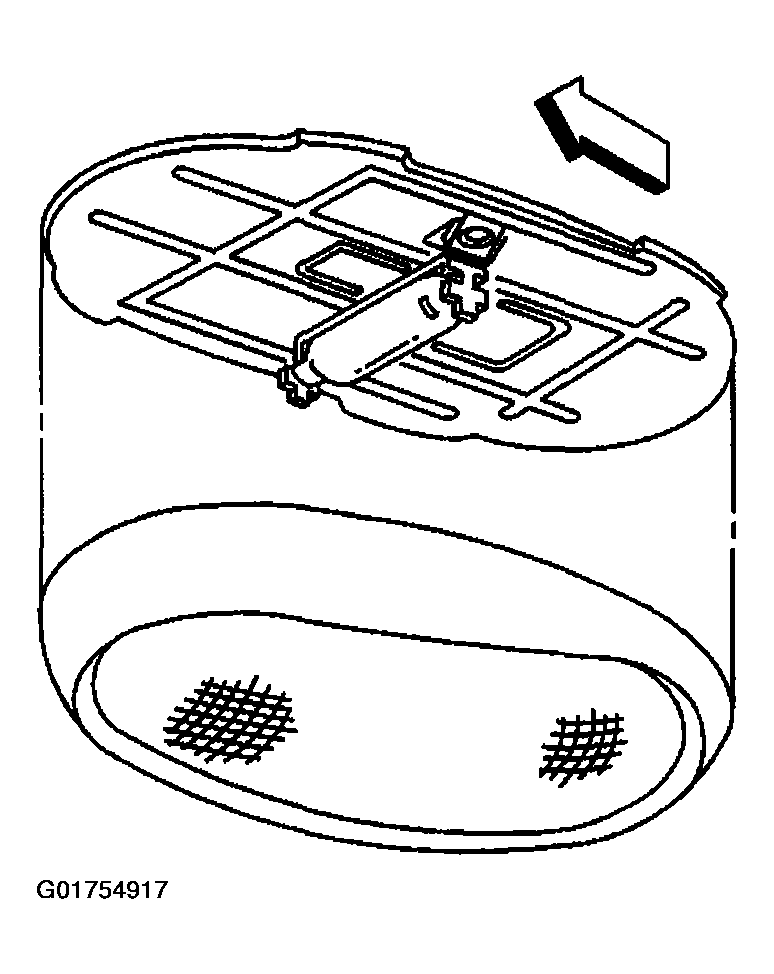

    Fig 2: Identifying Dome Lamp Housing
    G01754917Courtesy of GENERAL MOTORS CORP.
