Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the rearward edge of the access opening cover outboard on the left side of the instrument panel (I/P) to release the retainers. Use a plastic flat-bladed tool as an aid if necessary.
  2. Release the forward edge of the access opening cover from behind the hinge pillar and remove the cover.
  3. Remove the headlamp switch screws.

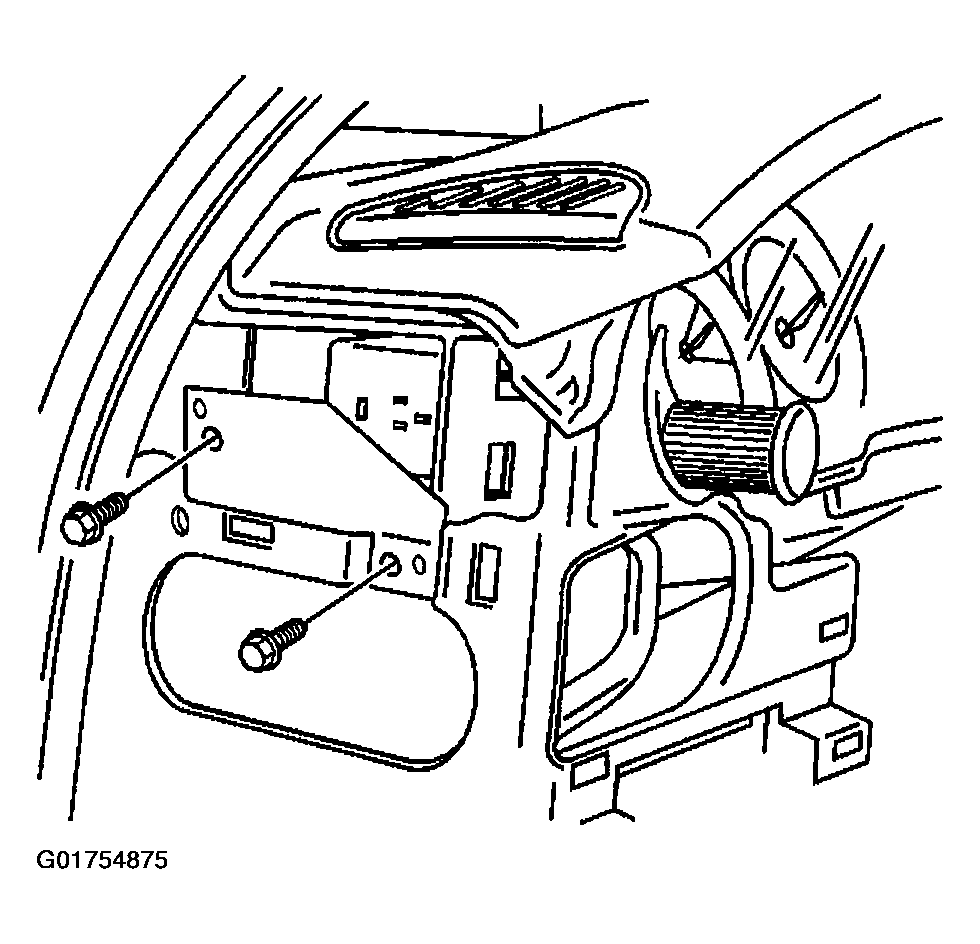

    Fig 1: Identifying Headlamp Switch Screws
    G01754875Courtesy of GENERAL MOTORS CORP.
  4. Carefully pull the headlamp switch outboard away from the I/P to access the electrical connector.
  5. Disconnect the electrical connector from the headlamp switch.

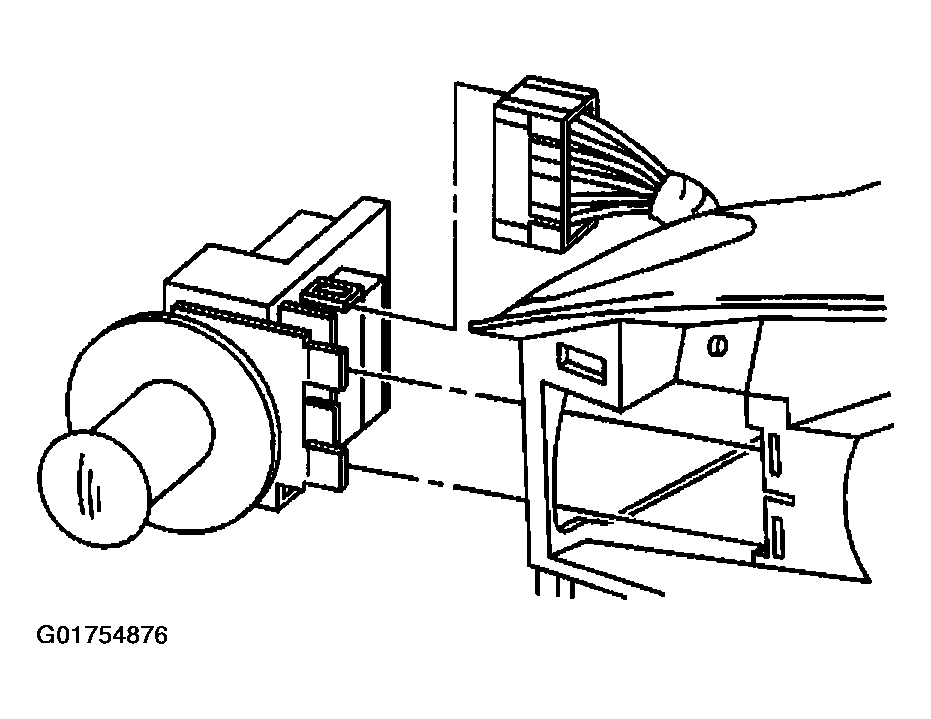

    Fig 2: Identifying Headlamp Switch & Electrical Connector
    G01754876Courtesy of GENERAL MOTORS CORP.
