Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the I/P compartment lamp switch.
  2. Press the switch into the opening.
  3. Close the I/P compartment door.

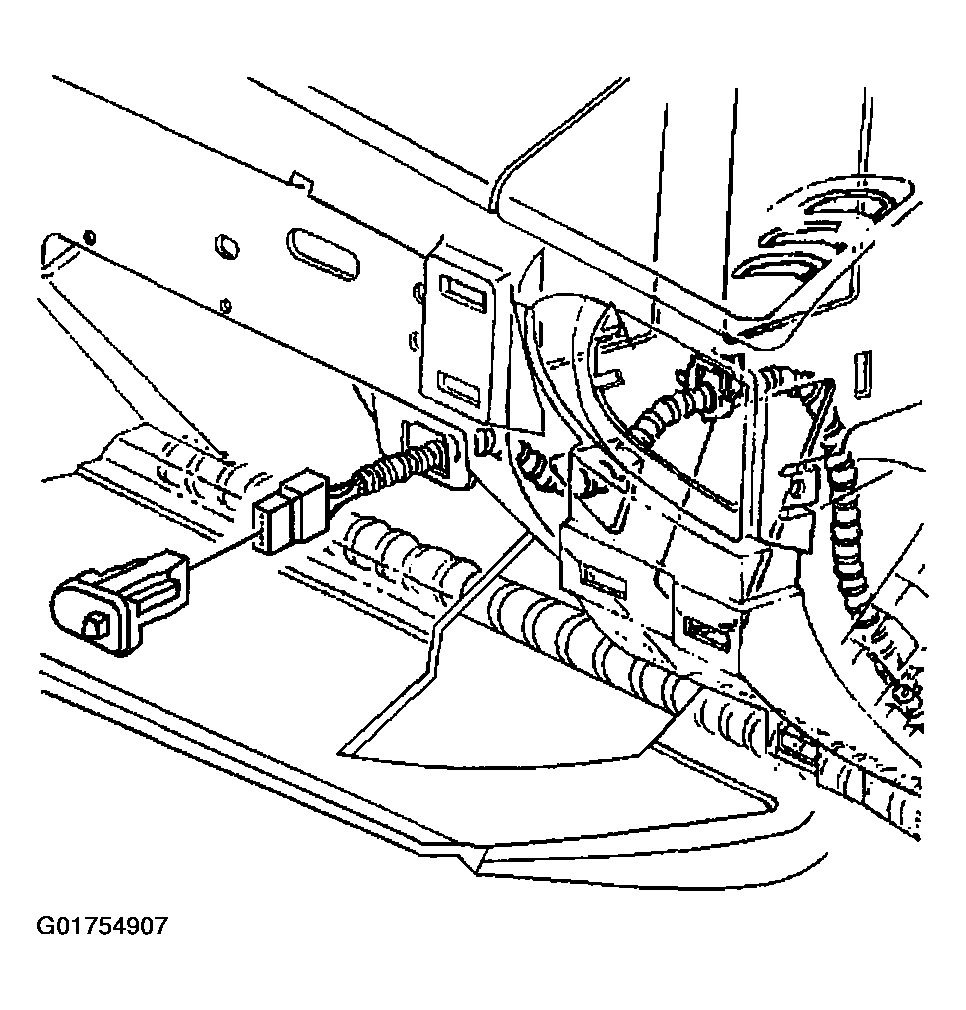

    Fig 1: Identifying IP Compartment Lamp Switch
    G01754907Courtesy of GENERAL MOTORS CORP.
