Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel (I/P) compartment door.
  2. Depress the retaining tabs on the top and bottom of the I/P compartment lamp switch.
  3. Push the switch out of the opening.
  4. Pull the bulb from the switch.

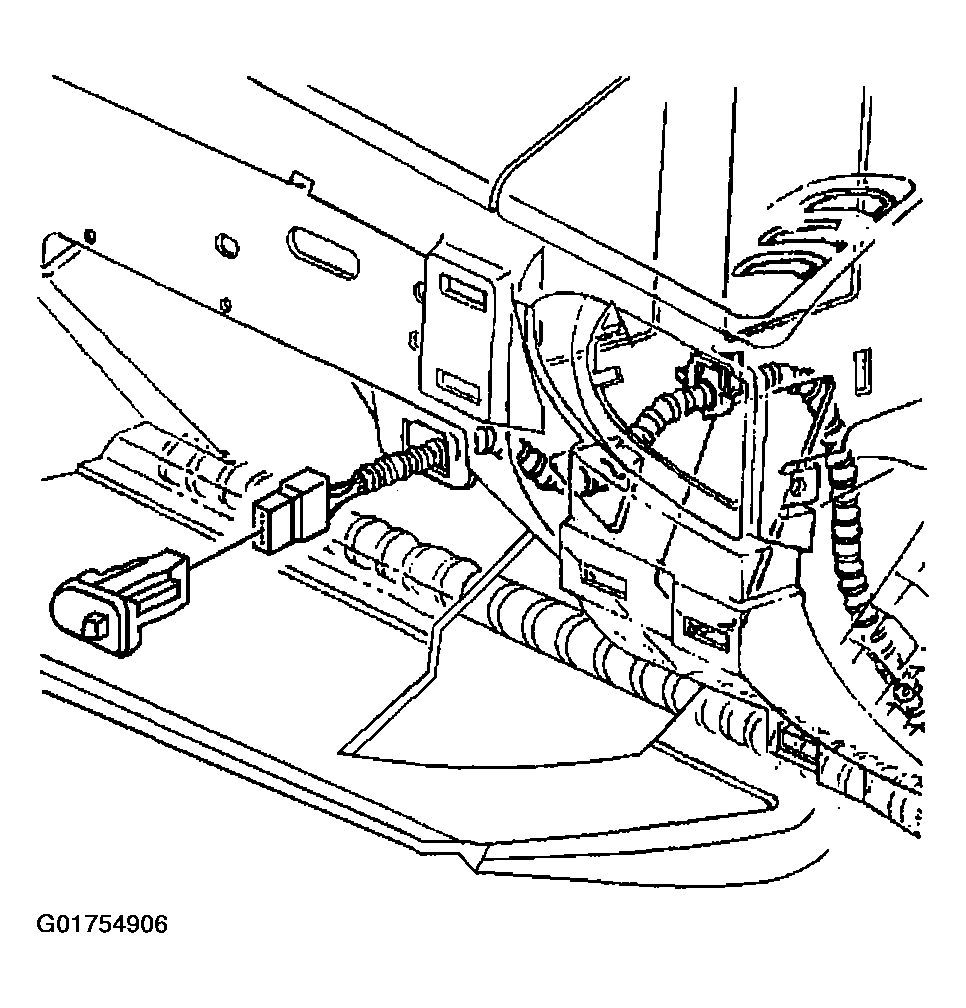

    Fig 1: Identifying IP Compartment Lamp Switch
    G01754906Courtesy of GENERAL MOTORS CORP.
