Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb into the socket.

Fig 1: Identifying Vanity Mirror Lamp Bulbs
Courtesy of GENERAL MOTORS CORP.
Position the vanity mirror lamp lens to the sunshade.
Align the lens tabs into the housing slots and insert the upper edge of the lens first.

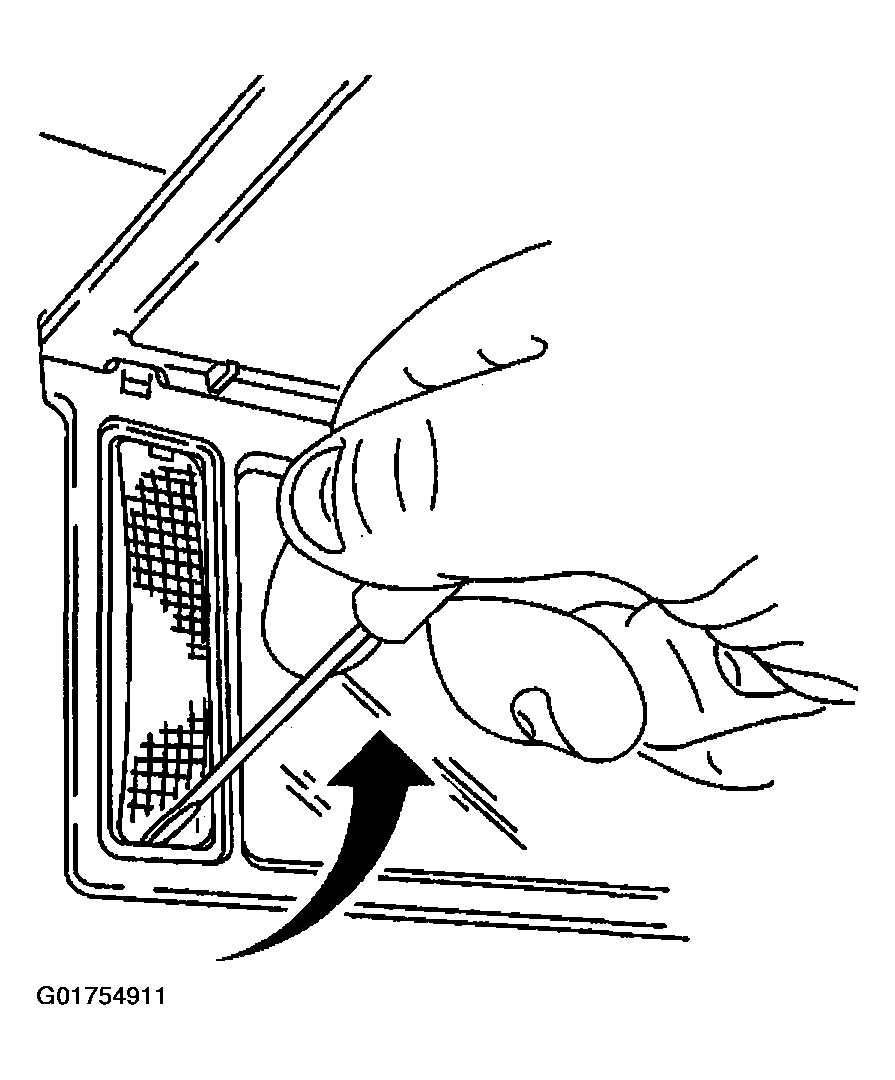

Insert a small flat-bladed tool at the lower edge of the vanity mirror lamp lens then press up to fully install the lens.
Close the lamp cover door and raise the sunshade.

Fig 2: Installing Lamp Lens
Courtesy of GENERAL MOTORS CORP.
