Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure accumulator switch to the BPMV. Tighten the pressure accumulator switch to 3 N.m (30 lbs in).
    2. Fig 1: Installation Of Pressure Accumulator Switch To The BPMV
    G01664083Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the pressure accumulator switch.

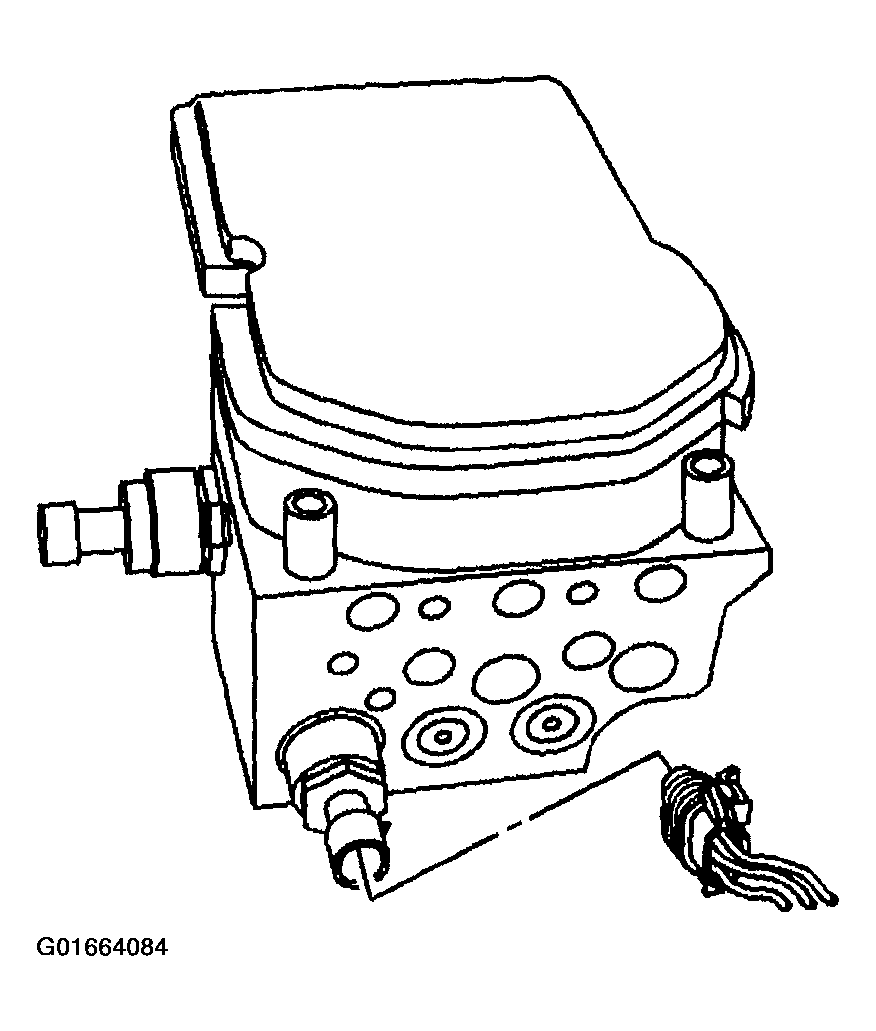

    3. Fig 2: Installation Of Electrical Connector To The Pressure Accumulator Switch
    G01664084Courtesy of GENERAL MOTORS CORP.
  3. Install the brake pressure modulator valve (BPMV) (1) and the bolts (2) to the mounting bracket (3). Tighten the bolts to 9 N.m (7 lbs ft).
  4. Lower the vehicle.

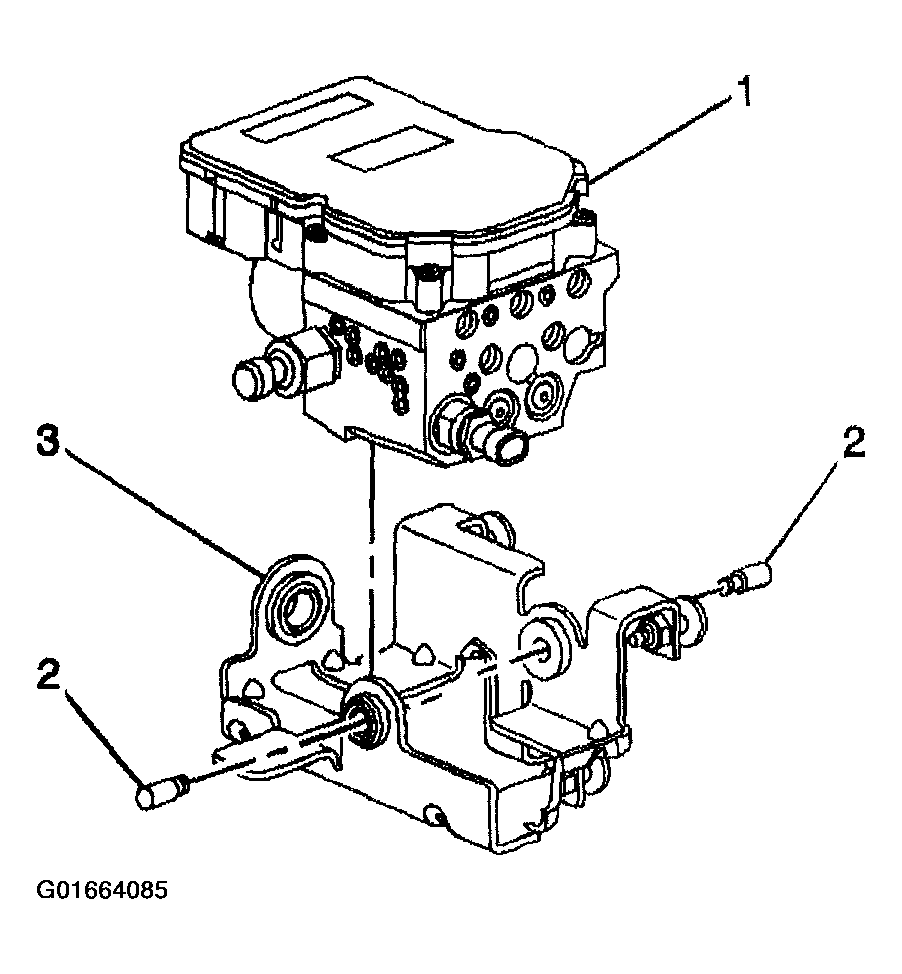

    5. Fig 3: Installing BPMV Mounting Bracket Bolts
    G01664085Courtesy of GENERAL MOTORS CORP.
