Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do not disconnect the electrical connectors.

Remove and move the console end panel rearwards. Refer to CENTER CONSOLE END PANEL REPLACEMENT .

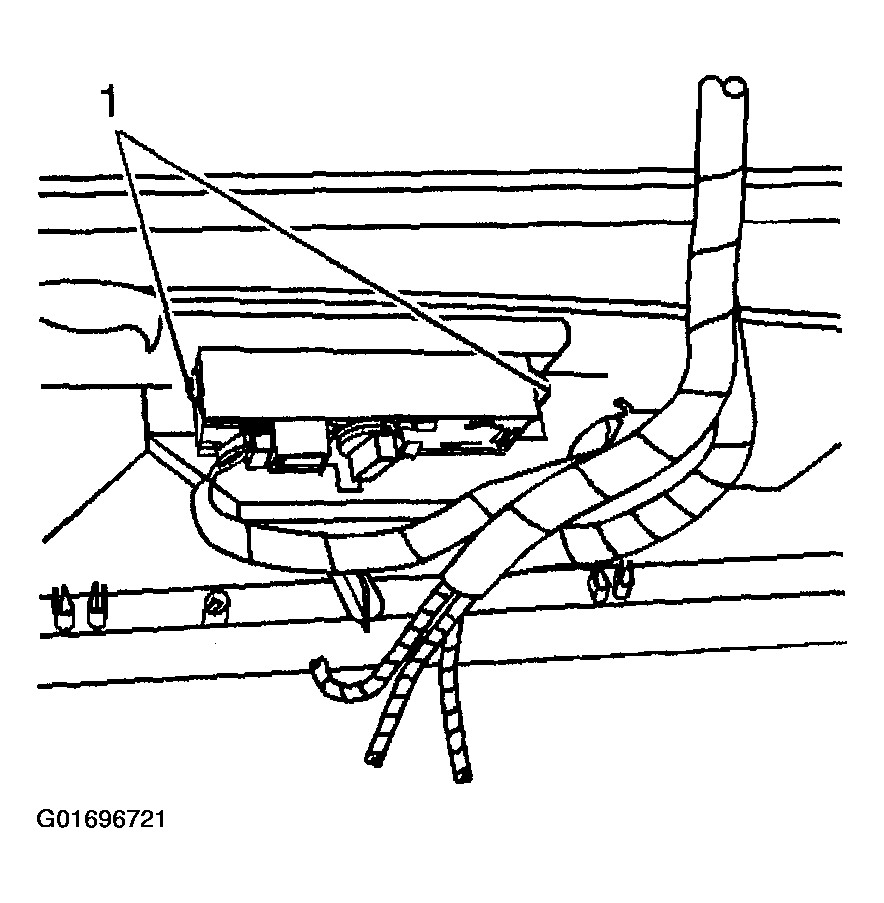

Fig 1: Console Lamp

Courtesy of GENERAL MOTORS CORP.

Press on the tabs (1) in order to remove the lamp assembly from the end panel.
Disconnect the electrical connector.
To replace the bulb turn counter clockwise to remove.
