Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the harness to the guide wire.
  2. Using the guide wire, pull the lamp wire through the hole in the roof panel.
  3. Remove the guide wire.
    NOTE: Refer to FASTENER NOTICE .

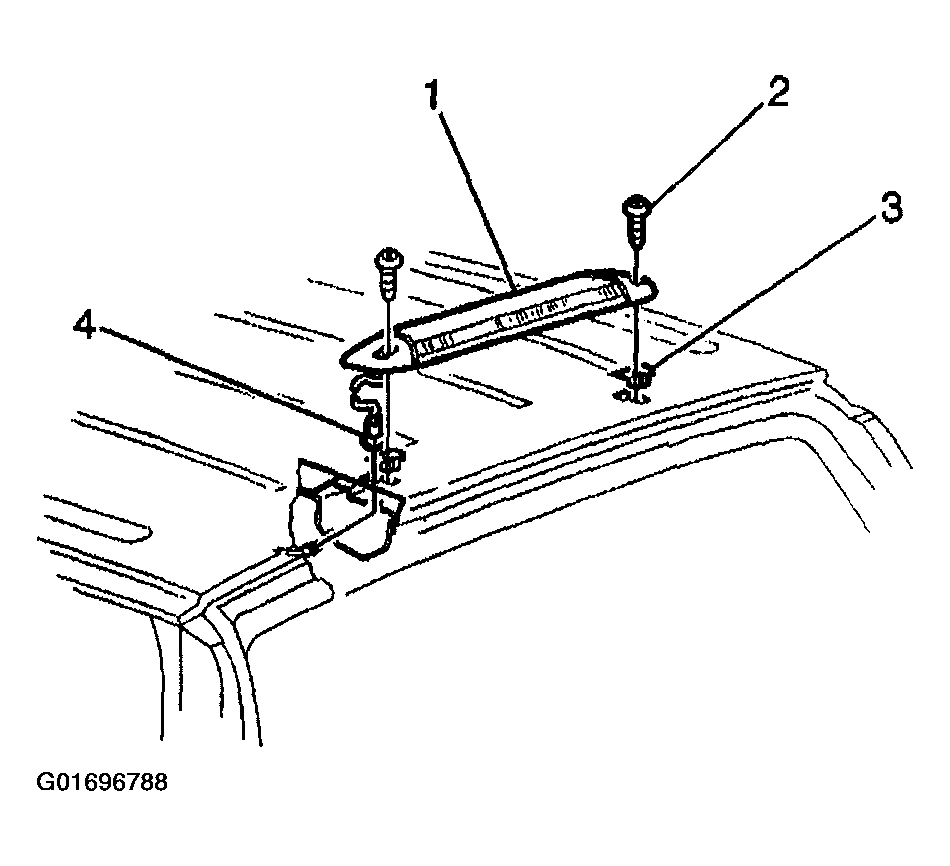

    4. Fig 1: High Mounted Stop Lamp
    G01696788Courtesy of GENERAL MOTORS CORP.
  4. Install the high mounted stoplamp (1) to the vehicle with the screws (2).

    Tighten

    Tighten the screws to 2 N.m (17 lb in).

  5. Connect the electrical connector (4).
  6. Install the headliner.
  7. Install the left and right side rear window garnish molding.
  8. Install the rear upper garnish molding.
