HVAC Connector End Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

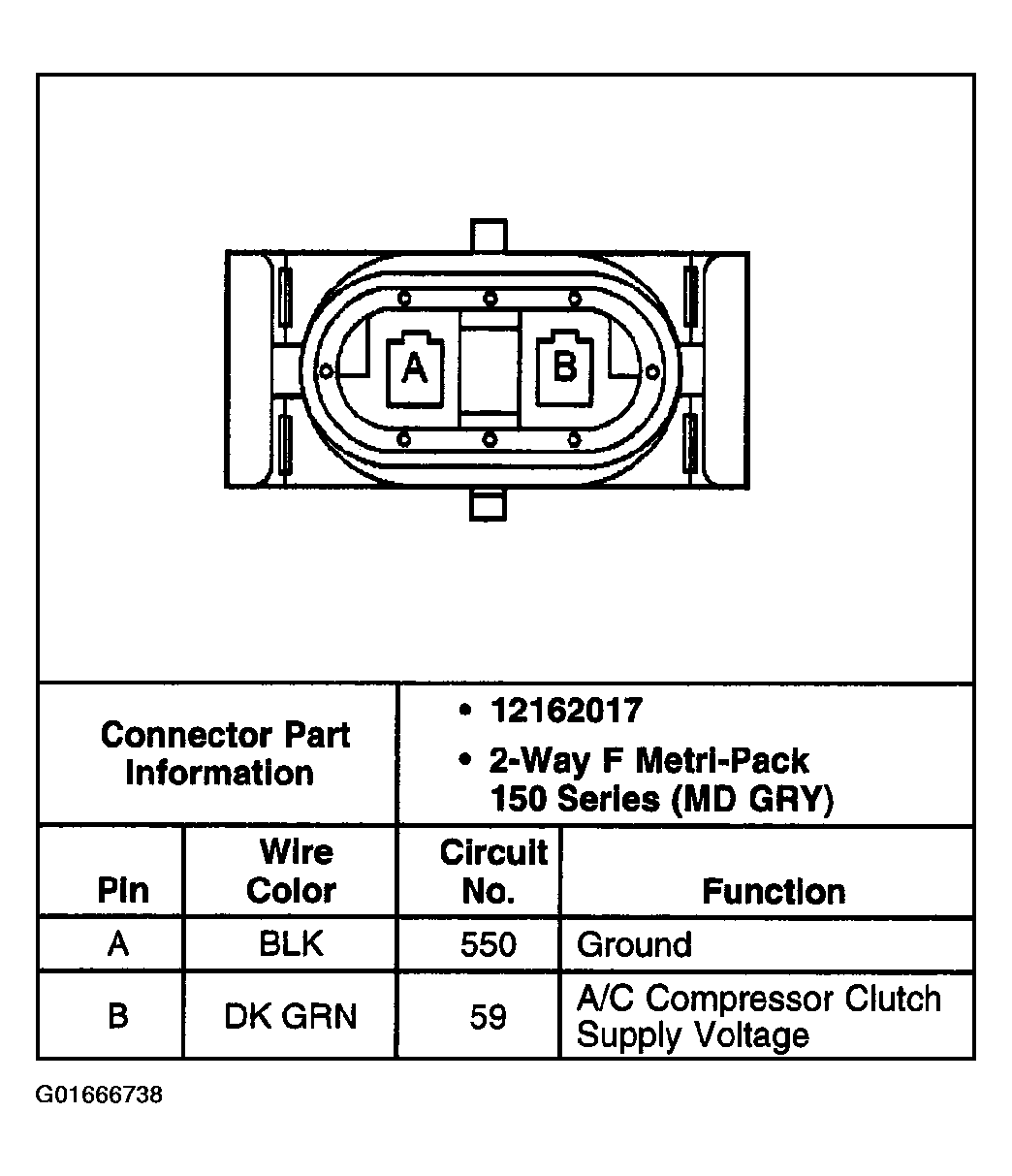

Fig 1: Identifying A/C Compressor Clutch Connector Terminals

G01666738

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying A/C High Pressure Switch Connector Terminals

G01666739

Courtesy of GENERAL MOTORS CORP.

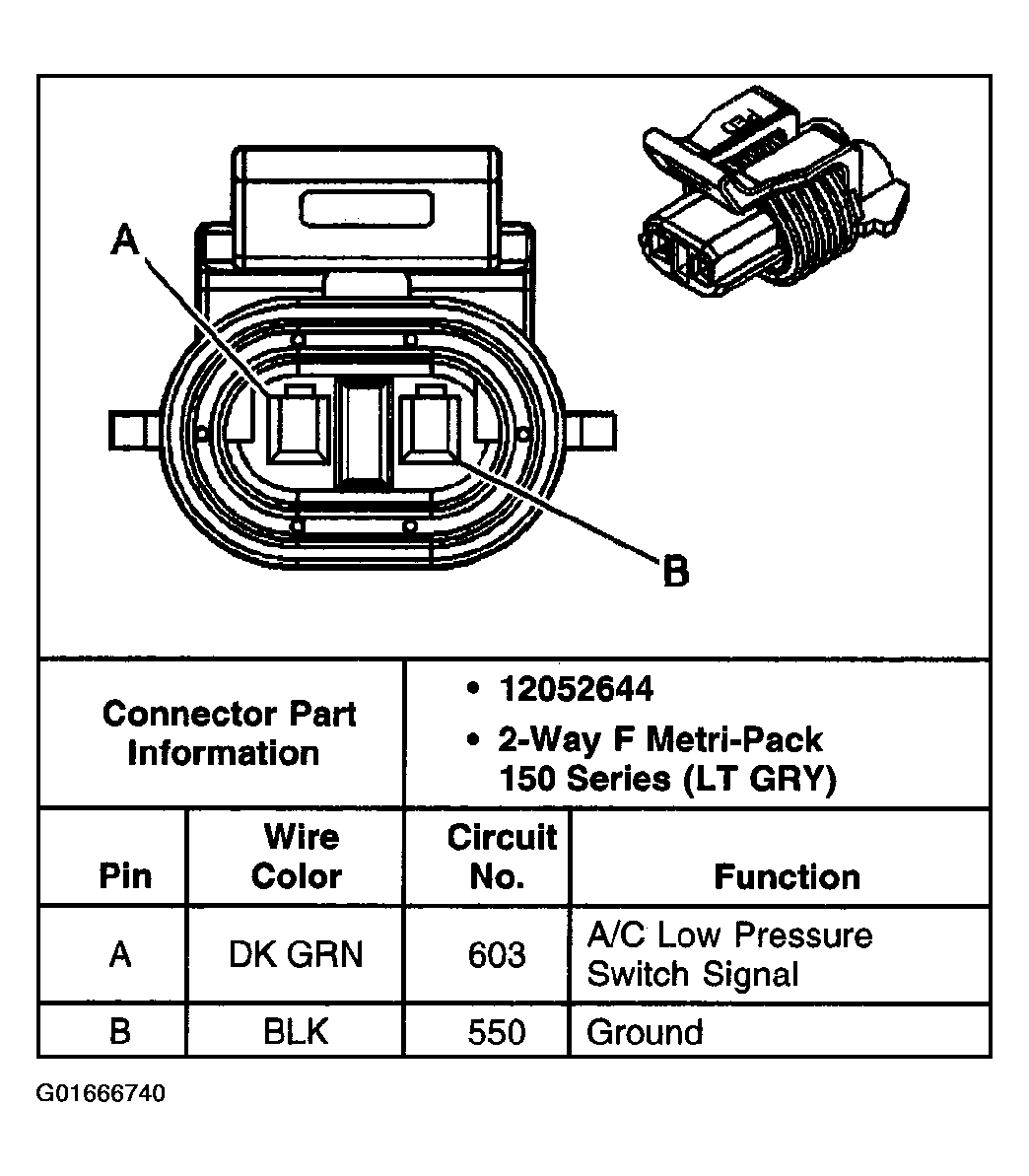

Fig 3: Identifying A/C Low Pressure Switch (ALL) Connector Terminals

G01666740

Courtesy of GENERAL MOTORS CORP.

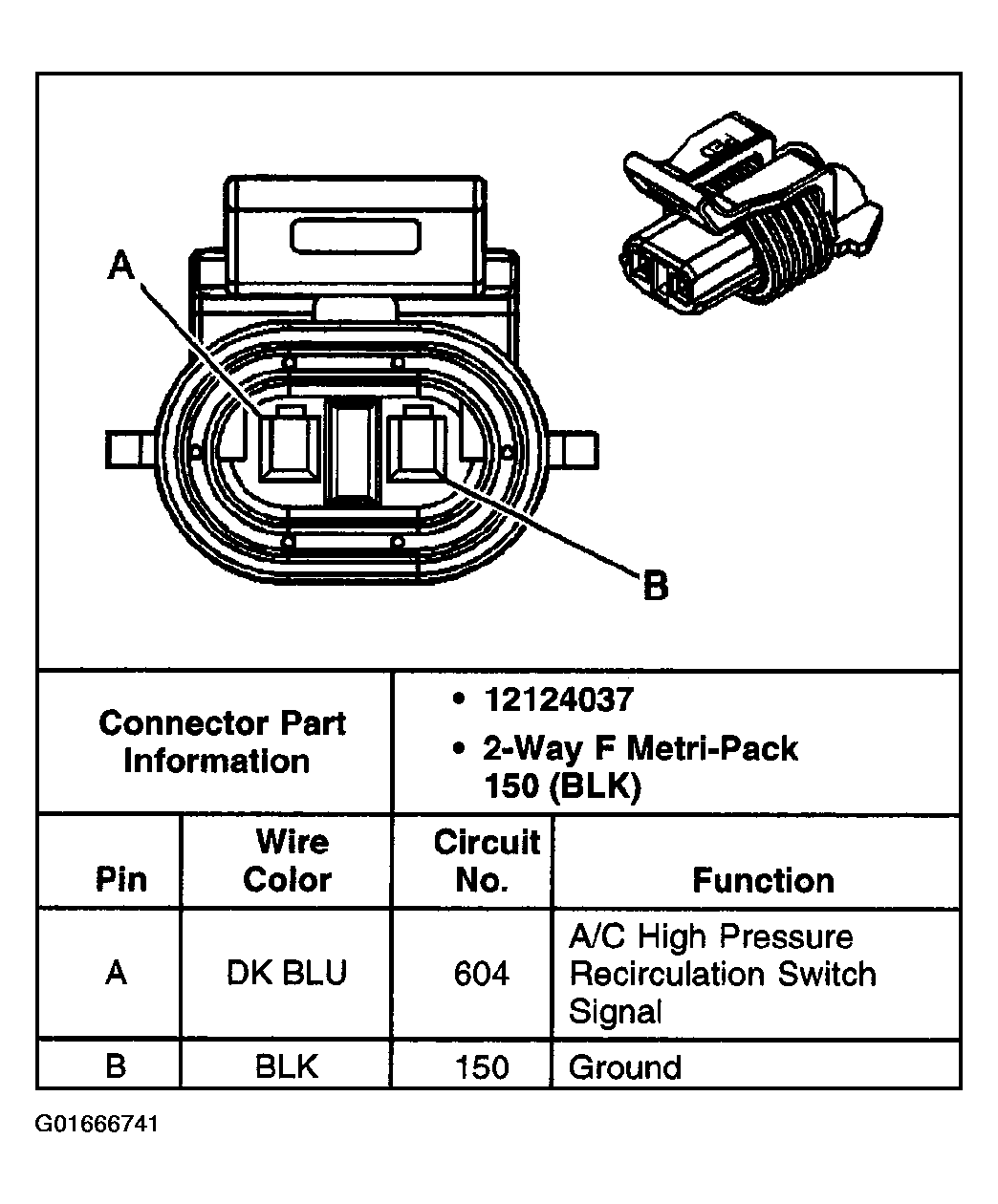

Fig 4: Identifying A/C High Pressure Recirculation Switch Connector Terminals

G01666741

Courtesy of GENERAL MOTORS CORP.

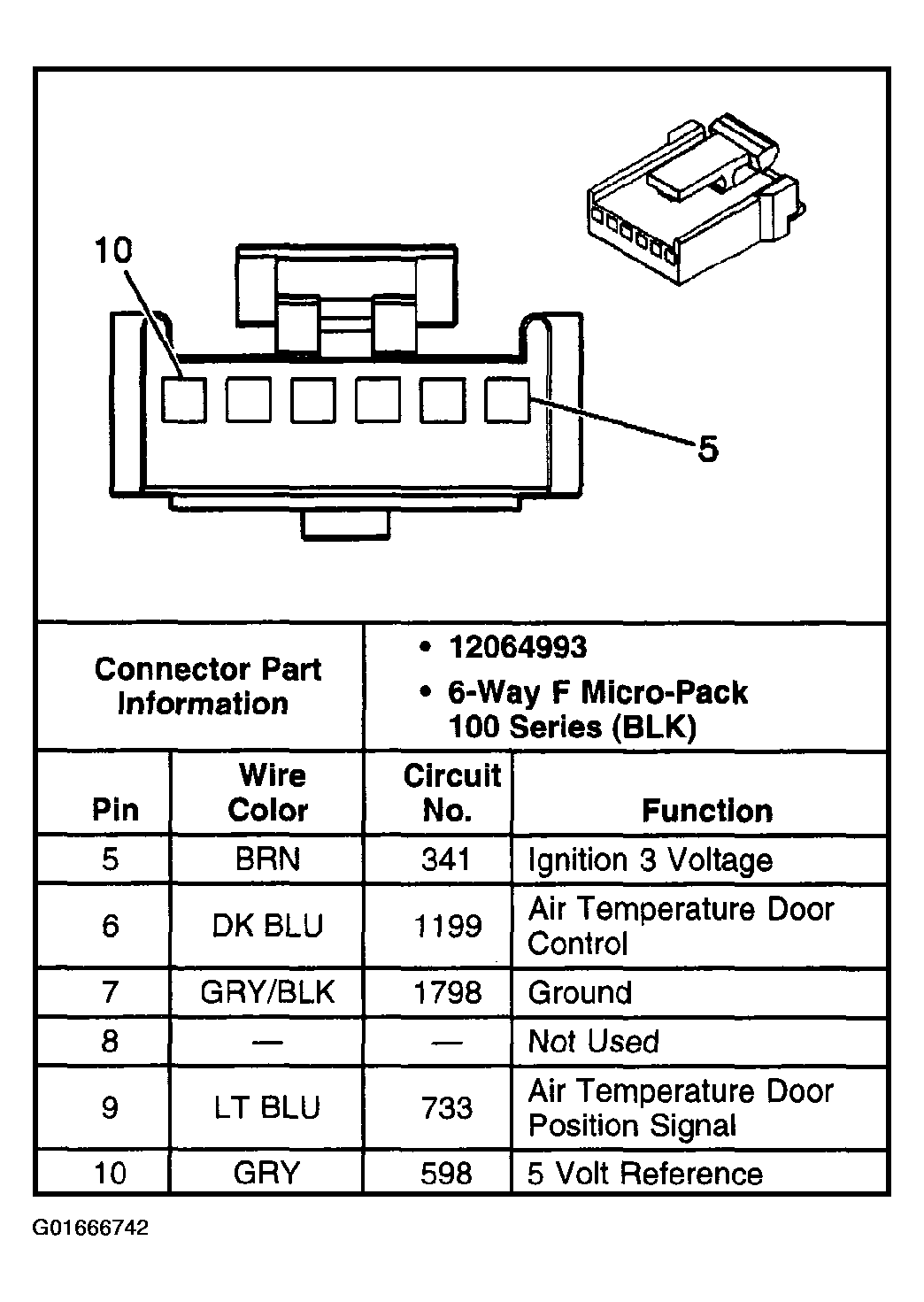

Fig 5: Identifying Air Temperature Actuator Connector Terminals

G01666742

Courtesy of GENERAL MOTORS CORP.

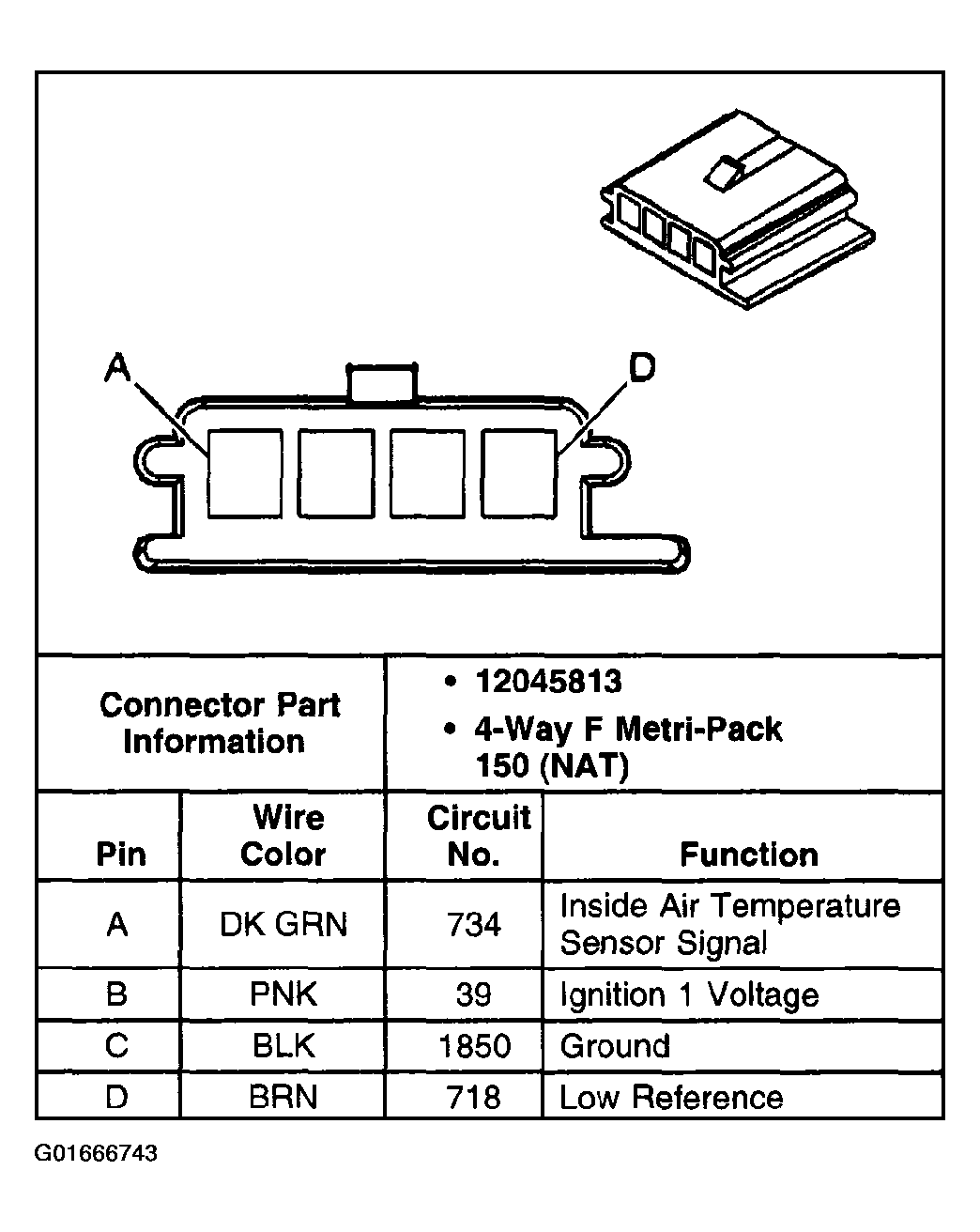

Fig 6: Identifying Air Temperature Sensor Assembly - Inside Overhead Connector Terminals

G01666743

Courtesy of GENERAL MOTORS CORP.

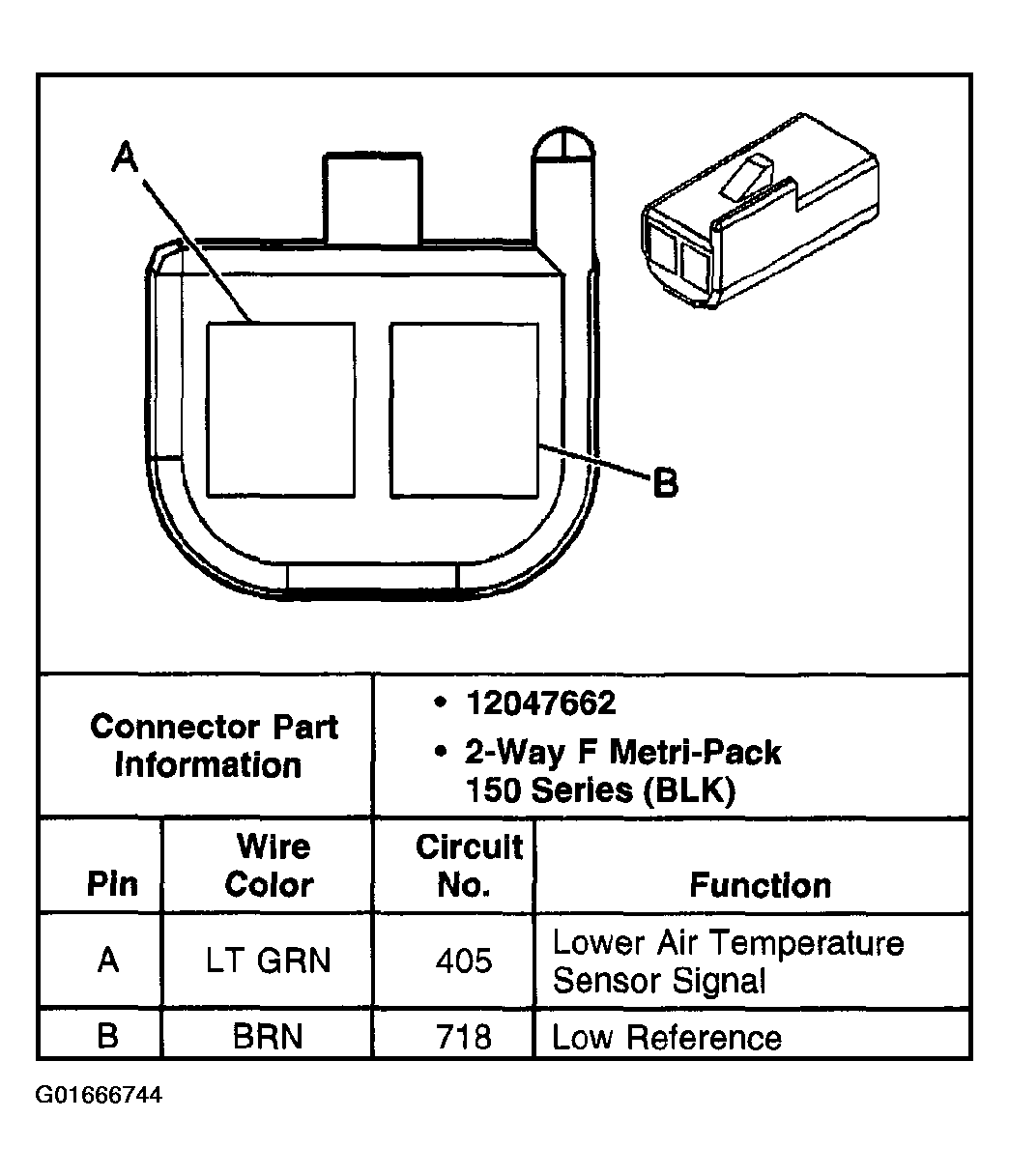

Fig 7: Identifying Air Temperature Sensor - Lower Connector Terminals

G01666744

Courtesy of GENERAL MOTORS CORP.

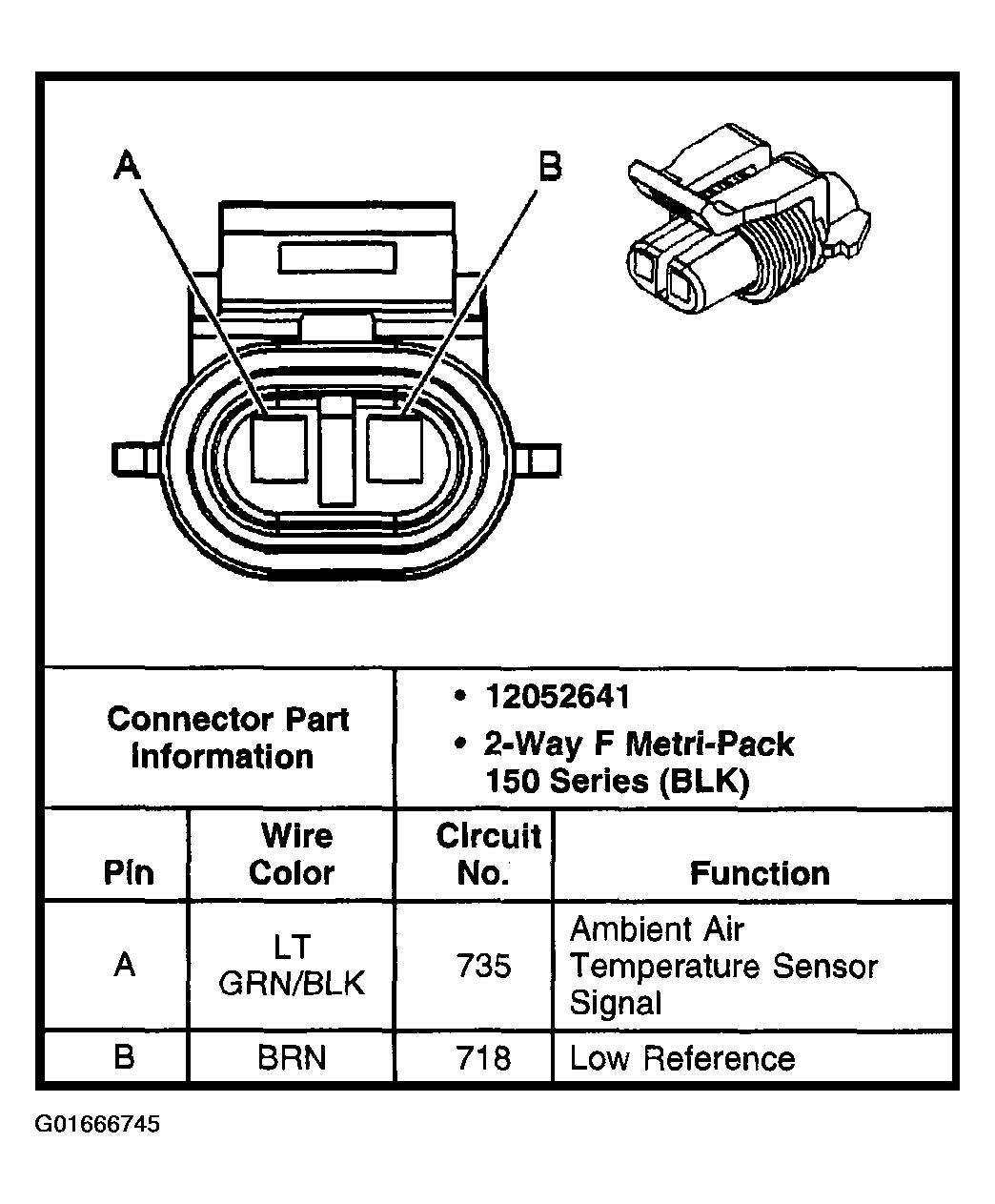

Fig 8: Identifying Air Temperature Sensor - Ambient Connector Terminals

G01666745

Courtesy of GENERAL MOTORS CORP.

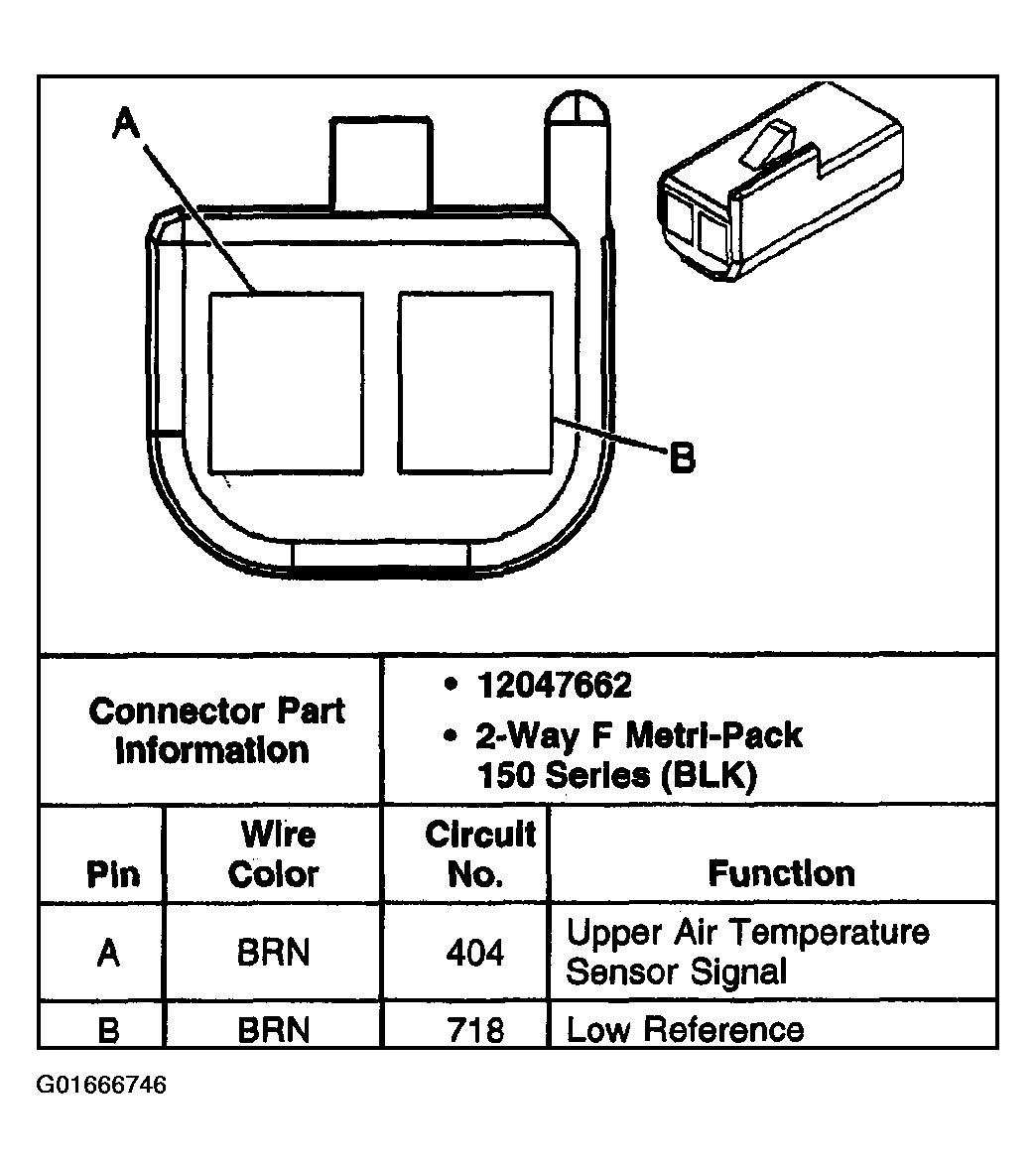

Fig 9: Identifying Air Temperature Sensor - Upper Connector Terminals

G01666746

Courtesy of GENERAL MOTORS CORP.

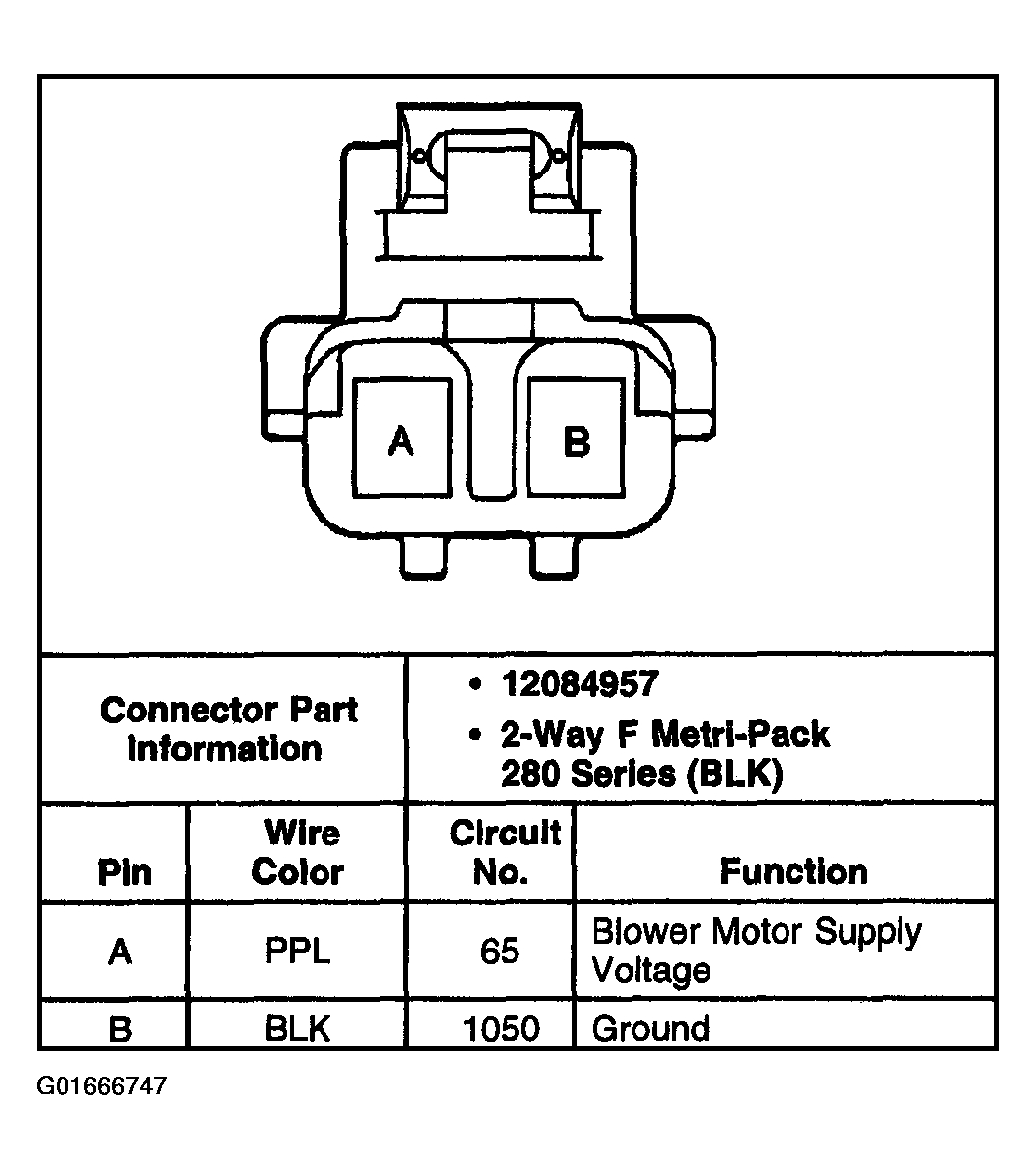

Fig 10: Identifying Blower Motor Connector Terminals

G01666747

Courtesy of GENERAL MOTORS CORP.

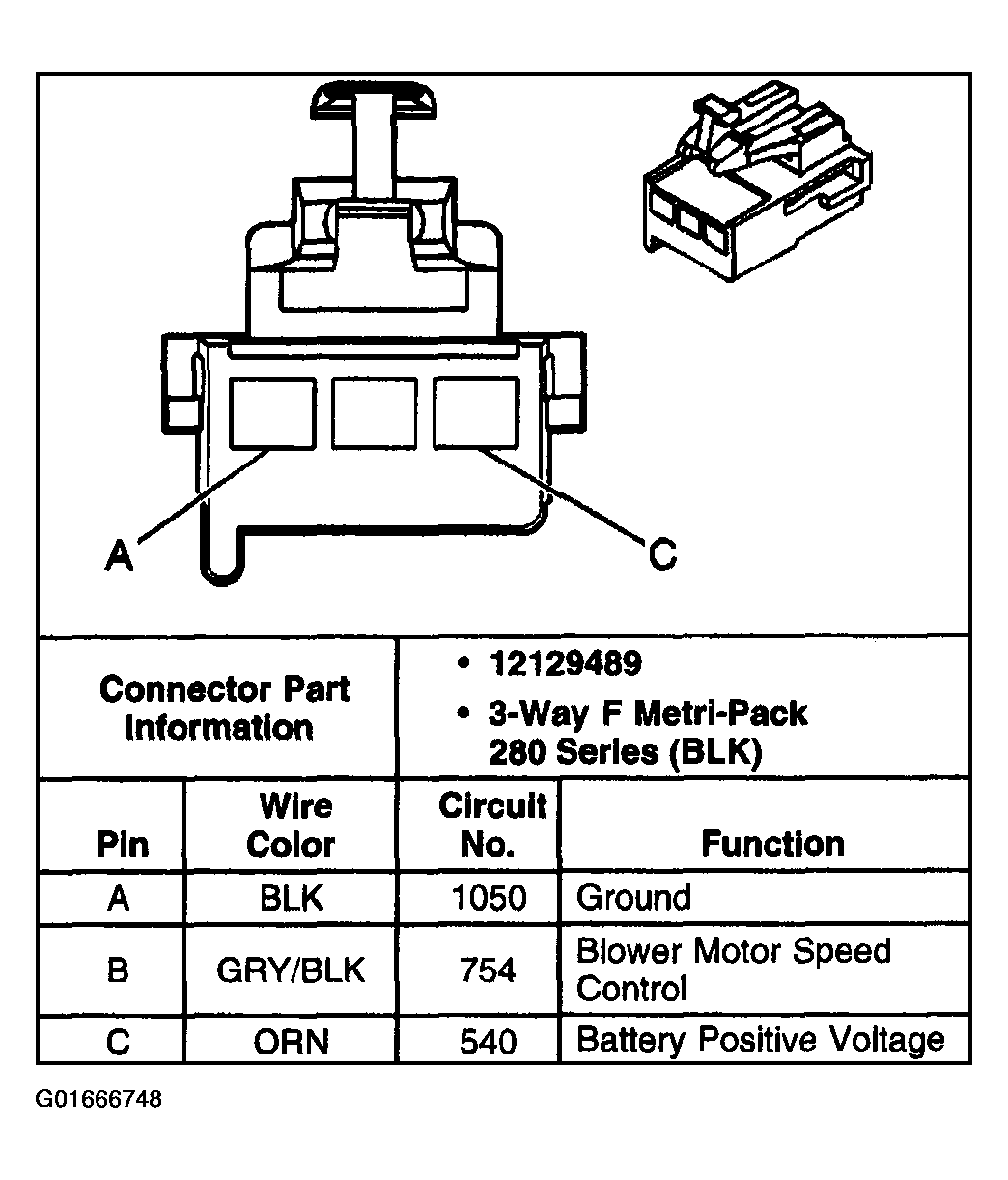

Fig 11: Identifying Blower Motor Control Processor Connector Terminals

G01666748

Courtesy of GENERAL MOTORS CORP.

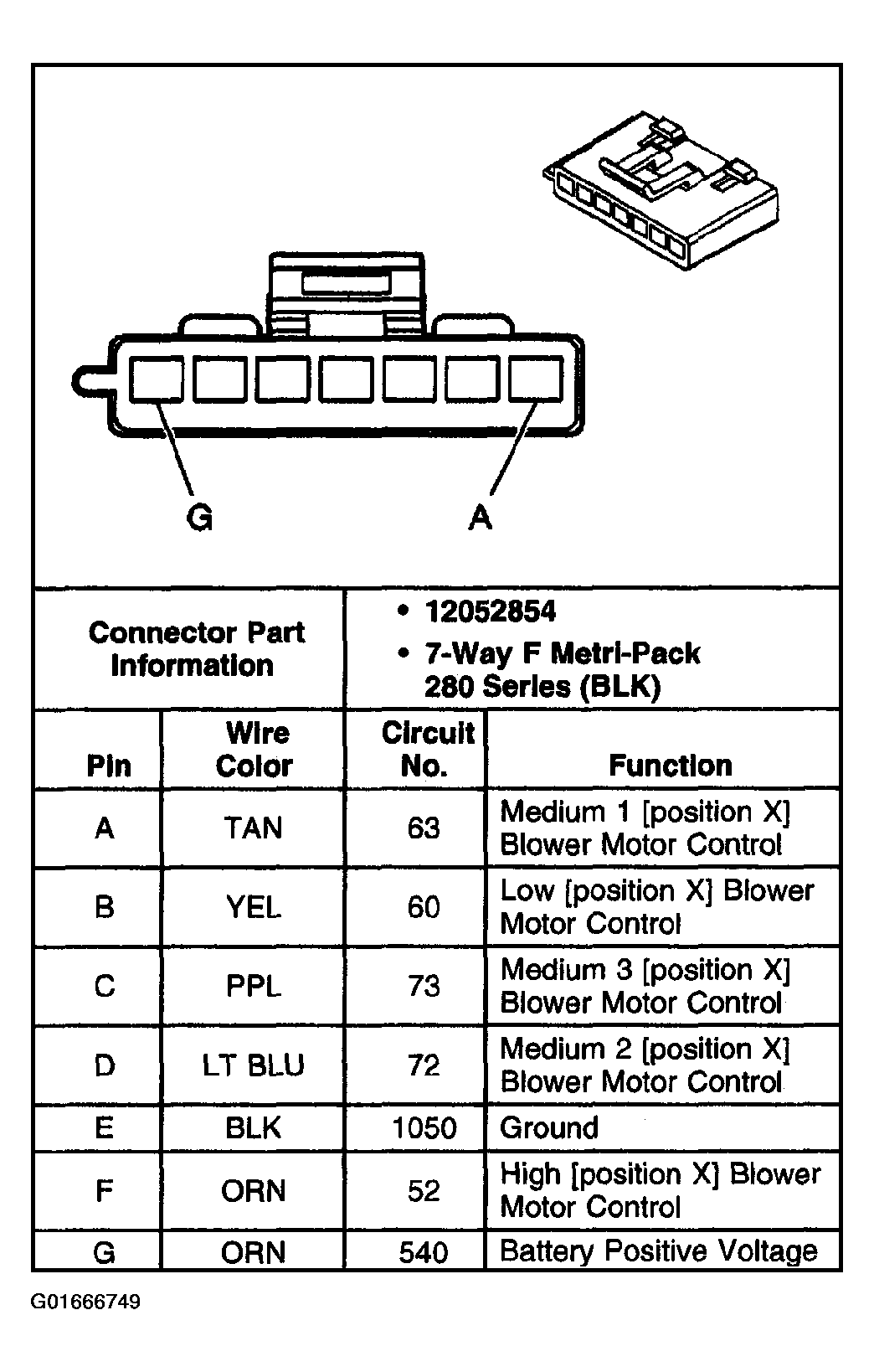

Fig 12: Identifying Blower Motor Resistor Assembly Connector Terminals

G01666749

Courtesy of GENERAL MOTORS CORP.

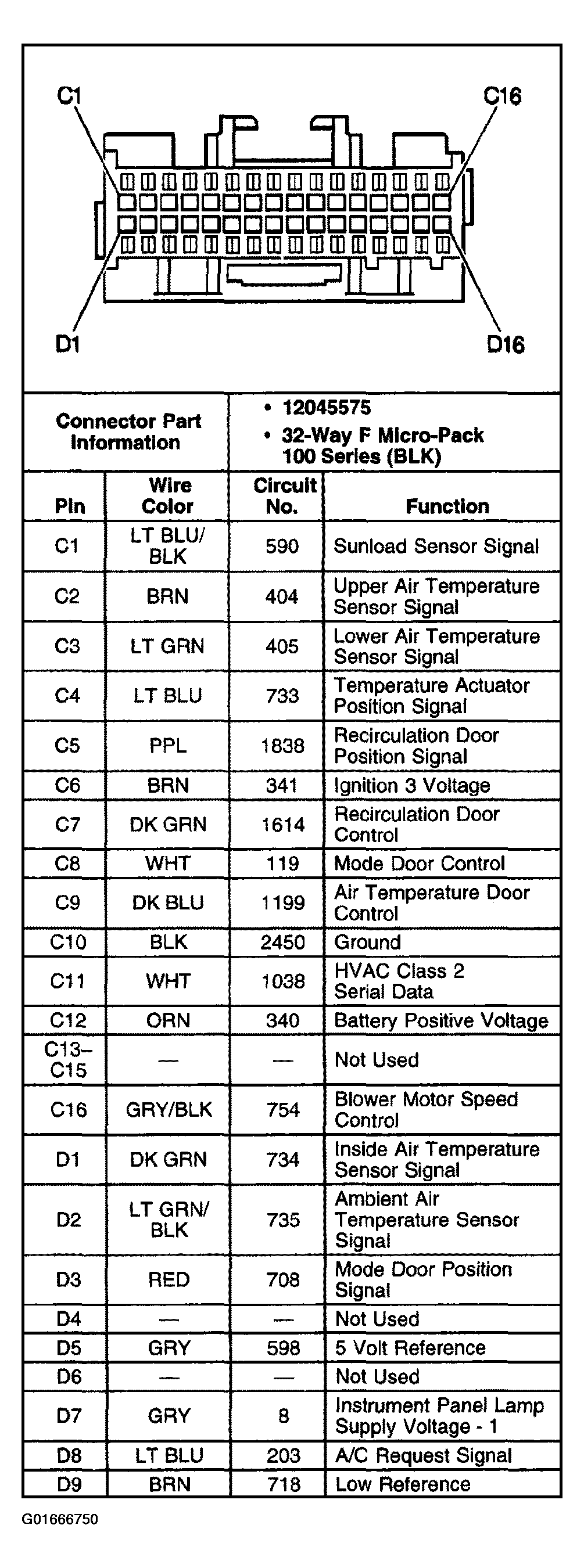

Fig 13: Identifying HVAC Control Module Connector Terminals (1 Of 2)

G01666750

Courtesy of GENERAL MOTORS CORP.

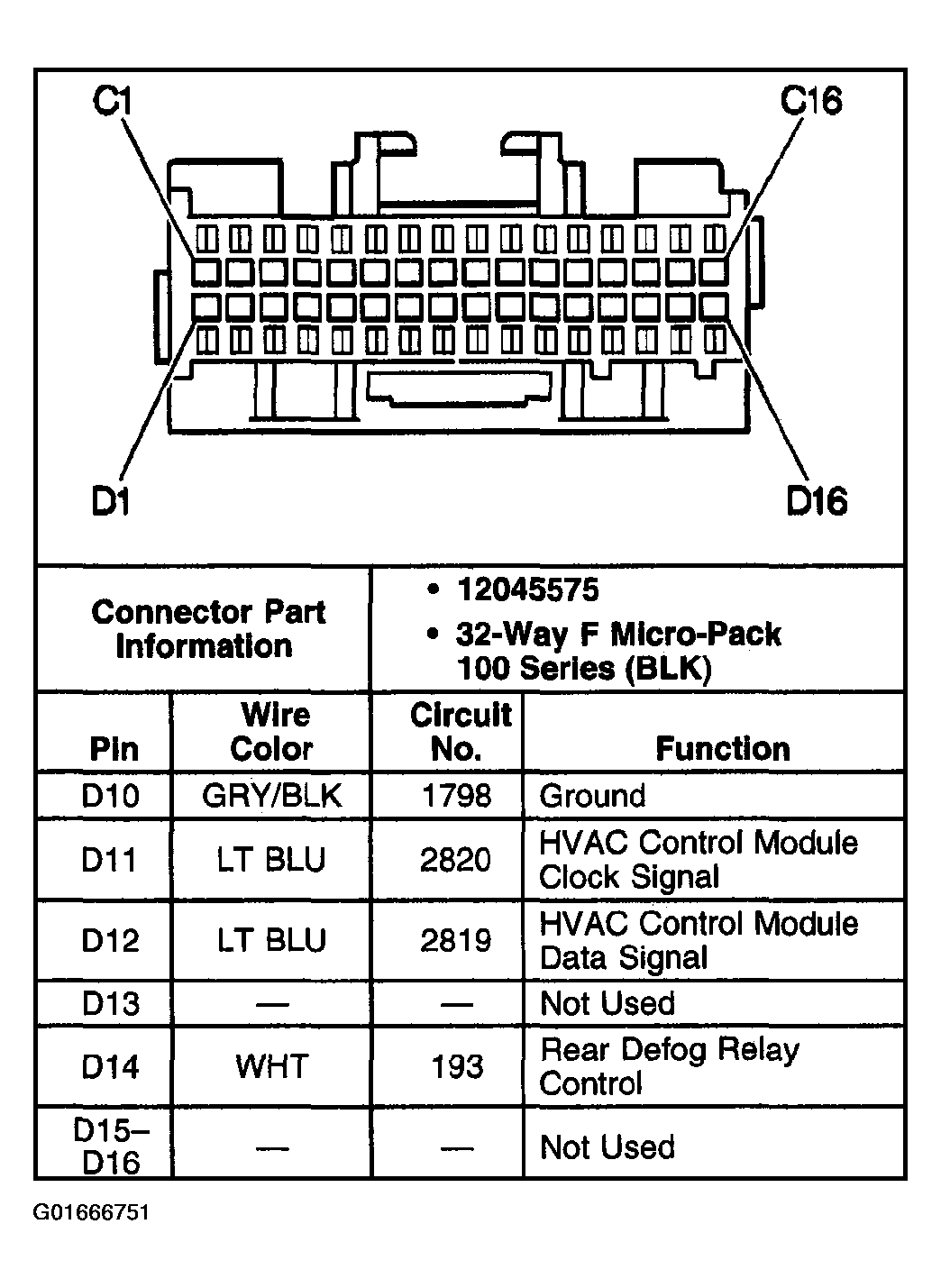

Fig 14: Identifying HVAC Control Module Connector Terminals (2 Of 2)

G01666751

Courtesy of GENERAL MOTORS CORP.

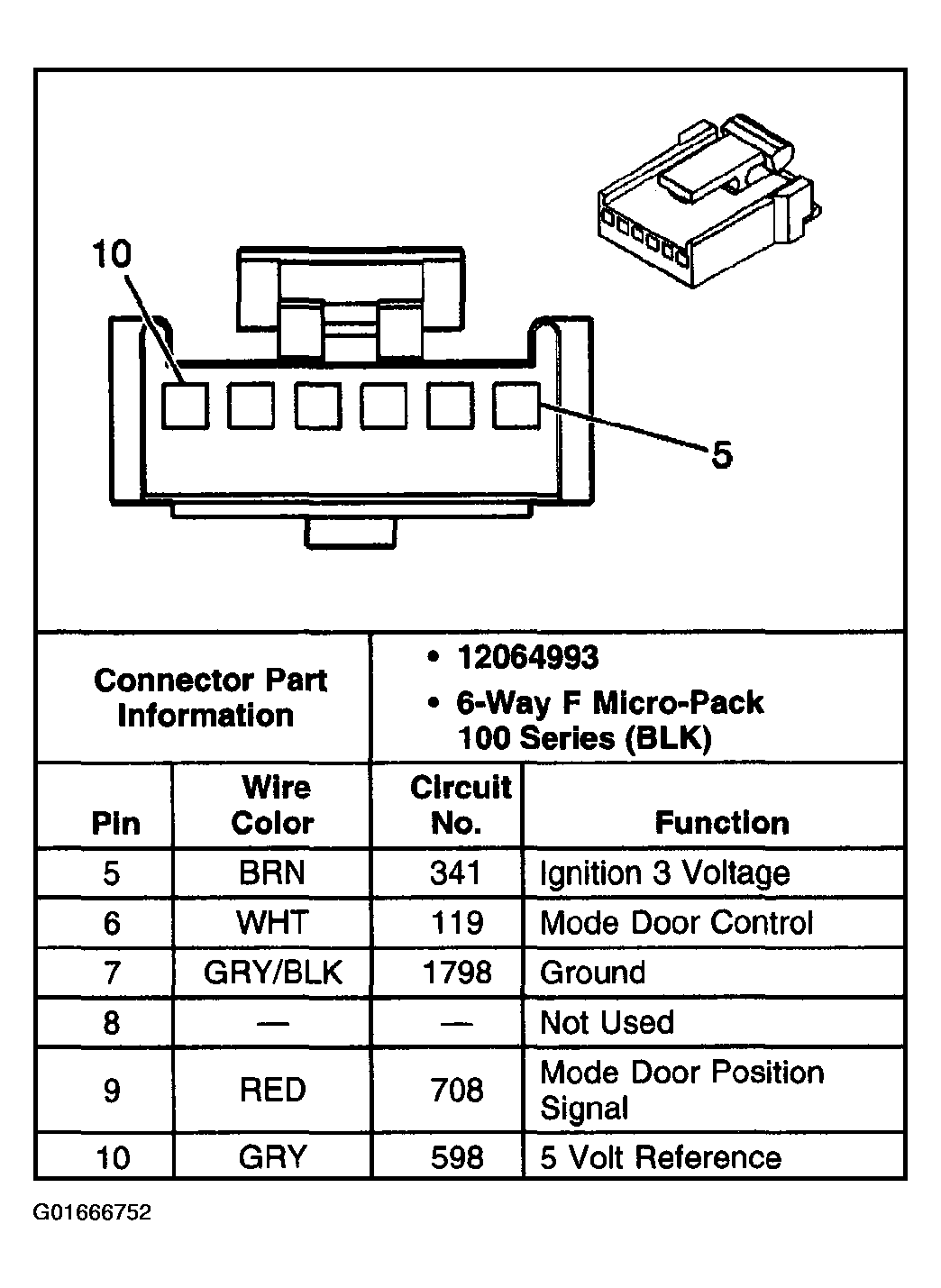

Fig 15: Identifying Mode Actuator Connector Terminals

G01666752

Courtesy of GENERAL MOTORS CORP.

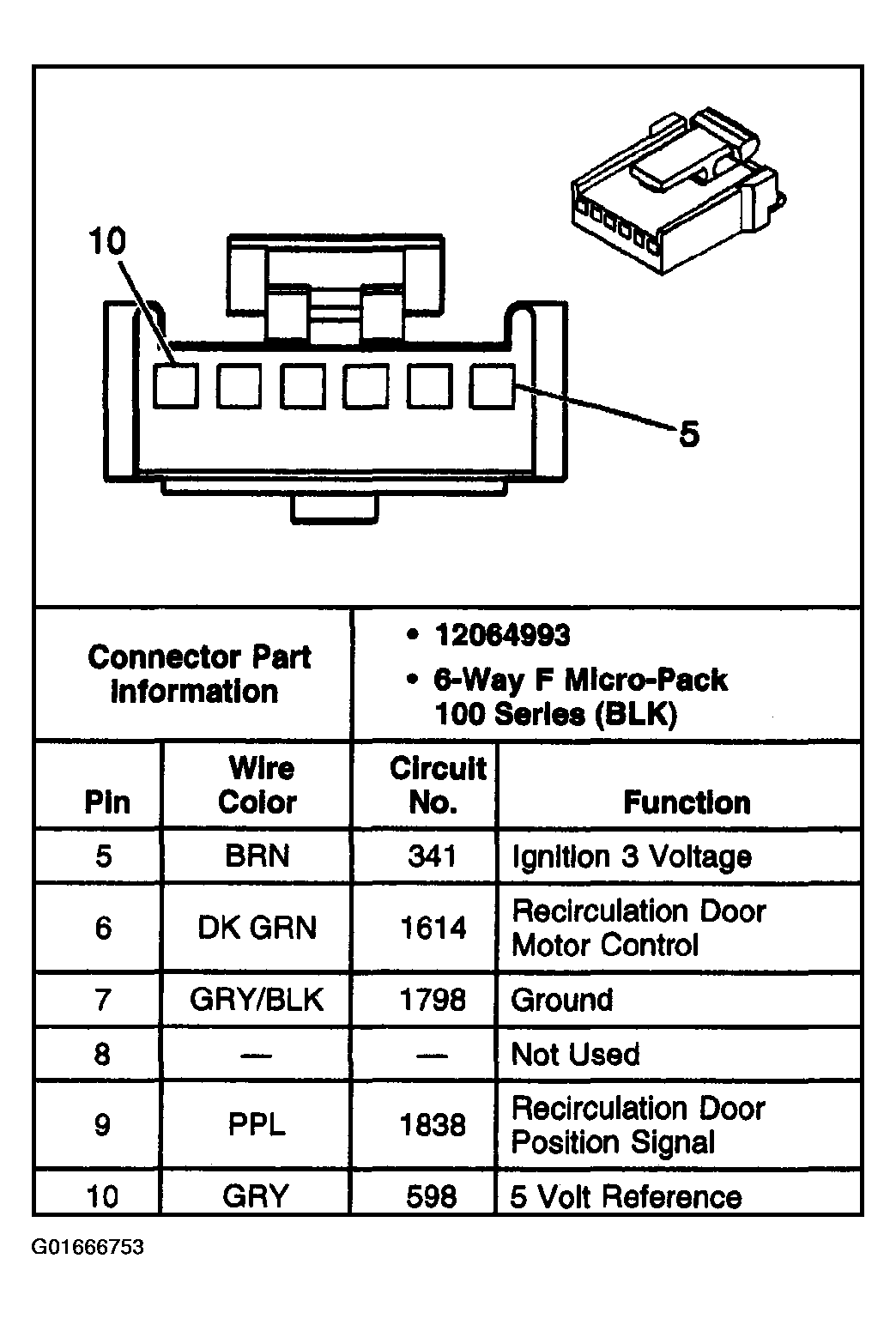

Fig 16: Identifying Recirculation Actuator Connector Terminals

G01666753

Courtesy of GENERAL MOTORS CORP.

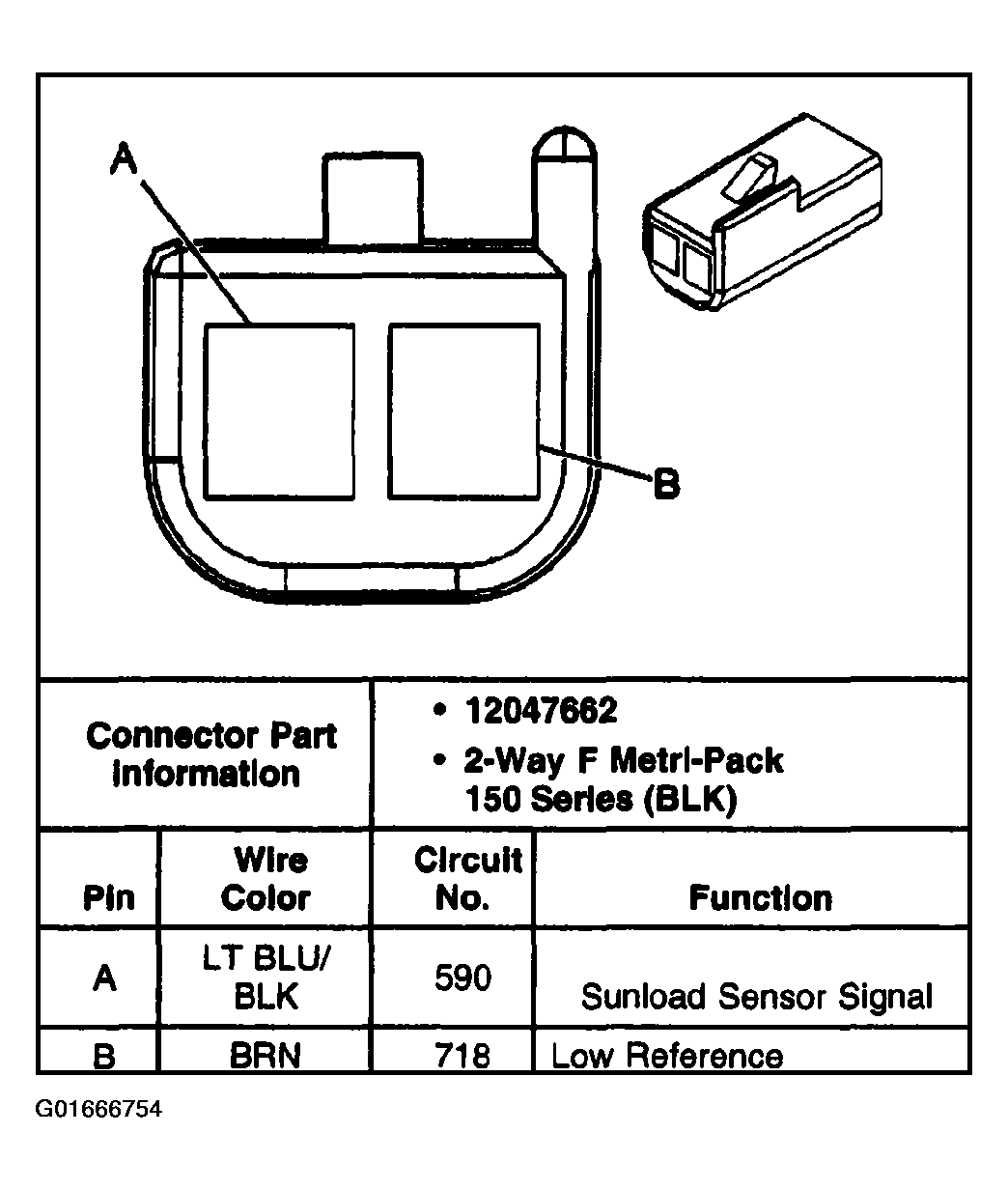

Fig 17: Identifying Sunload Sensor Connector Terminals

G01666754

Courtesy of GENERAL MOTORS CORP.
