Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

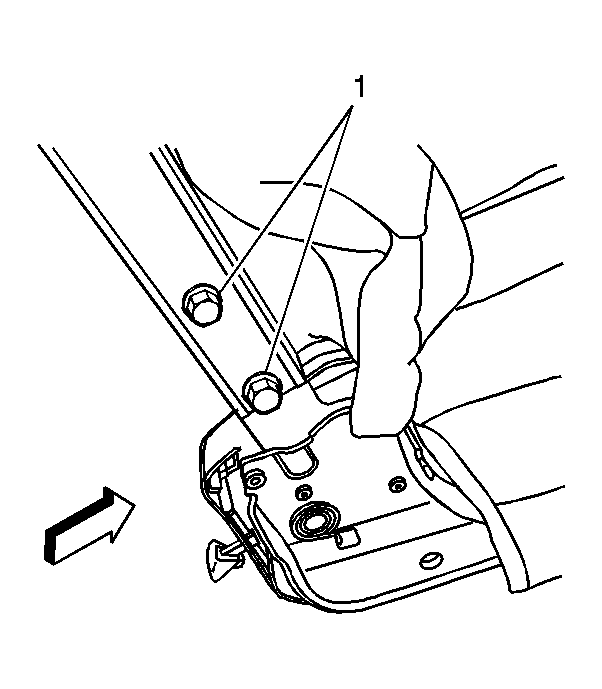

    Fig 1: Rear Seat Back Frame (Bench)
    GM841683Courtesy of GENERAL MOTORS CORP.
  1. Install the seat back frame.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts (1) and retain the seat back frame to the hinge assembly.

    Tighten:  Tighten the bolts to 53 N.m (39 lb ft).

  3. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear (60/40 - 50/50 Split)  or Seat Back Cover and Pad Replacement - Rear (Bench) .
