Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining & Filling Cooling System
  2. Reposition the inlet hose clamp from the radiator.
  3. Remove the inlet hose from the radiator.
  4. Reposition the outlet hose clamp from the radiator.
  5. Remove the radiator outlet hose from the radiator.
  6. Remove the lower fan shroud. Refer to Fan Shroud Replacement - Lower .

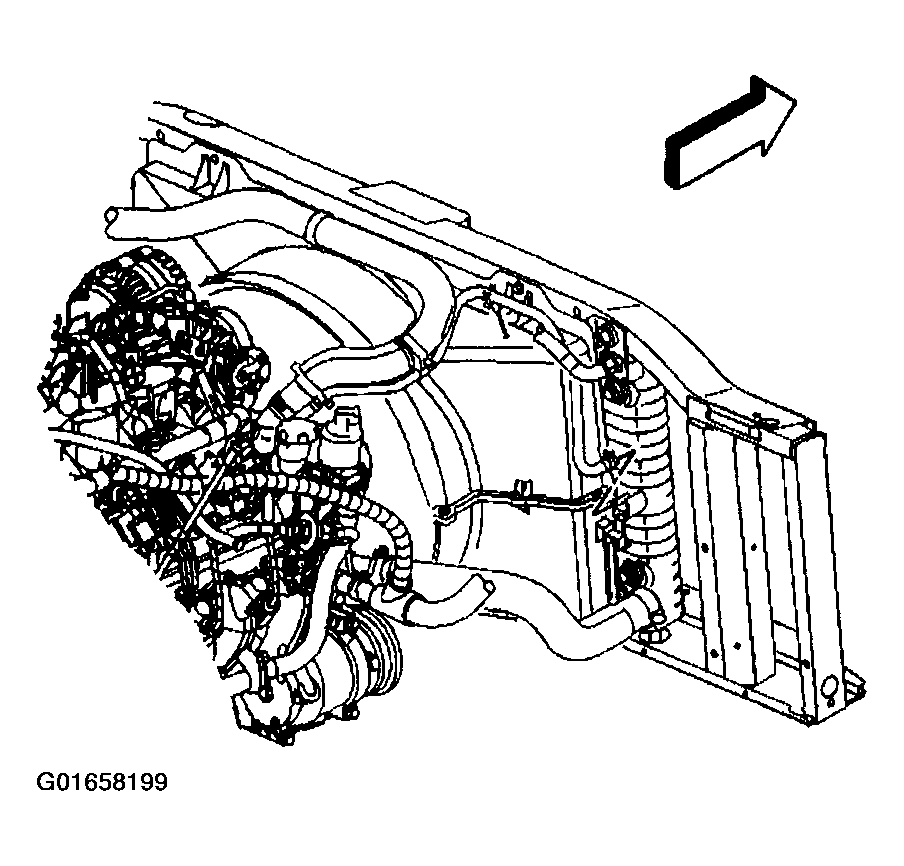

    Fig 1: Lower Fan Shroud
    G01658199Courtesy of GENERAL MOTORS CORP.
  7. Reposition the radiator vent inlet hose clamp from the radiator.
  8. Remove the vent inlet hose from the radiator.
  9. Remove the engine oil cooler lines from the radiator.
  10. Remove the transmission oil cooler lines from the radiator.

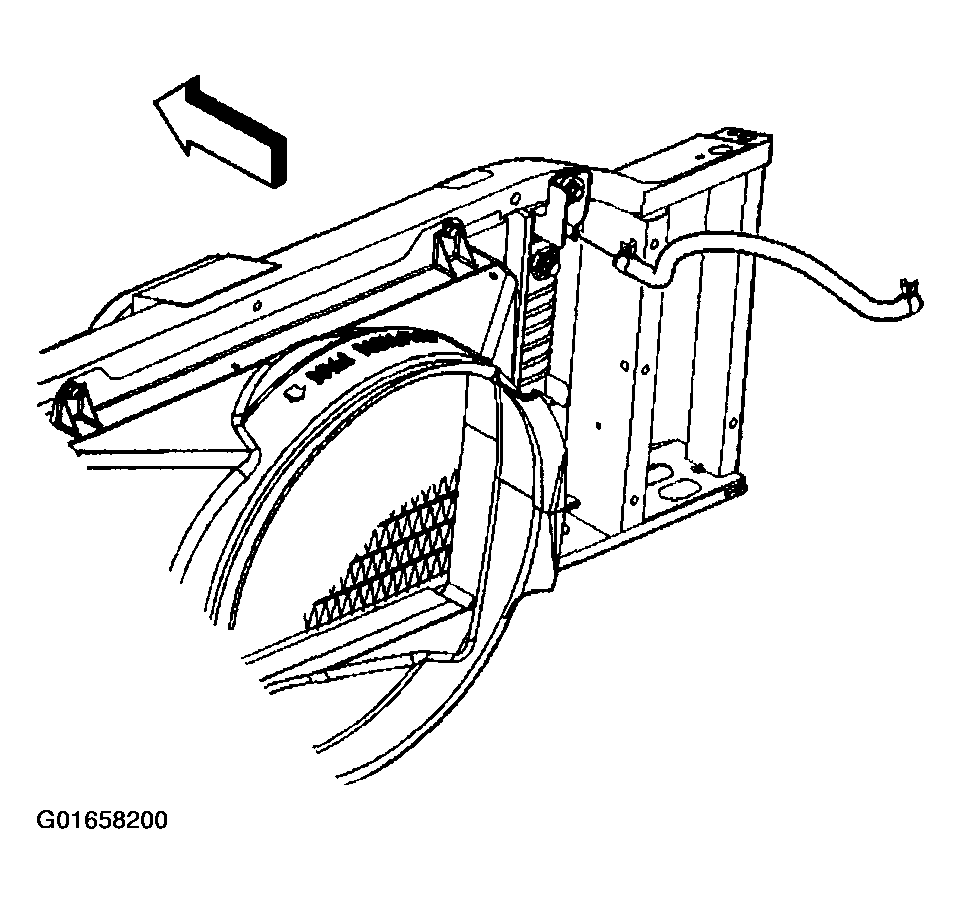

    Fig 2: Transmission Oil Cooler Lines At Radiator
    G01658200Courtesy of GENERAL MOTORS CORP.
  11. Remove the radiator bolts.
  12. Remove the radiator from the vehicle.
