Theft Deterrent System Connector End Views

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

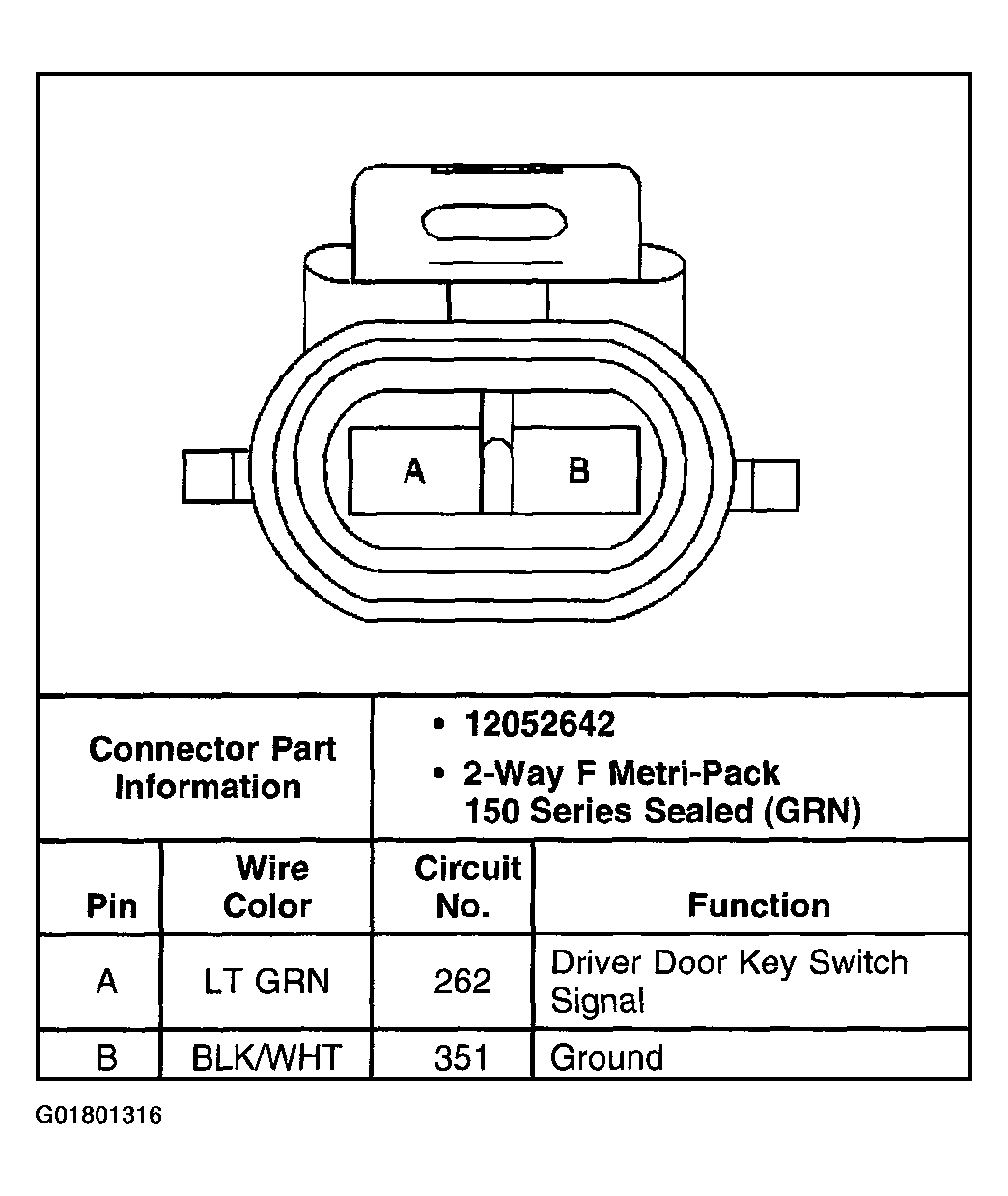

Fig 1: Door Lock Cylinder Switch - Driver

Courtesy of GENERAL MOTORS CORP.

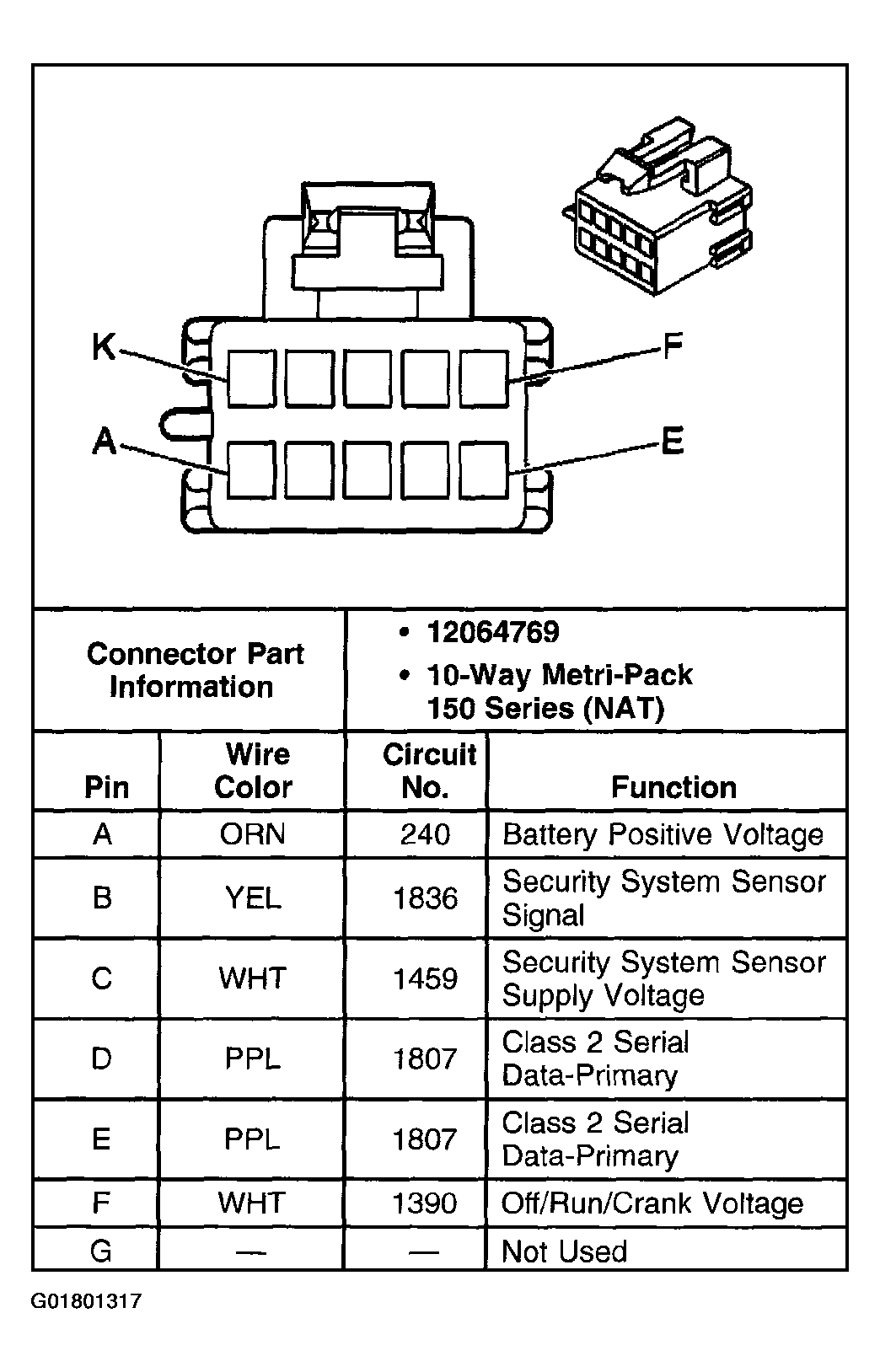

Fig 2: Theft Deterrent Control Module (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

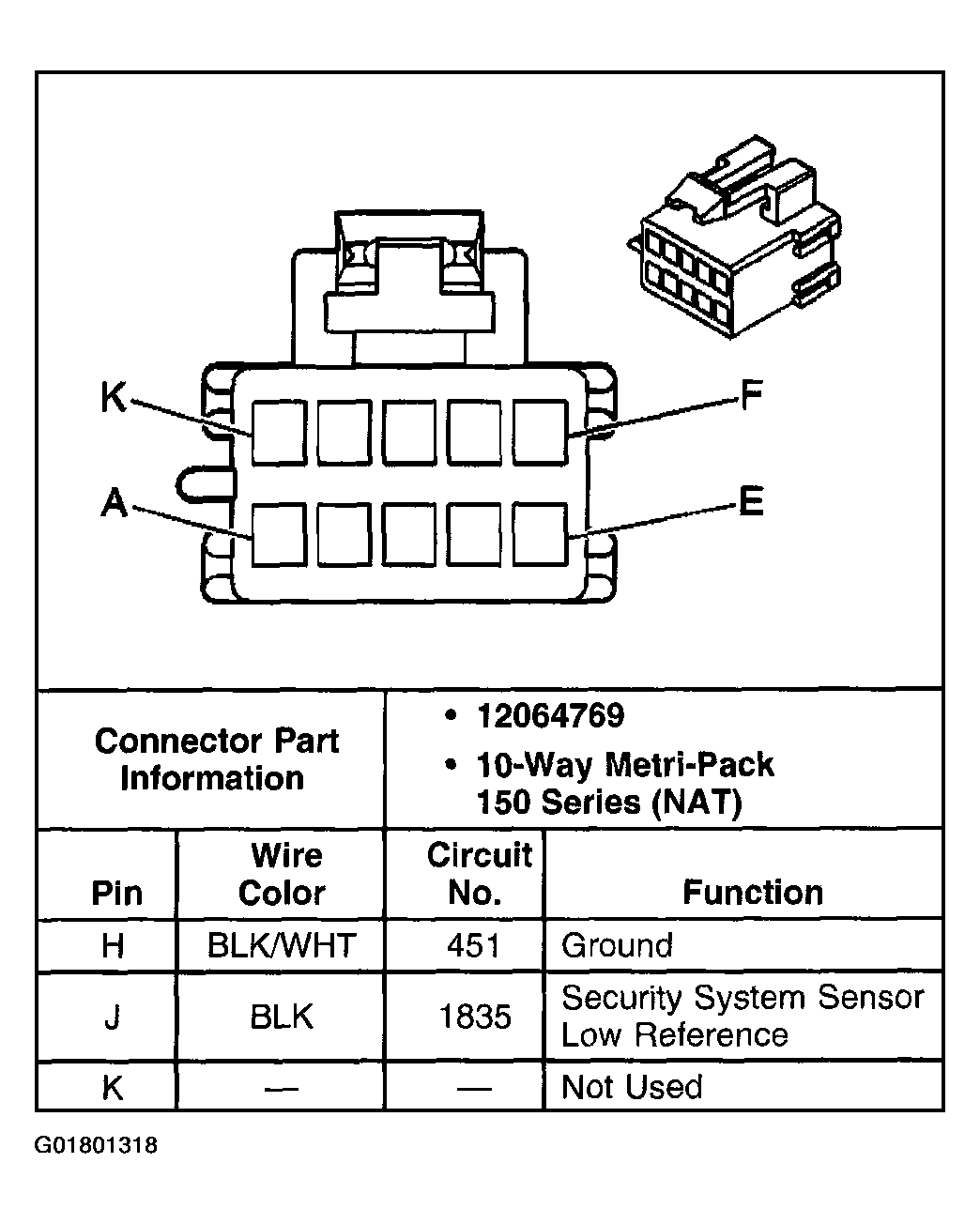

Fig 3: Theft Deterrent Control Module (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

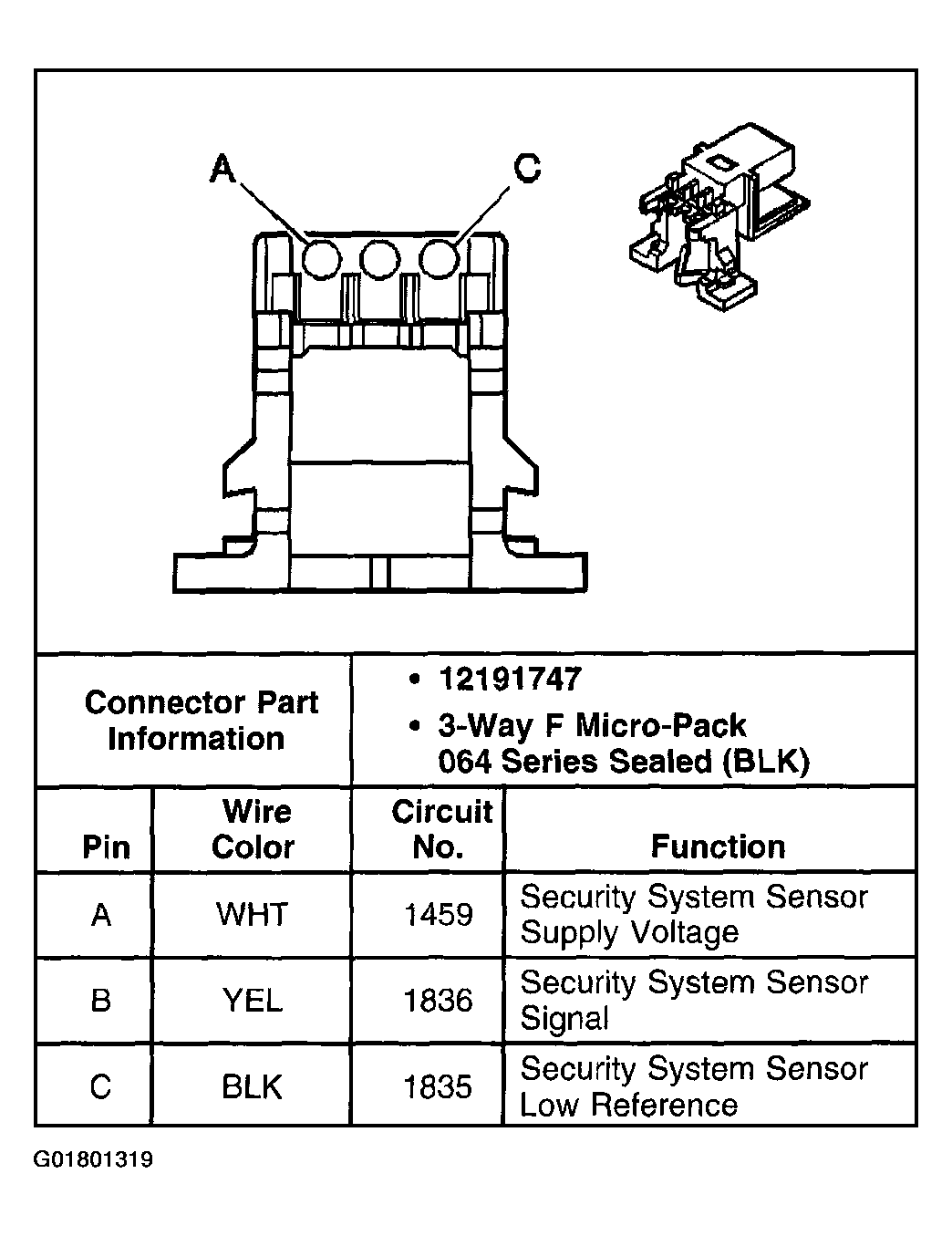

Fig 4: Theft Deterrent Exciter Module

Courtesy of GENERAL MOTORS CORP.
