Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the battery tray screws. Tighten the battery tray screws to 5 N.m (44 lb in).

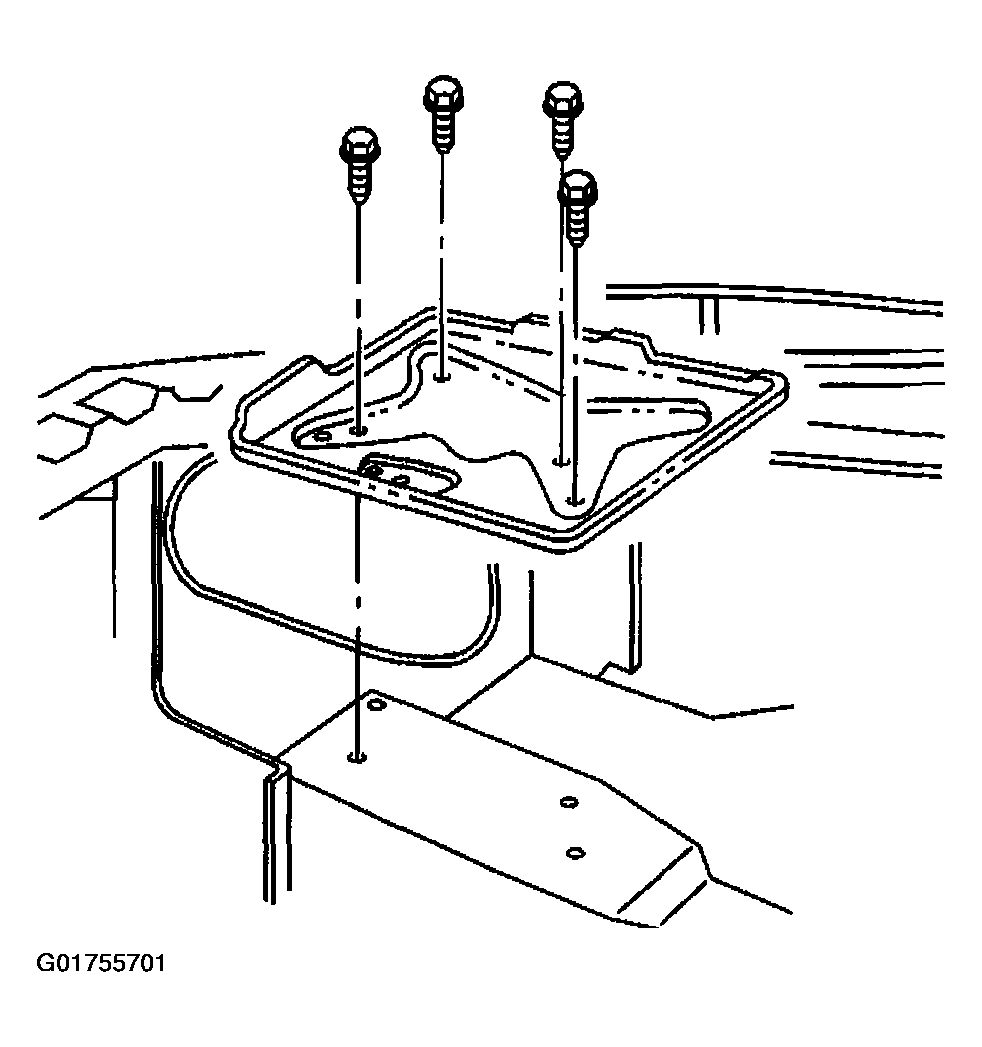

    3. Fig 1: Identifying Battery Tray
    G01755701Courtesy of GENERAL MOTORS CORP.
  3. Install the battery. Refer to BATTERY REPLACEMENT .
