Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender liner to the wheelhouse opening over the stud.

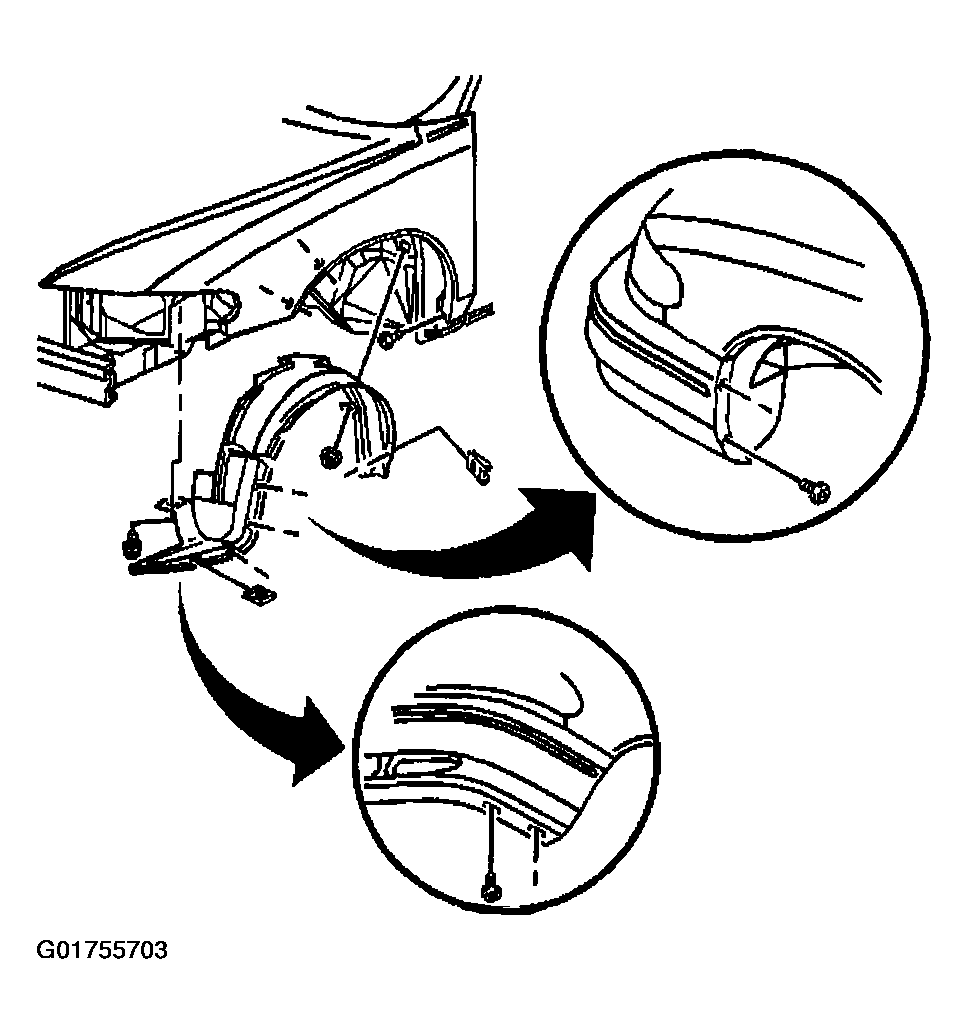

    Fig 1: Identifying Front Fender Liner
    G01755703Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the nut to the stud at the rear of the front fender liner. Tighten the nut to 4 N.m (35 lb in).
  3. Install the bolts to the front fender liner at the front bumper fascia. Tighten the bolts to 2 N.m (18 lb in).
  4. Install the bolts to the front fender liner at the rear of the fender. Tighten the bolts to 7 N.m (61 lb in).
  5. Install the bolt from the front tab of the front fender liner at the lower engine compartment side rail. Tighten the bolts to 4.5 N.m (40 lb in).
