Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-in retainers that hold the ABS lead to the engine splash shield.

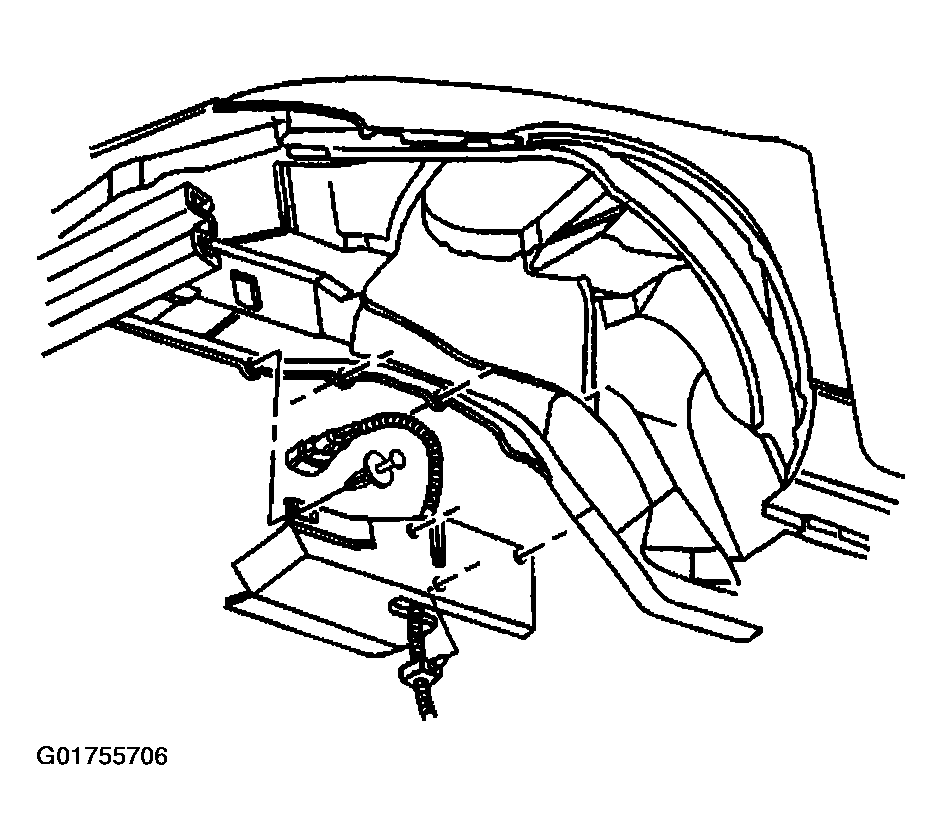

    2. Fig 1: Identifying Driver's Side Engine Splash Shield
    G01755706Courtesy of GENERAL MOTORS CORP.

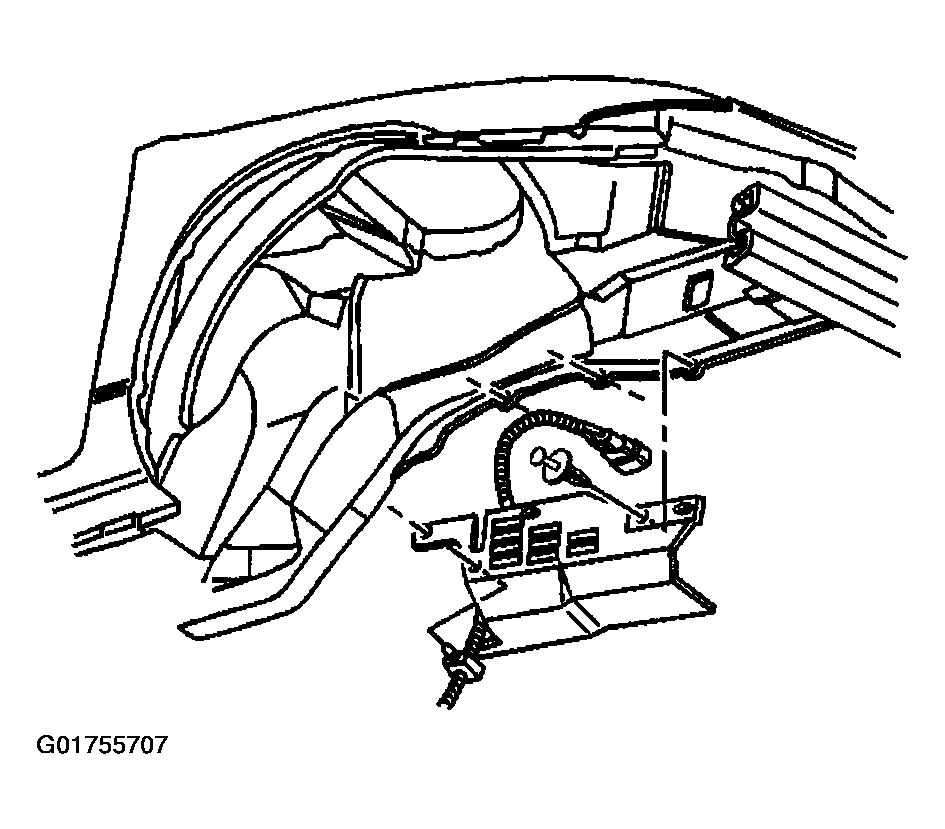

    Fig 2: Identifying Passenger's Side Engine Splash Shield
    G01755707Courtesy of GENERAL MOTORS CORP.
  2. Use the J 38778  in order to remove the push-in retainers from the engine splash shield.
  3. Remove the engine splash shield from the lower flange of the engine compartment side rail.
