Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do not disconnect the electrical connectors.

Remove and move the console end panel rearwards. Refer to CENTER CONSOLE END PANEL REPLACEMENT .
Press on the tabs (1) in order to remove the lamp assembly from the end panel.

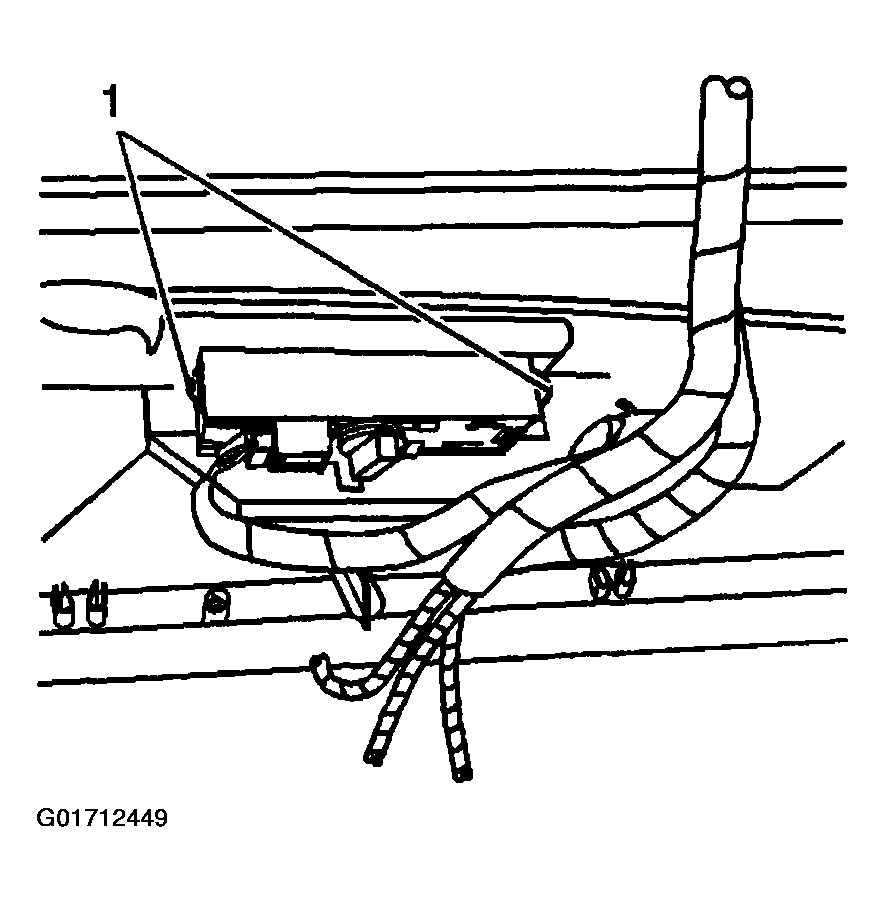

Fig 1: Locating Console Lamp

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connector.
To replace the bulb turn counter clockwise to remove.
