Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster bezel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
  2. Unsnap the switch from the housing.

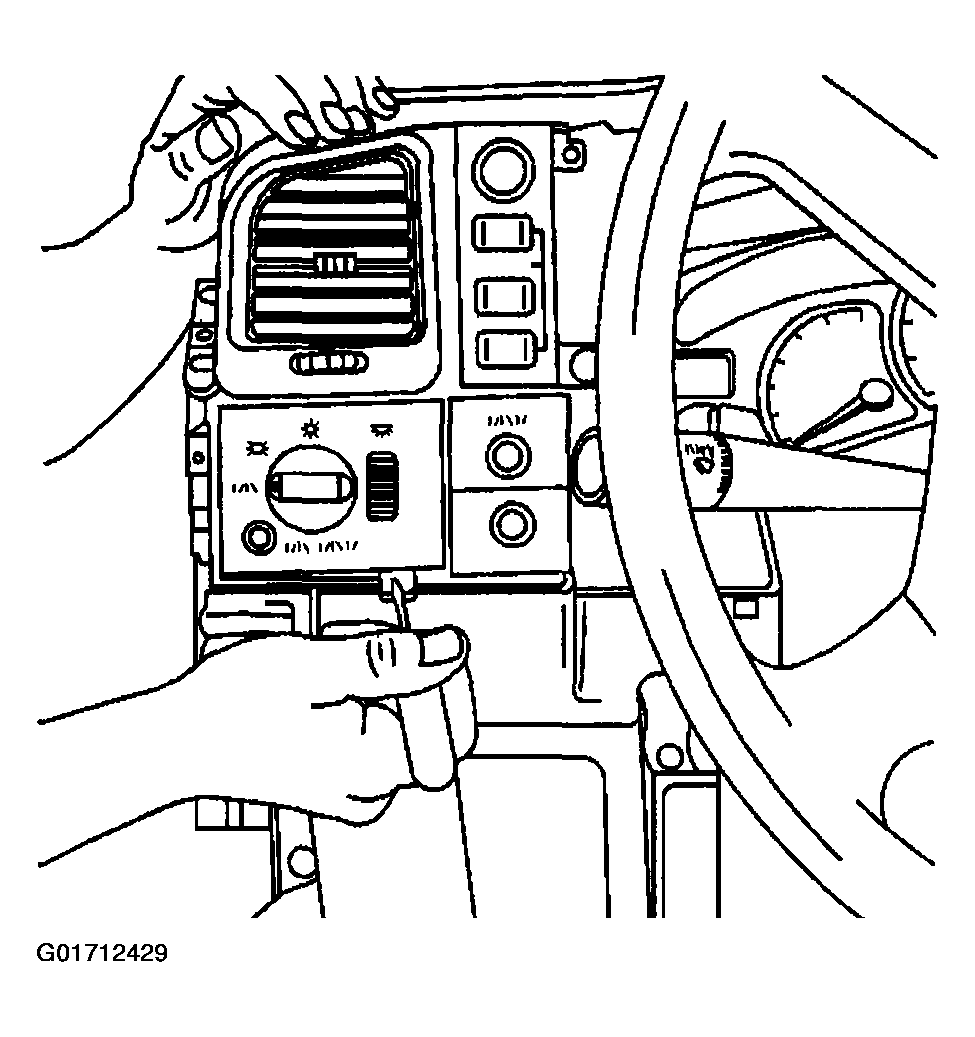

    3. Fig 1: Removing Headlamp Switch From Housing
    G01712429Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connectors.
  4. Remove the switch.

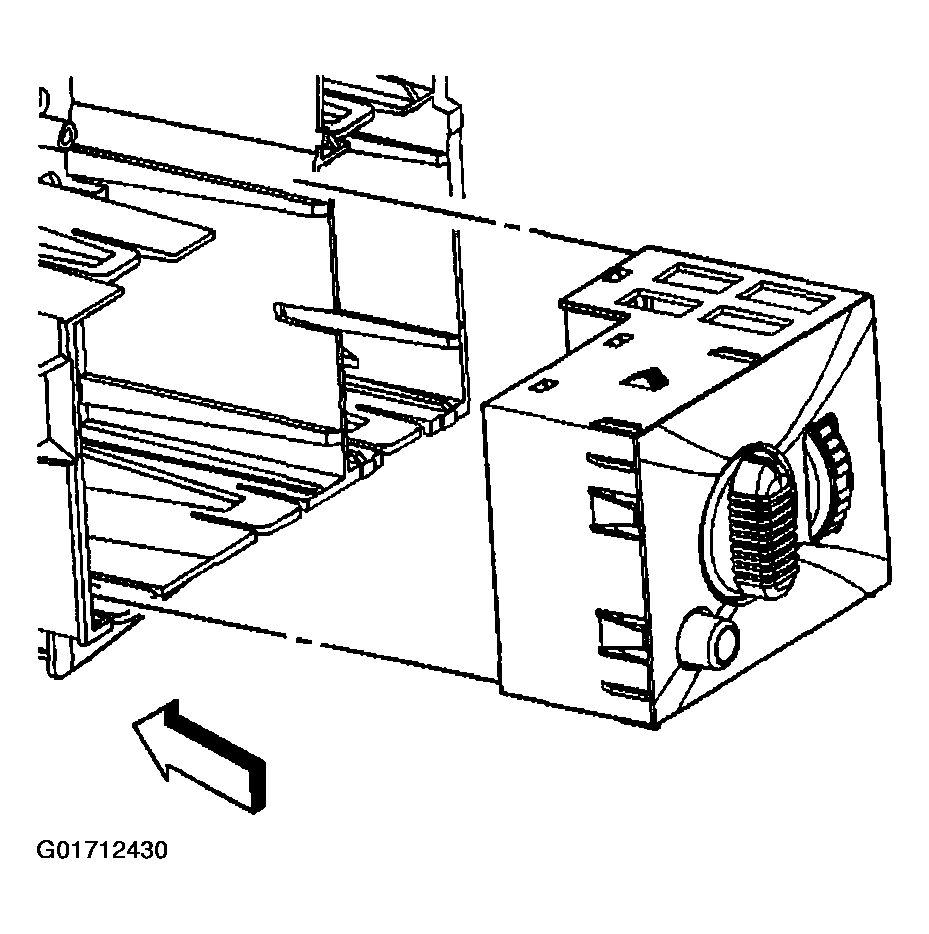

    Fig 2: Headlamp Switch
    G01712430Courtesy of GENERAL MOTORS CORP.
