Removal Procedure
WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Important: The cruise control cable does not require mechanical adjusting after replacement. The cruise control module internally adjusts the cable. Refer to Cruise Control Description & Operation (Without ETC) , Cruise Control Description & Operation (With ETC) or Cruise Control Description & Operation (Diesel) for the complete operational details.

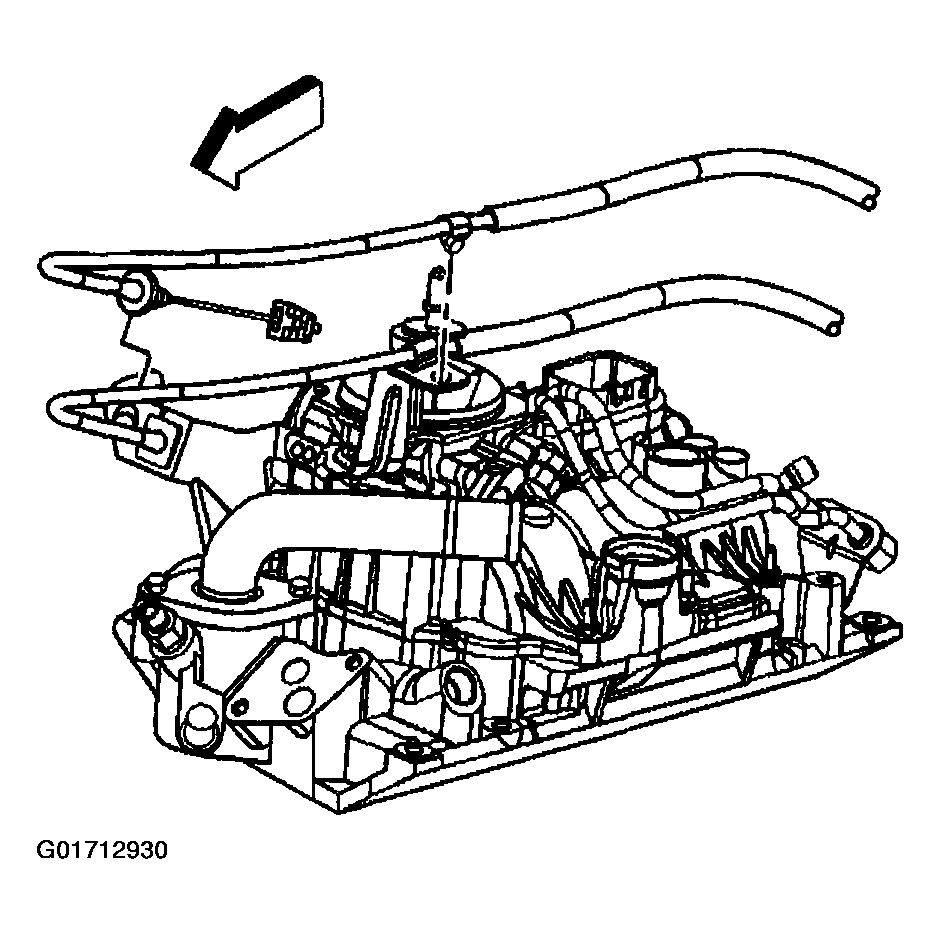

- Disconnect the cruise control cable locator clip from the outboard rectangular hole in the routing bracket at the left front corner of the engine.
- Disconnect the cruise control cable conduit fitting from the round hole in the engine cable bracket.
- Disconnect the cruise control cable engine-end fitting from the stud on the throttle lever.
- Disconnect the cruise control cable fitting from the cruise control module.
- Disconnect the cruise control cable bead from the fitting on the cruise control module ribbon.
- Remove the cruise control cable from the vehicle.
