Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a flat-bladed tool into the slots on the power accessory switch panel in order to release the retainer clips.
  2. Remove the switch panel.
  3. Disconnect the electrical connectors from the switches.
  4. Remove the screws from the switches.
  5. Remove the power accessory switches from the switch panel.

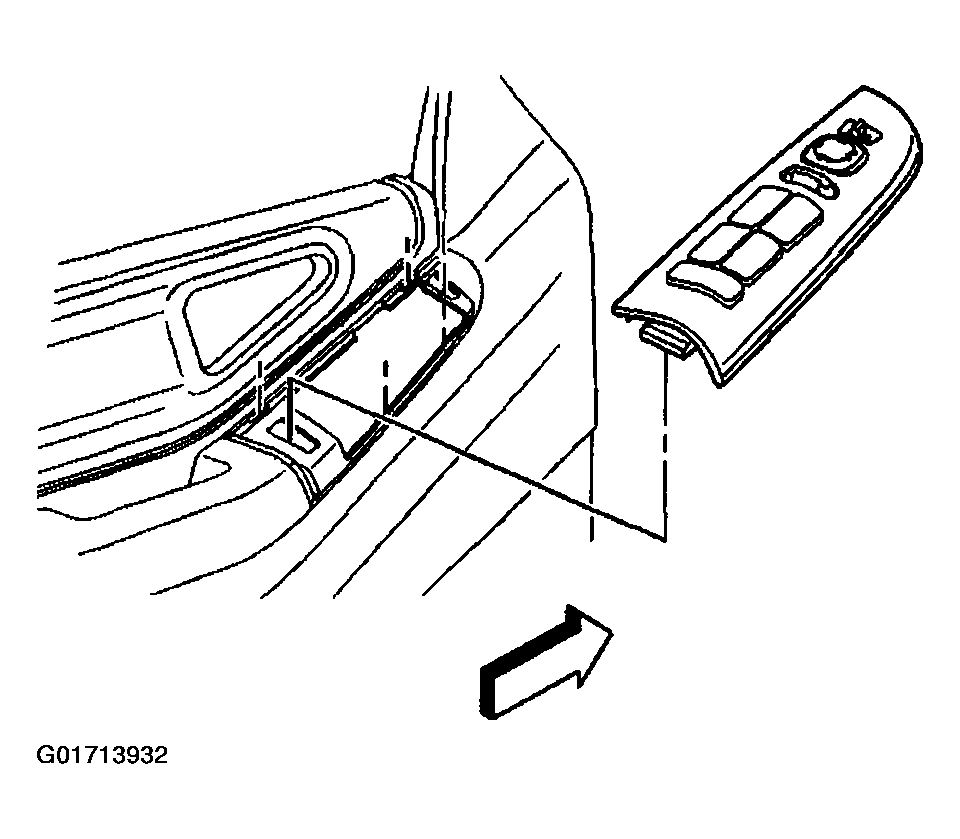

    Fig 1: Power Accessory Switch Panel
    G01713932Courtesy of GENERAL MOTORS CORP.
