Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
- Install the battery negative cable to the vehicle.
CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

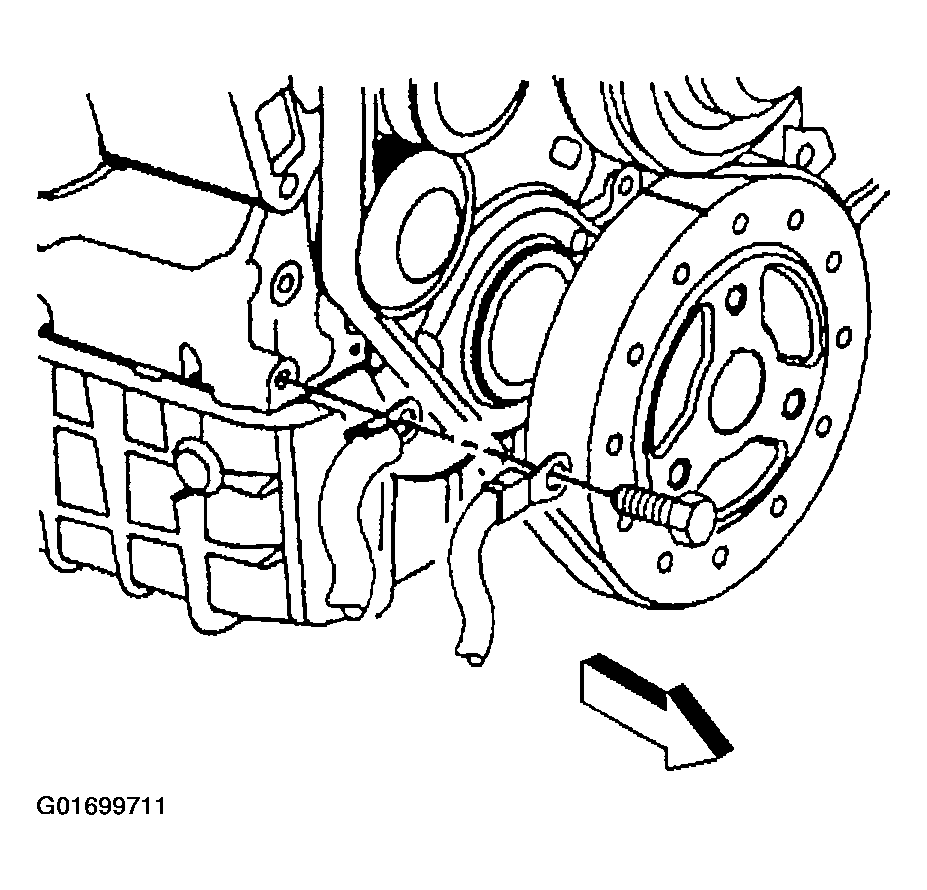

- Connect the battery negative cable lead to the engine block.
Tighten
Tighten the bolt that retains the battery negative cable lead to the engine block to 25 N.m (18 lb ft).

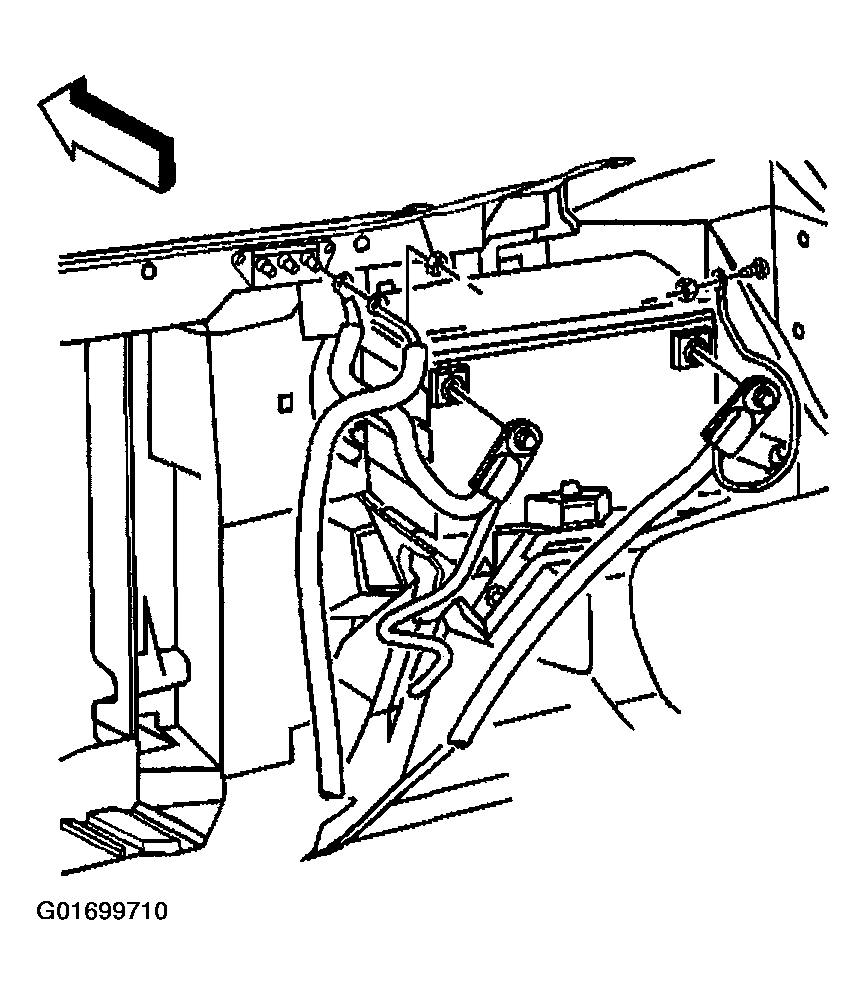

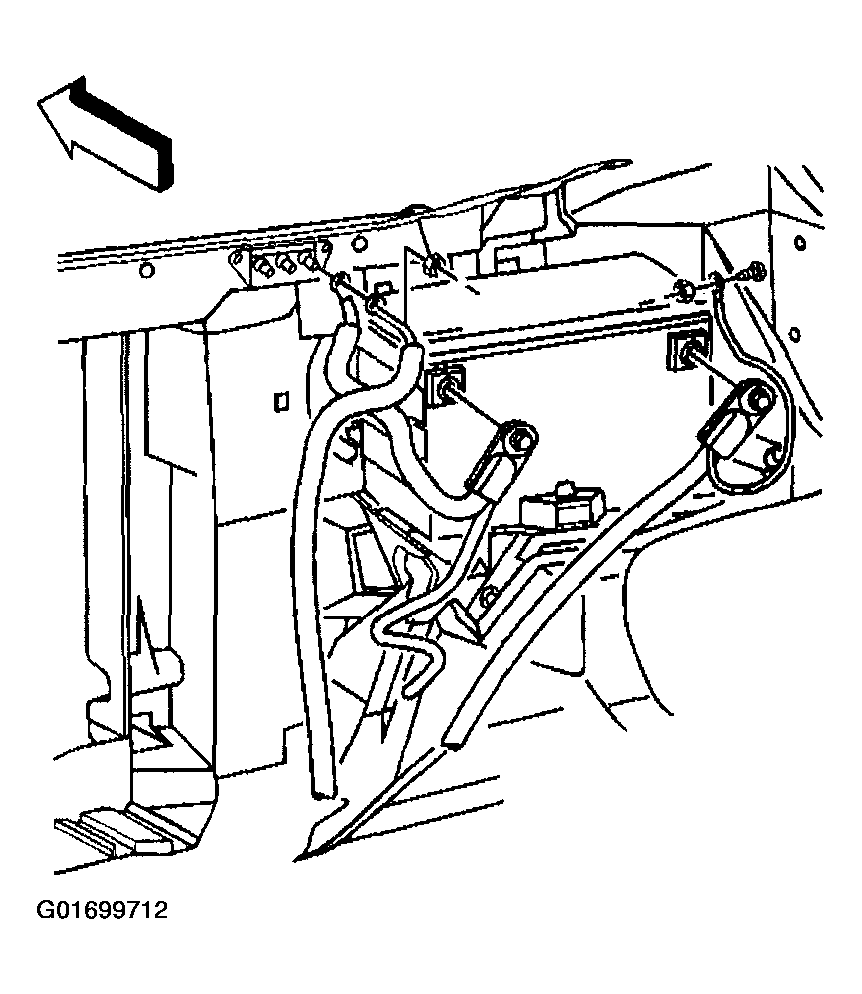

- Connect the battery negative cable lead to the inner fender panel.
Tighten
Tighten the nut that retains the battery negative cable to the inner fender well to 10 N.m (89 lb in).
- Connect the battery negative cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
Tighten
Tighten the battery negative terminal bolt to 17 N.m (13 lb ft).
