Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery into the battery carrier.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the battery hold-down retainer and bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

  3. Connect the battery positive cable and the positive battery cable terminal to the battery. Refer to Battery Positive Cable Replacement .
  4. Connect the battery negative cable and the negative battery cable terminal to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .

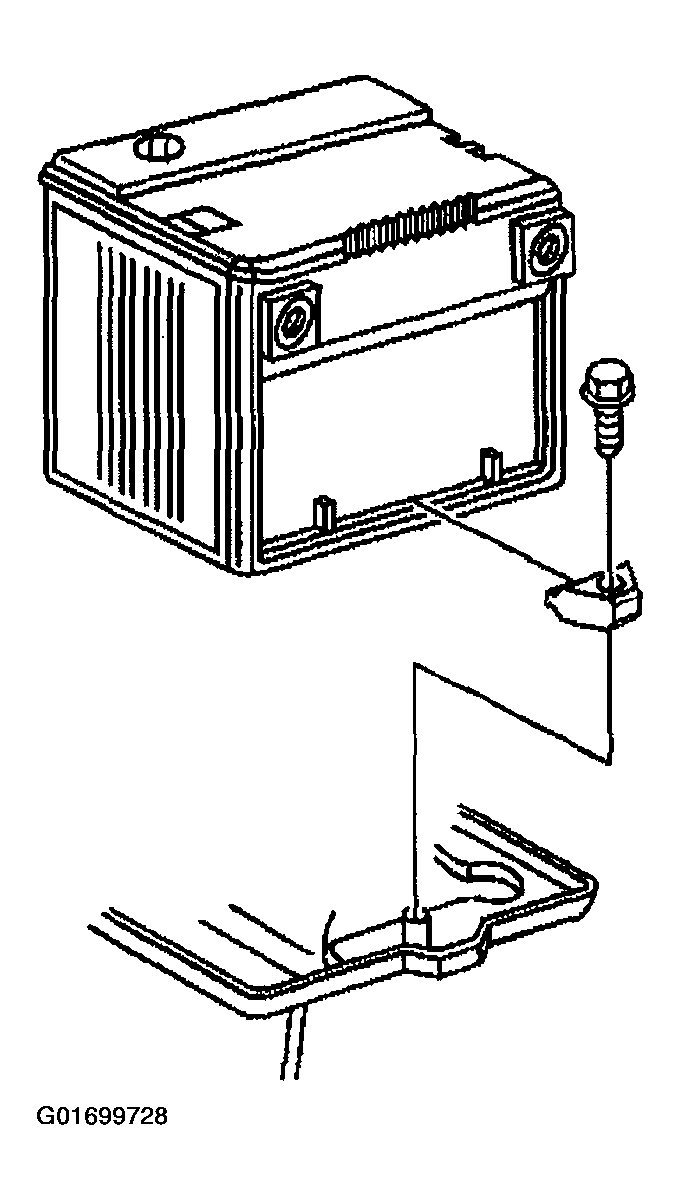

    Fig 1: Installing Battery Into Battery Carrier
    G01699728Courtesy of GENERAL MOTORS CORP.
