Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the roof rail assist handle (2) with the backing plate.
  2. Install the roof rail assist handle (2) to the headliner (1).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the roof rail assist handle screws.

    Tighten

    Tighten the screws to 1 N.m (9 lb in).

  4. Install the escutcheon covers (3) to the roof rail assist handle (2).

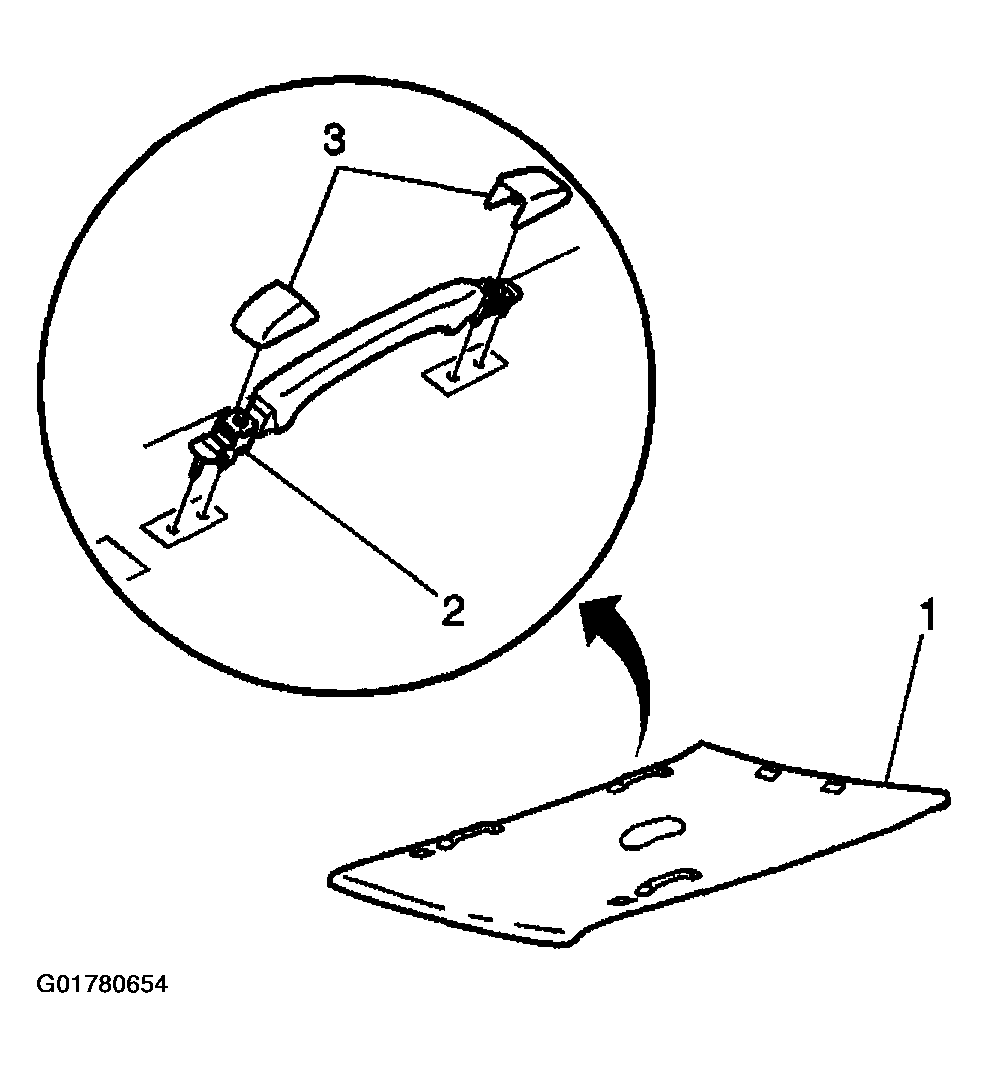

    Fig 1: Installing Assist Handle
    G01780654Courtesy of GENERAL MOTORS CORP.
