Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Position the fog lamp (2) to the vehicle.
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Install the fog lamp mounting bolts (1).
Tighten

Tighten the bolts to 2 N.m (18 lb in).

Fig 1: Installing Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Install the fog lamp bulb/socket (1) to the fog lamp by rotating clockwise.
Install the wheelhouse splash shield. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.

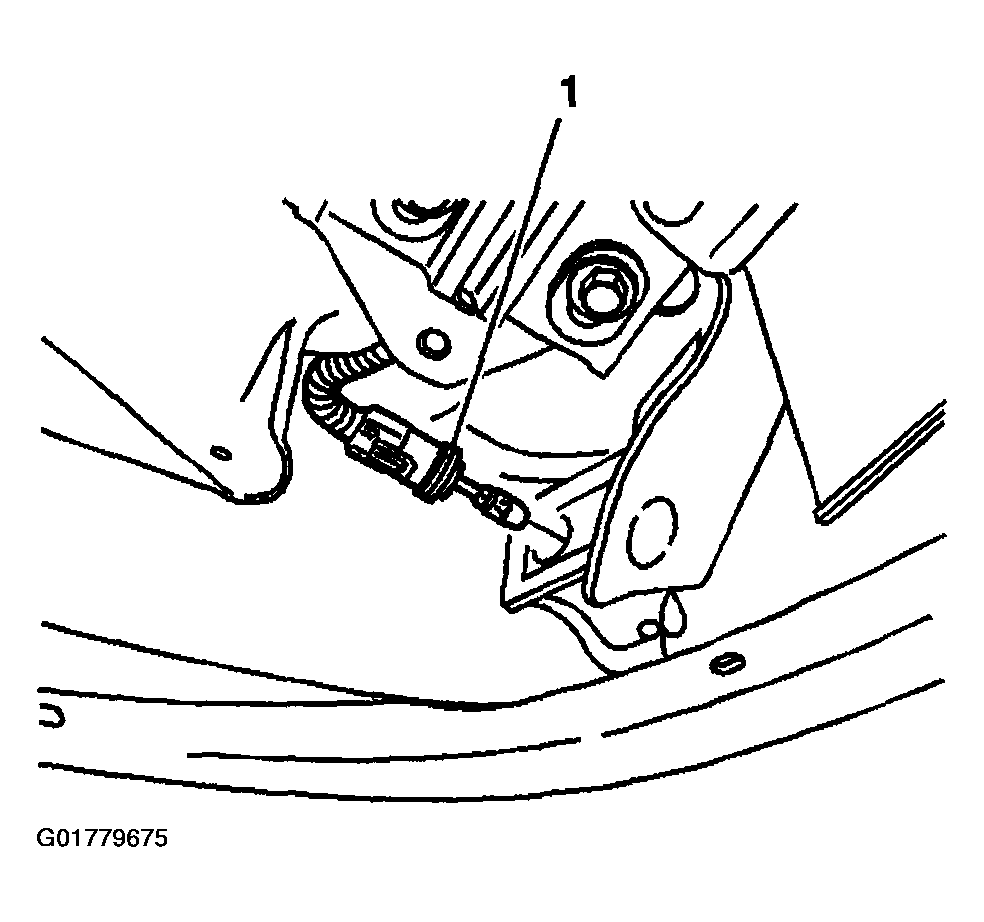

Fig 2: Installing Fog Lamp Bulb/Socket
Courtesy of GENERAL MOTORS CORP.
