Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the socket, if required.
Install the bulb/socket to the license lamp.
Rotate the bulb/socket clockwise until fully seated.
Position the license lamp (1) to the rear bumper fascia.
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Install the license lamp screws (3) to the license lamp.
Tighten

Tighten the screws to 2 N.m (18 lb in).

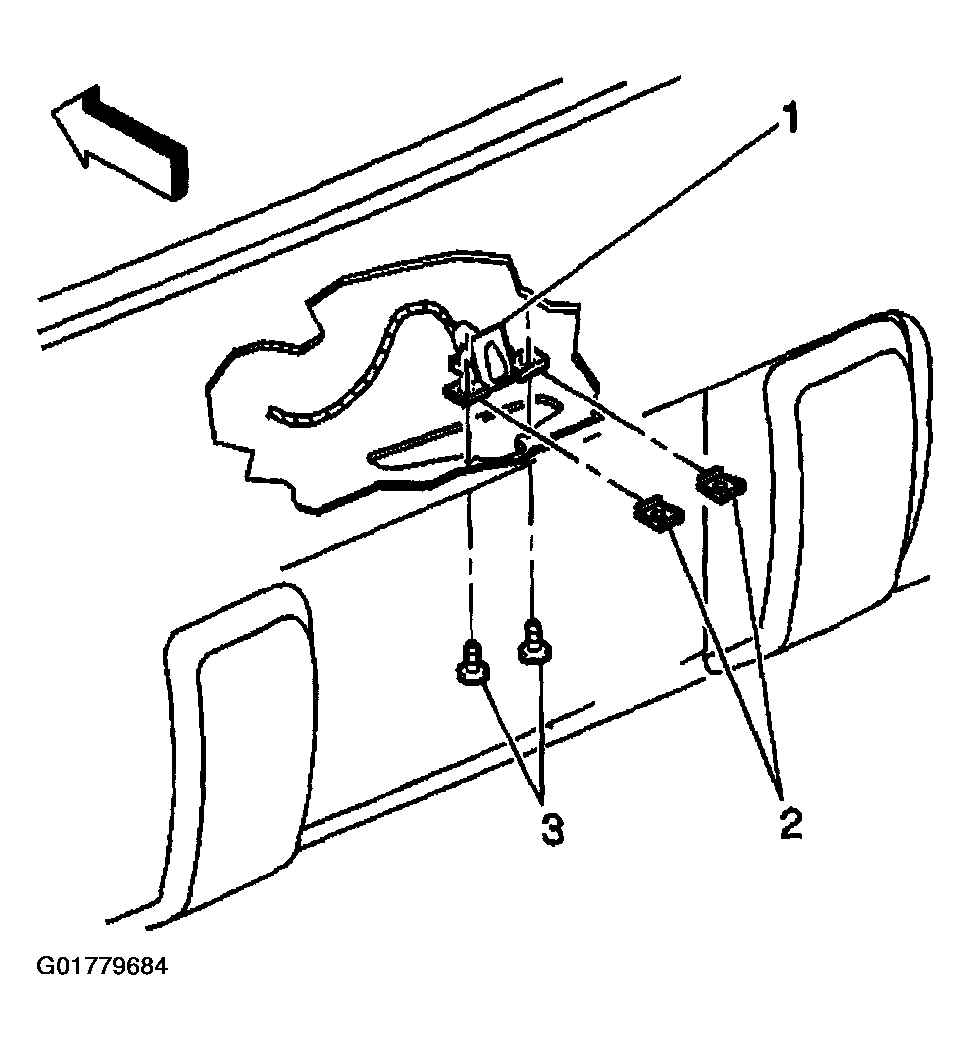

Fig 1: Installing License Lamp
Courtesy of GENERAL MOTORS CORP.
